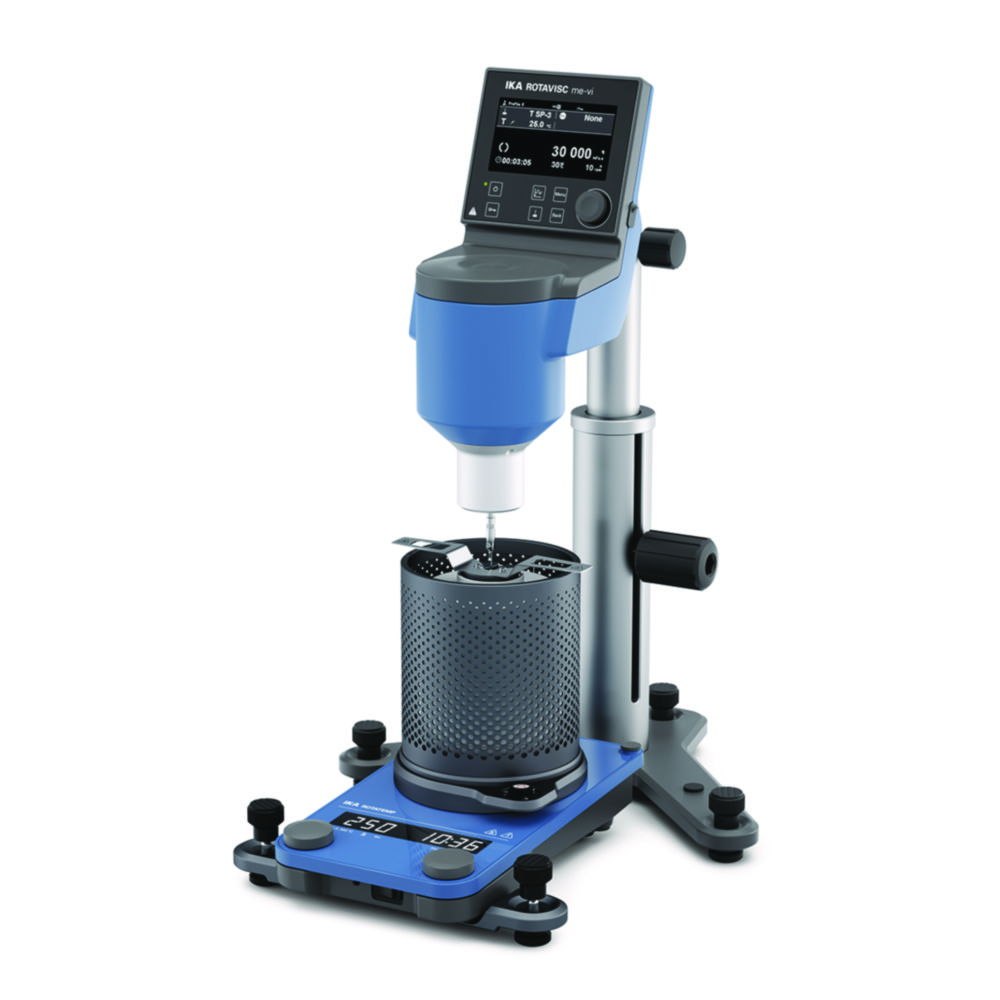

Rotational viscometers ROTATEMP me-vi Package
Scope of supply: Viscometer, stand ROTASTAND, high-performance temperature system ROTATEMP, spindles SP set-2, temperature sensor PT 100.8
Toote variatsioonid
| Interfaces | IP code | Max. speed | Max. temperature | Max. voltage | Min. speed | Min. voltage | Catalog number | Plug type | Reproducibility | Type | PK | Max. torque | Max. Viscosity | Min. viscosity | Power supply | Speed | Temperature | Torque | Viscosity | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RS 232, USB | IP 40 | 200 1/min | 300 °C | 240 V | 0.01 1/min | 100 V | 4.700 005 | EU | 2 % | ROTATEMP me-vi | 1.00 | 0.7187 mNm | 40000000 mPa·s | 100 mPa·s | 100 ... 240 V, 50/60 Hz | 0.01 ... 200 1/min | 300 °C | 0.7187 mNm | 100 ... 40000000 mPa·s | ||
| RS 232, USB | IP 40 | 200 1/min | 300 °C | 240 V | 0.01 1/min | 100 V | 4.700 019 | CH | 2 % | ROTATEMP me-vi | 1.00 | 0.7187 mNm | 40000000 mPa·s | 100 mPa·s | 100 ... 240 V, 50/60 Hz | 0.01 ... 200 1/min | 300 °C | 0.7187 mNm | 100 ... 40000000 mPa·s | ||
| RS 232, USB | IP 40 | 200 1/min | 300 °C | 240 V | 0.01 1/min | 100 V | 4.700 018 | UK | 2 % | ROTATEMP me-vi | 1.00 | 0.7187 mNm | 40000000 mPa·s | 100 mPa·s | 100 ... 240 V, 50/60 Hz | 0.01 ... 200 1/min | 300 °C | 0.7187 mNm | 100 ... 40000000 mPa·s |
