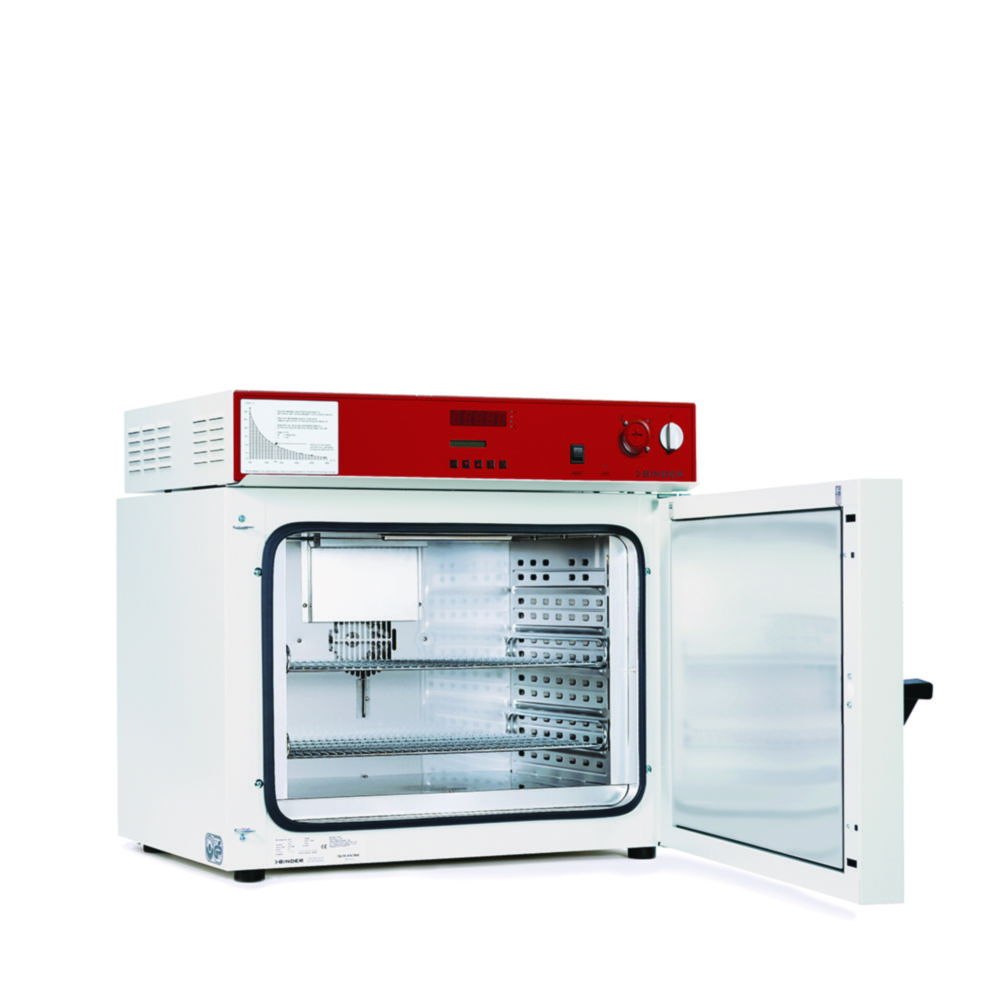

Safety drying oven FDL
A safety drying oven from BINDER ensures the perfect test result of your solvent-based paints and coatings, absolute temperature precision even with high ventilation.
- Defined solvent quantity according to EN 1539
- Electronically controlled APT.line™ preheating chamber technology
- Independent adjustable temperature safety device class 2 (DIN 12880), with visual temperature alarm
- RS 422 interface for use with APT-COM™ DataControlSystem communication software
- Fresh-air monitoring with audible and visual alarm and automatic deactivation of heating
- Controller with time-segment and real-time programming
- Easy replaceable fresh air cartridge ensures constant fresh air quality
- Standard door gasket made from solvent-resistant FKM for use at up to 200 °C
- 2 chrome-plated racks
Toote variatsioonid
| Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Catalog number | Plug type | Power supply | Rated capacity | Temperature | Temperature | Type | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 435 mm | 830 x 685 x 805 mm | 685 mm | 805 mm | 830 mm | 435 mm | 600 x 435 x 435 mm | 600 mm | 5 | 300 °C | 230 V | -10 °C | 115 l | 9.883 580 | EU | 230 V, 50...60 Hz | 2.9 kW | RT | RT+10 ... 300 °C | FDL 115 | 90 kg | 1.00 |
