Safety Storage Cabinets K-PHOENIX-90
Combined and unrestricted storage of flammable and aggressive hazardous materials in working areas in accordance with EN 14470-1
- Tall cupboard with hinged and folding doors with door hold-open
- type-tested in accordance with EN 14470-1
- fire resistance of 90 minutes (type 90)
- GS-tested
- two in one: 2 compartments (vertically separated) allow the storage of flammable liquids and aggressive chemicals in one cabinet
- robust construction and longevity: body made of powder – coated sheet steel, safety elements assembled outside the cabinet for increased protection against corrosion
- user-friendly and safe (folding door compartment): door open arrest system (standard), convenient and safe removal or storage of containers
- no unauthorised use: doors lockable with profile cylinder (integration in an existing locking system possible)
- easy alignment: adjusting aids to compensate for uneven floor
- ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust system

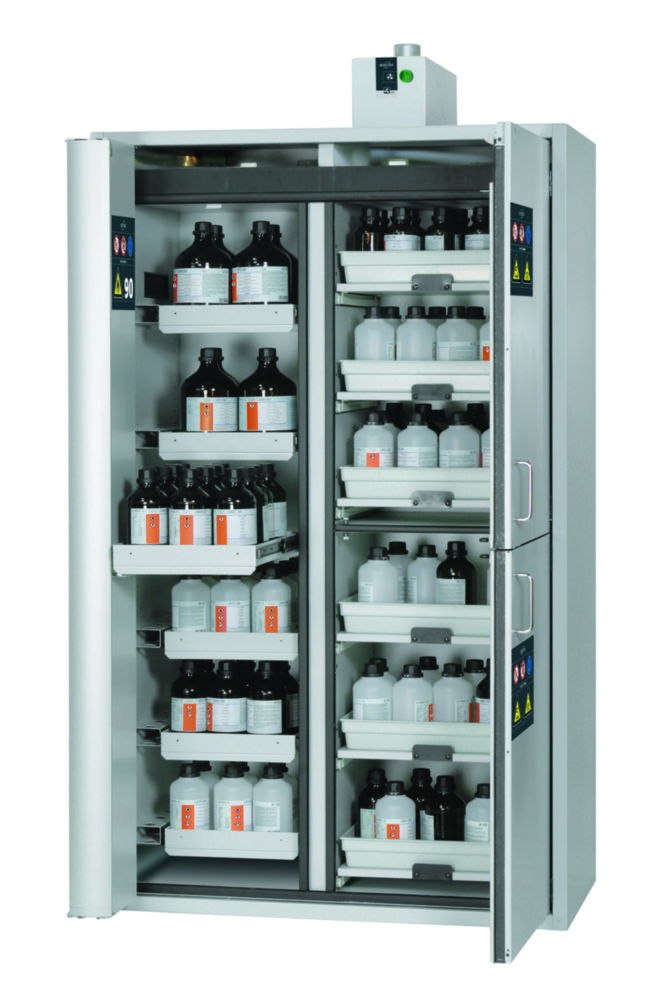

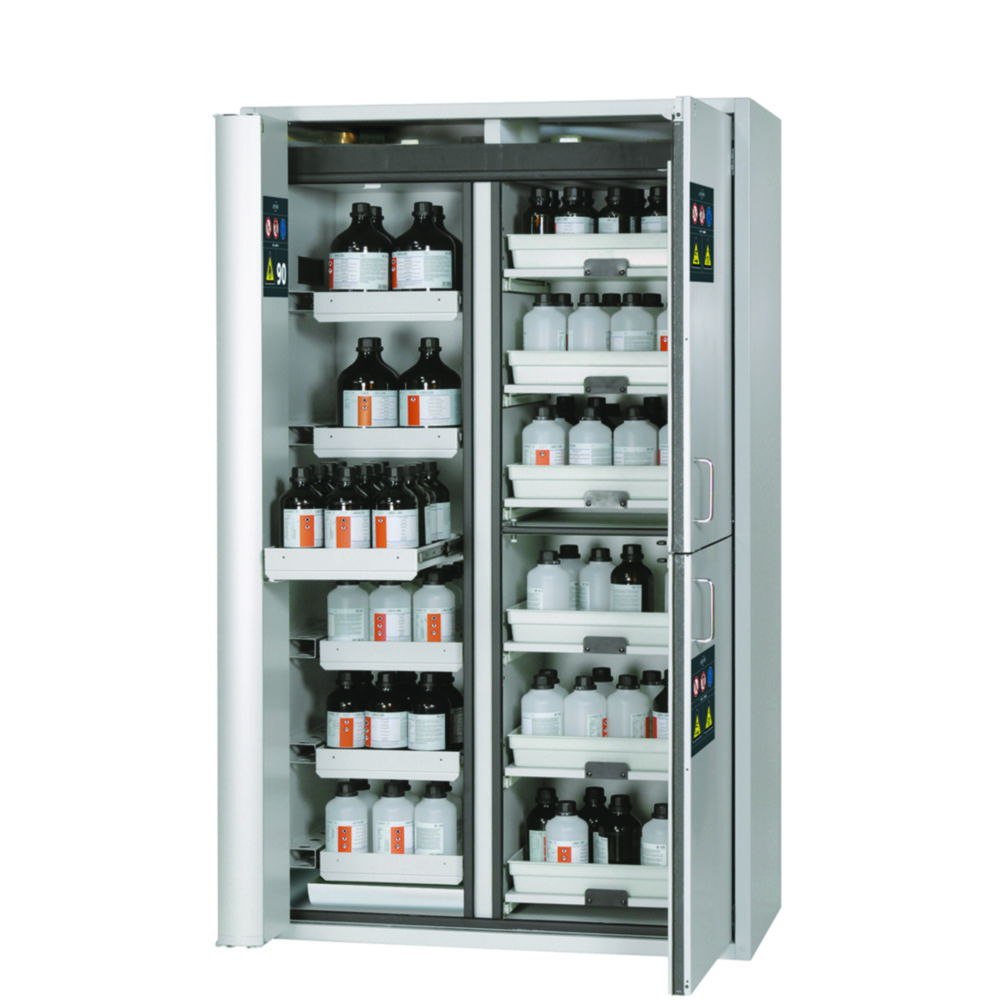

Model K90.196.120.MF.FWAS in Light grey (RAL 7035), interior equipment with: 6x drawer, 1x bottom collecting sump (sheet steel powder-coated),
6x pull-out shelf (melamine / PP)
Internal dimensions W x D x H :
left: 450 x 522 x 1742 mm
top right: 491 x 542 x 862 mm
bottom right: 491 x 542 x 862 mm
Toote variatsioonid
| Catalog number | PK | Colour body | Colour doors | Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Standard | Type | Version cabinet | Weight | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.284 342 | 1.00 | Light grey | Light grey | 522 mm | 1,197 x 617 x 1,969 mm | 617 mm | 1969 mm | 1197 | 1742 mm | 450 x 522 x 1,742 mm | 450 mm | DIN EN 16121/16122 | K90.196.120.MF.FWAS | Tall cabinet | 578 kg |
