Safety Storage Cabinets K-PHOENIX-90

Combined and unrestricted storage of flammable and aggressive hazardous materials in working areas in accordance with EN 14470-1

  • Tall cupboard with hinged and folding doors with door hold-open
  • type-tested in accordance with EN 14470-1
  • fire resistance of 90 minutes (type 90)
  • GS-tested
  • two in one: 2 compartments (vertically separated) allow the storage of flammable liquids and aggressive chemicals in one cabinet
  • robust construction and longevity: body made of powder – coated sheet steel, safety elements assembled outside the cabinet for increased protection against corrosion
  • user-friendly and safe (folding door compartment): door open arrest system (standard), convenient and safe removal or storage of containers
  • no unauthorised use: doors lockable with profile cylinder (integration in an existing locking system possible)
  • easy alignment: adjusting aids to compensate for uneven floor
  • ventilation: integrated air ducts ready for connection (DN 75) to a technical exhaust system

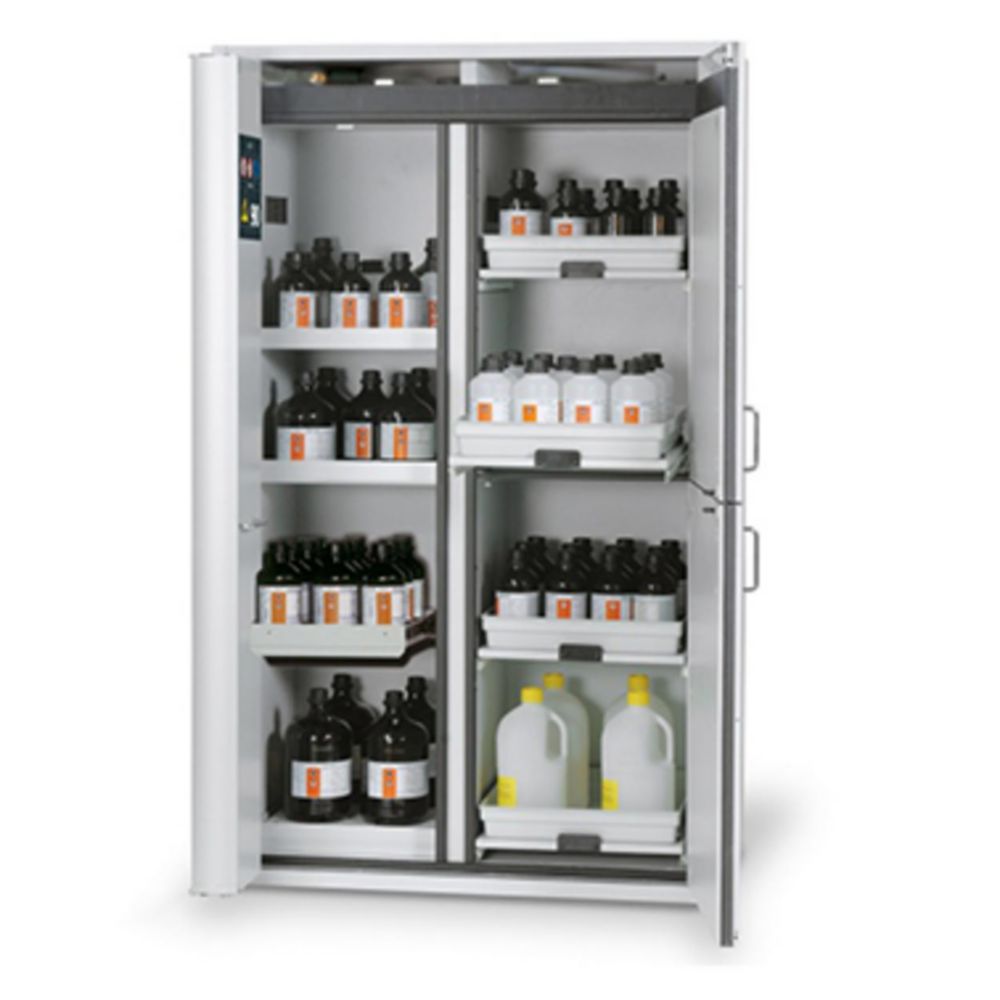

Model K90.196.120.MF.FWAS in Light grey (RAL 7035), interior equipment with:
3 x shelves, load capacity: 75 kg, powder-coated sheet steel
1 x perforated steel insert, load capacity: 75 kg, powder-coated sheet steel
1 x bottom collecting tray, volume: 22 litres, powder-coated sheet steel
4 x pull-out shelves with PP tray, load capacity: 25 kg, volume: 11 litres, board material/PP

Internal dimensions W x D x H:
left: 450 x 522 x 1742 mm
top right: 491 x 542 x 862 mm
bottom right: 491 x 542 x 862 mm

Toote variatsioonid

Catalog numberPKColour bodyColour doorsDepth int.External dimensions (WxDxH)Ext. depthExt. heightExt. widthHeight int.Internal dimensions (WxDxH)Int. widthStandardTypeVersion cabinetWeightKogus
6.259 7191.00Light greyLight grey522 mm1,197 x 617 x 1,969 mm617 mm1969 mm1197 mm1742 mm450 x 522 x 1,742 mm450 mmDIN EN 16121/16122K90.196.120.MF.FWASTall cabinet541 kg
