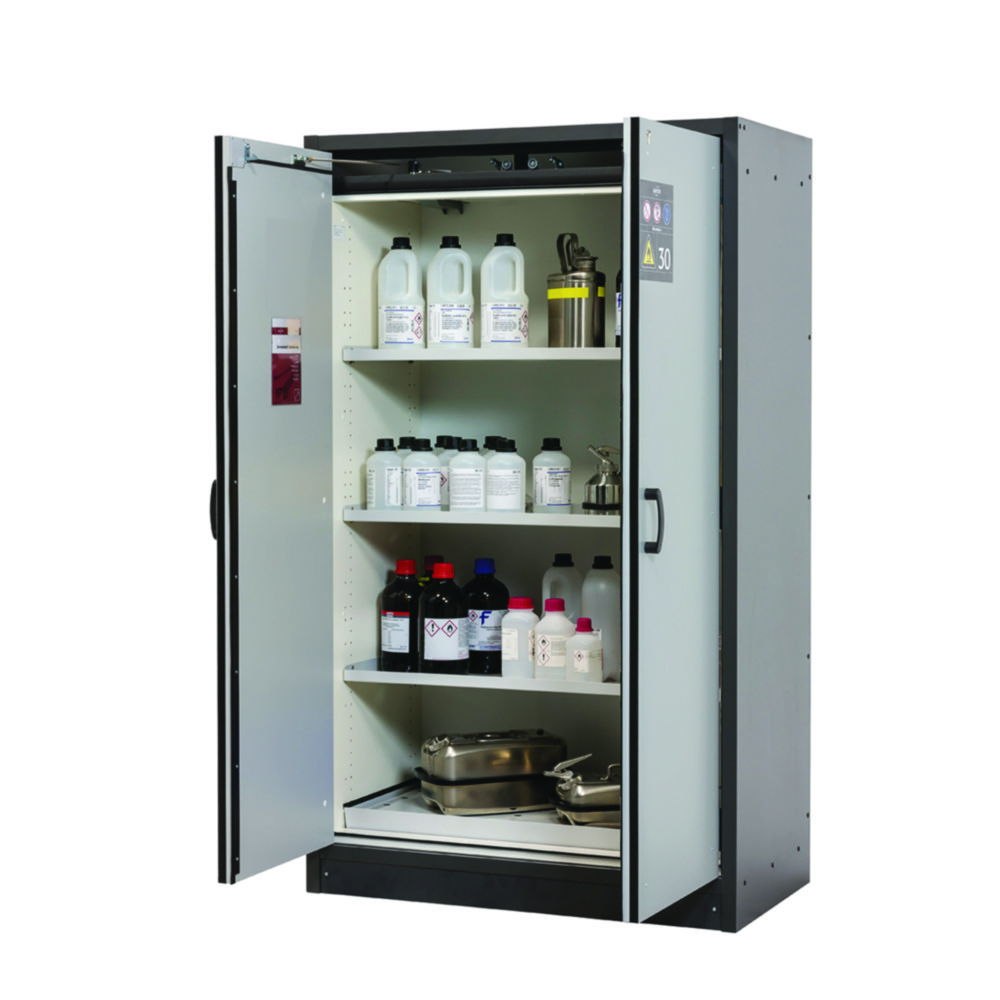

Safety Storage Cabinets Q-CLASSIC-30 with Wing Doors
- safe and approved storage of hazardous materials in workrooms
- type proved according to EN 14470-1, fire resistance 90 minutes
- GS-approved
- outer body made of flame retardant, melamine coated special plates, door front made of sheet steel with structured paint finish, colour: body anthracite grey (similar to RAL 7016), doors light grey (RAL 7035), door colour pure white (RAL 9010) available on request
- easy handling with comfort: doors stop in any position, self-closing in the event of fire
- standard door open arrest system holds doors open, safe and convenient storage and removal
- integrated transport base for an easy indoor transport
- removable base cover with integrated adjusting aids optional
- lockable doors with cylinder lock (integration into a locking system possible)
- ventilation connection (NW 75)in the cabinet ceiling
Shelves, height adjustable (32 mm increments), load capacity 75 kg (evenly distributed load), bottom collecting sump with perforated insert as a first storage level. Capacity bottom collecting sump: 33 litre (model width 1200 mm), 22 litre (model width 600 mm)
Supplied with: Safety Storage Cabinet Q-CLASSIC-30 Model Q30.195.116 or Q30.195.056 incl. interior equipment with 3 shelves, bottom collecting sump with perforated insert
A wide variety of cabinet versions is available. Please enquire.
Toote variatsioonid
Catalog number | PK | Colour body | Colour doors | Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | Standard | Type | Version cabinet | Weight | Kogus | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9.840 693 | 1.00 | Anthracite | Light grey | 519 mm | 1,164 x 620 x 1,947 mm | 620 mm | 1947 mm | 1164 mm | 1626 mm | 1,050 x 519 x 1,626 mm | 1050 mm | DIN EN 16121/16122 | Q30.195.116 | Tall cabinet | 271.5 kg | ||
9.840 694 | 1.00 | Anthracite | Light grey | 519 mm | 564 x 620 x 1,947 mm | 620 mm | 1947 mm | 564 mm | 1626 mm | 450 x 519 x 1,626 mm | 450 mm | DIN EN 16121/16122 | Q30.195.056 | Tall cabinet | 181.5 kg |
