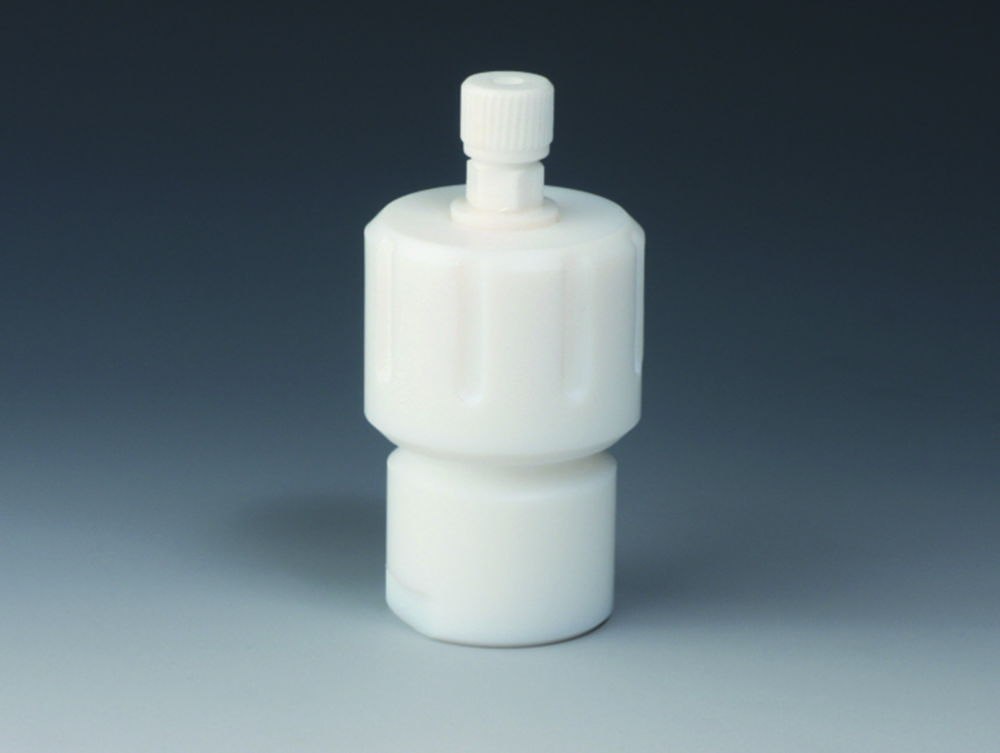

Sample hydrolysis and digestion vessels

For the digestion of small sample volumes up to 0.5 g in microwave ovens. Made of isostatically pressed, high-grade PTFE (TFM). The chemical resistance and usual PTFE properties remain unchanged. TFM is a modified PTFE by Hoechst and contains thermoplastic elements. This gives rise to a homogeneous, non-porous surface. Contaminating residues from earlier digestions are therefore avoided. Resists pressure deformation (to max. 25 bar) and temperature (max. 160 °C). An accessory burst-proof, sealing membrane prevents loss of volatile compounds and provides safety against overpressure. Optional digestion vessels with interchangeable inserts (internal liners) enable precise weighing-in (in most cases the complete vessels would be too heavy for balances). In addition, different digestion processes can be carried out in only one basic vessel by using several inserts.

Toote variatsioonid

PKHeight int.Int. ØMaterialMax. pressureMax. temperatureNominal capacityCatalog numberKogus
1.0032 mm15 mmPTFE25 bar160 °C5 ml9.601 460
1.0060 mm22 mmPTFE20 bar150 °C20 ml9.601 462
1.0062 mm33 mmPTFE20 bar150 °C50 ml9.601 463
1.00110 mm35 mmPTFE15 bar140 °C100 ml9.601 464
