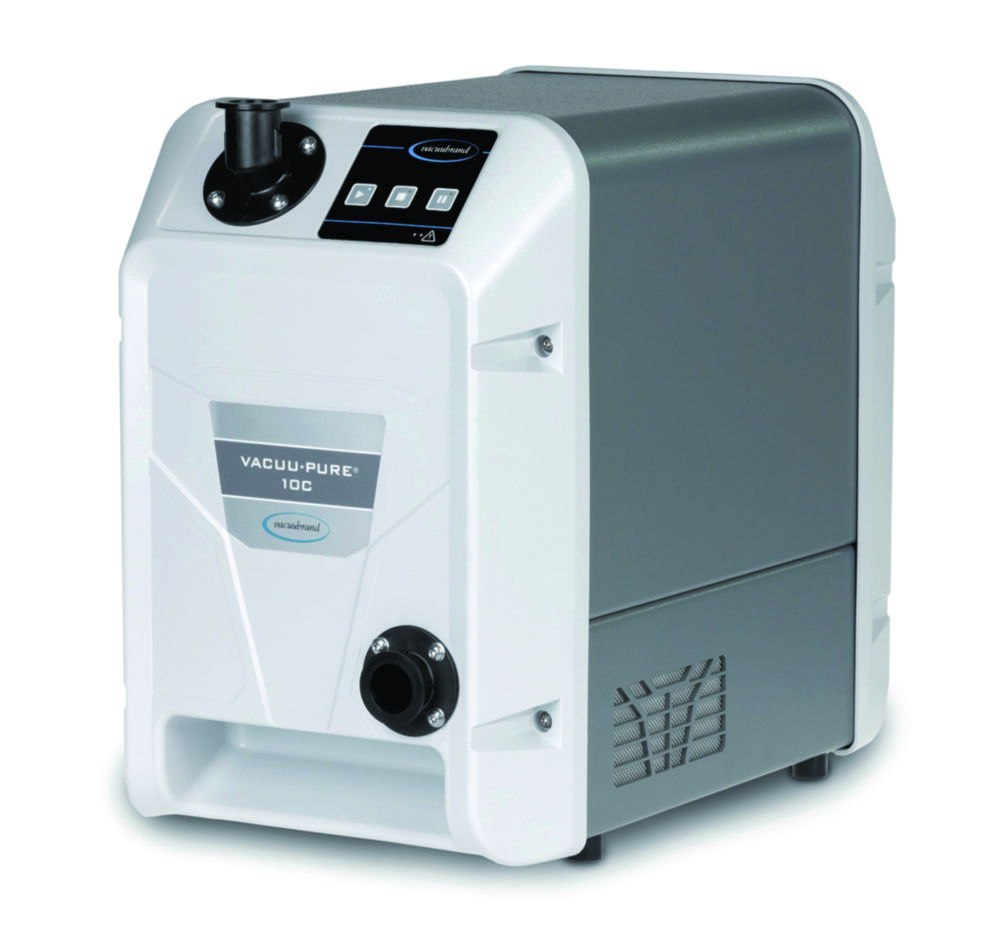

Screw pumps VACUU·PURE® 10C
The chemical-resistant version VACUU·PURE® 10C is protected against corrosion due to chemically resistant polymers on all wetted parts. A thick-walled PEEK encapsulation protects the spindles and stator inside the pumping chamber, providing high chemical resistance. An integrated sealing gas supply prevents the bearings from chemical attack. Due to the design-related high condensate compatibility, no gas ballast is required, even with high vapor loads.
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Flow rate | Height | IP code | Max. voltage | Noise level | Catalog number | Plug type | Power supply | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 507 mm | 269 x 507 x 413 mm | 150 | 413 mm | IP 20 | 230 V | 55 db(A) | 4.679 583 | EU | 230 V, 50...60 Hz | VACUU·PURE® 10C | 0.005 mbar | 21.1 kg | 269 mm | 1.00 | ||
| 507 mm | 269 x 507 x 413 mm | 150 | 413 mm | IP 20 | 230 V | 55 db(A) | 4.679 585 | UK | 230 V, 50...60 Hz | VACUU·PURE® 10C | 0.005 mbar | 21.1 kg | 269 mm | 1.00 | ||
| 507 mm | 269 x 507 x 413 mm | 150 | 413 mm | IP 20 | 230 V | 55 db(A) | 4.679 584 | CH | 230 V, 50...60 Hz | VACUU·PURE® 10C | 0.005 mbar | 21.1 kg | 269 mm | 1.00 |
