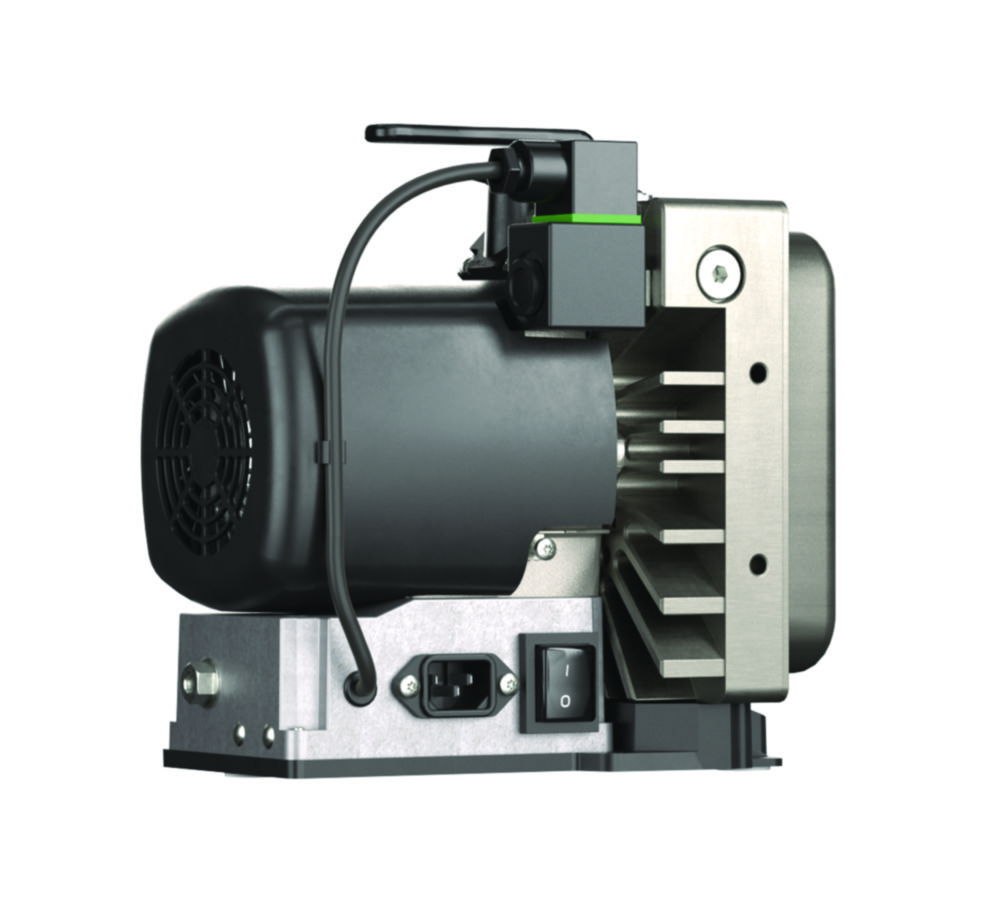

Scroll vacuum pump SCROLLVAC 3S plus
The oil-free, dry-compressing vacuum pump works on the principle of a scroll compressor and combines a high pumping speed with a good ultimate vacuum. Ideal for small laboratories as well as applications in research and development. The integrated exhaust valve provides effective protection against a rapid pressure rise in the event of a power failure. Additional system protection is provided by the solenoid inlet valve with delay relay, which isolates the pump from the system and preserve the vacuum inside the system.
- Powerful, dry-operating alternative to diaphragm pumps
- Can be operated horizontally or vertically
- Compact design with low weight
- Max. pump speed of 3 m3/h
- Carrying handle facilitates transport of the pump
- Build-in manual gas ballast
- Long maintenance intervals due to oil-free operation, low maintenance
- Low vibration and quiet operation
Toote variatsioonid
| Depth | Flow rate | Height | Max. voltage | Noise level | Catalog number | Type | Ultimate vacuum | Weight | Width | PK | Dimensions (WxDxH) | Power supply | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 224 mm | 3 m³/h | 231 mm | 230 V | 54 db(A) | 4.700 564 | SCROLLVAC 3S plus | 0.1 mbar | 8 kg | 158 mm | 1.00 | 158 x 224 x 231 mm | 230 V, 50...60 Hz |
