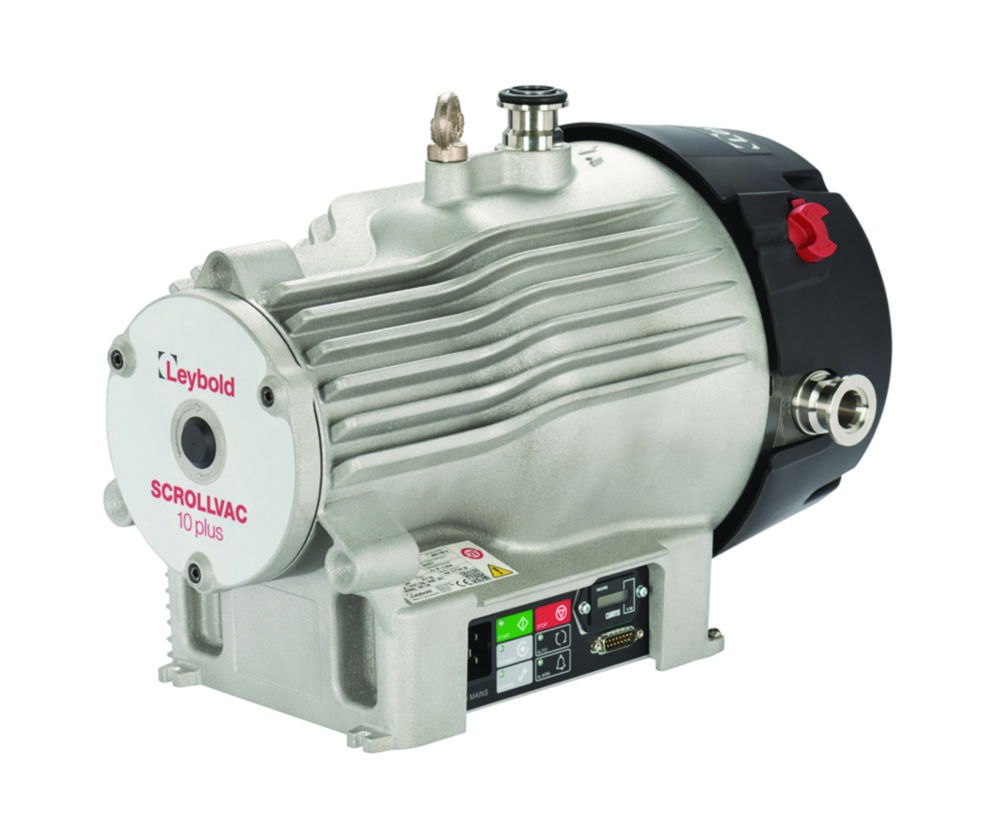

Scroll vacuum pump SCROLLVAC plus
The oil-free, dry-compressing vacuum pump works on the principle of a scroll compressor and is characterised by high pumping speed, with low ultimate pressure, low power consumption and low noise level. Ideal for general laboratory, light industrial, research, and chemical applications. The gas ballast enables the pumping of condensable vapours, including water, solvents, dilute acids, and bases. Absolute separation of the bearings from the pump mechanism prevents contamination. The integrated smart drive with auto sensing voltage input ensures optimised pump performance worldwide.
- Compact design with low weight
- Control panel for convenient control of the pump with remote control interface
- Running time hours-counter included as standard
- Universal voltage drive (100 to 127 V/200 to 240 V, 50/60 Hz)
- High water vapour capacity
- Low noise level for a quiet working and laboratory environment
- Low-maintenance, simple seal replacement (maintenance kits can be ordered separately)
- ATEX-certified (Ex II 3 G c IIB T4)
Toote variatsioonid
| Depth | Flow rate | Height | IP code | Noise level | Catalog number | Type | Ultimate vacuum | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 298 mm | 10.6 m³/h | 312 mm | IP 42 | 55 db(A) | 4.700 559 | SCROLLVAC 10 plus | 0.009 mbar | 25 kg | 432 mm | 1.00 | ||
| 298 mm | 6.1 m³/h | 312 mm | IP 42 | 55 db(A) | 4.700 565 | SCROLLVAC 7 plus | 0.02 mbar | 26 kg | 432 mm | 1.00 | ||
| 298 mm | 20.0 m³/h | 312 mm | IP 42 | 55 db(A) | 4.700 563 | SCROLLVAC 18 plus | 0.03 mbar | 25 kg | 432 mm | 1.00 | ||
| 298 mm | 14.5 m³/h | 312 mm | IP 42 | 55 db(A) | 4.700 561 | SCROLLVAC 15 plus | 0.009 mbar | 26 kg | 432 mm | 1.00 |
