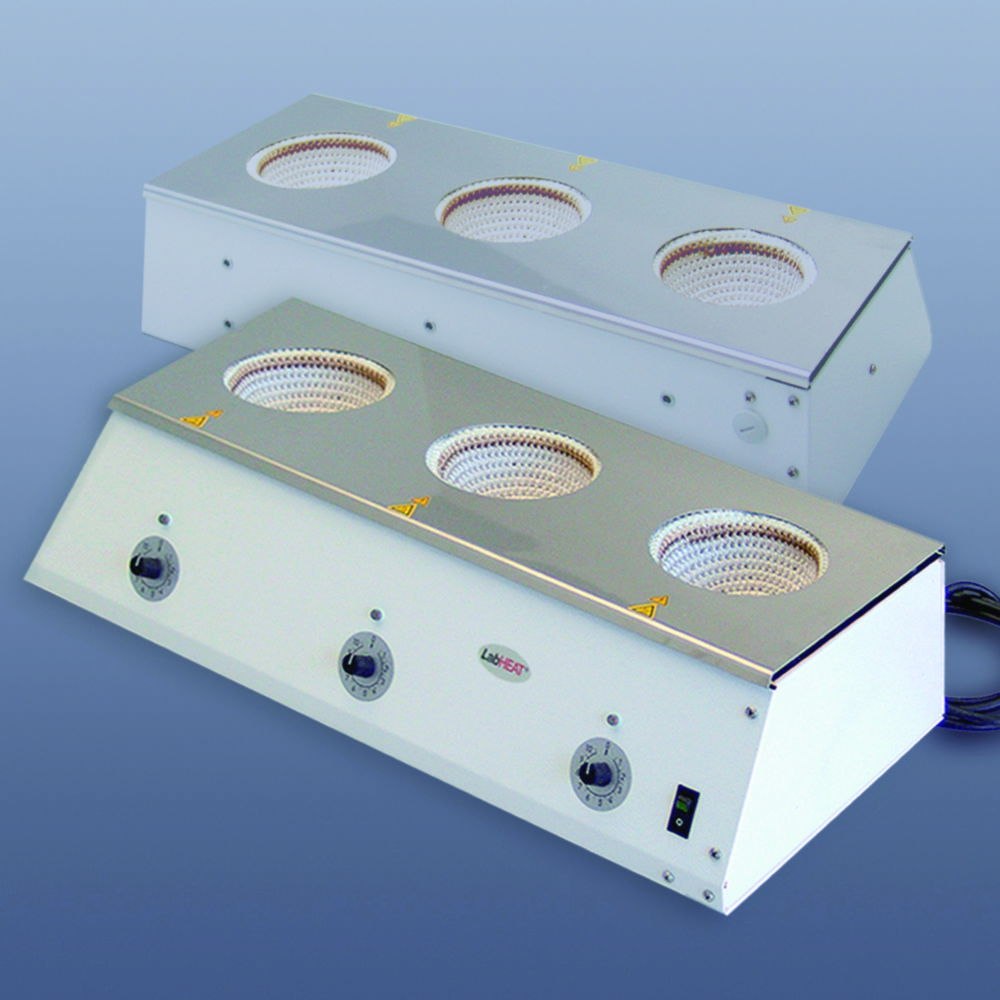

Serial heating units series KM-R3
LabHEAT®-Heating elements for flasks, round bottom. Serial heating unit in plastic coated, chemical-resistant metal housing with three heating positions. Each heating position is separately controlled via controller, 1.5 m supply (earthed) cable and RCD (residual current detection).
Size and rating specifications are valid for each heating position.
Toote variatsioonid
| Depth | atr_llg_diam_vessel | Dimensions (WxDxH) | Height | Max. temperature | Max. voltage | atr_llg_no_of_heating_points | No. of heating zones | Catalog number | Power supply | Rated capacity | atr_llg_vessels_capacity | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 290 mm | 105 mm | 580 x 290 x 150 mm | 150 mm | 450 °C | 230 V·AC | 3 | 1 | 6.256 976 | 230 V·AC | 330 W | 500 ml | 580 mm | 1.00 | ||
| 290 mm | 131 mm | 580 x 290 x 150 mm | 150 mm | 450 °C | 230 V·AC | 3 | 1 | 6.257 822 | 230 V·AC | 495 W | 1000 ml | 580 mm | 1.00 |
