Set for continuous level control

For permanent level measurement. The signal box offers 4 freely configurable outputs for controlling external devices. The compact design and independent mains supply allow easy handling and installation even outside control cabinets.

  • Automatic warning for 5 different levels freely selectable
  • Accuracy of up to ± 0.5 mm
  • Probe head: stainless steel 303/316L
  • Probe tube: stainless steel 1.4571
  • Probe length: 265 mm
  • Probe tube Ø: 6 mm
  • Protection class IP68

Scope of supply:

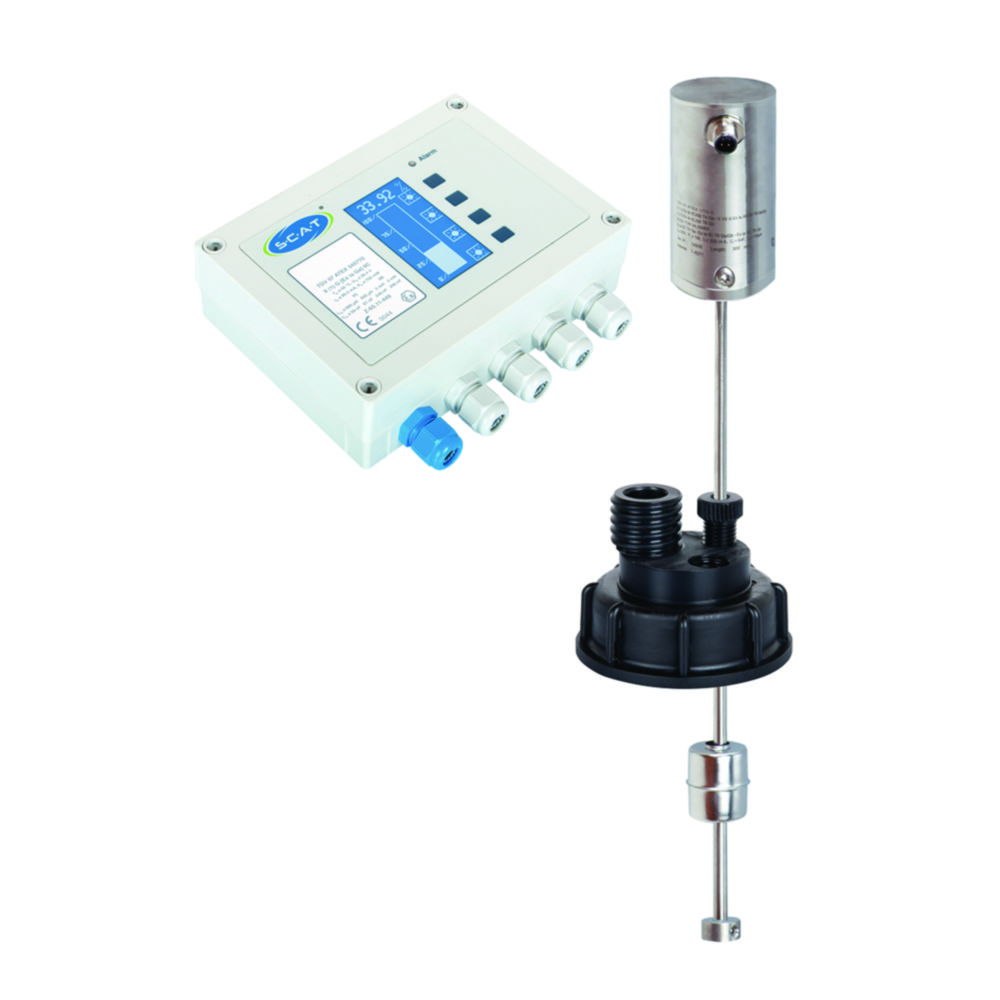

Signalbox UM-O-Ex with display unit, stainless steel sensor probe, cable with open ends, level sensor TORRIX Ex 6 B NT for Bypass without HART

Toote variatsioonid

Catalog numberThreadPKKogus
4.692 407S 60/611.00
