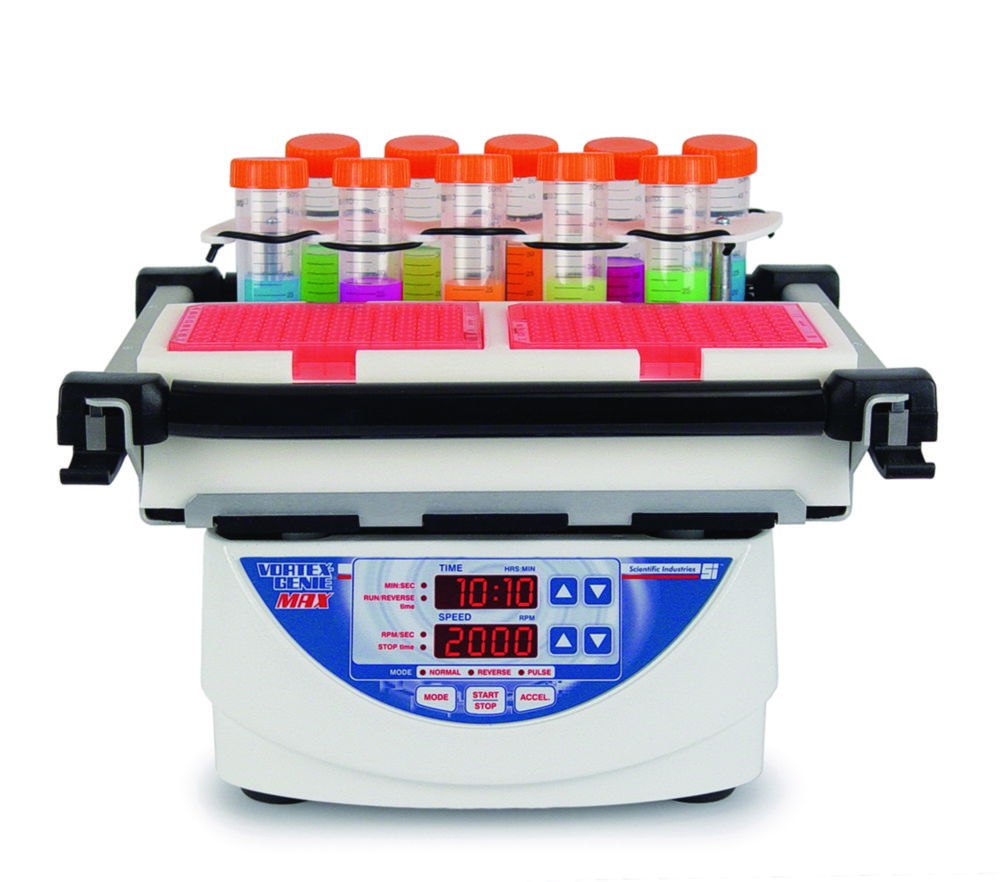

Shaker Vortex-Genie® Max
Robust and reliable shaking device for mixing and shaking of samples in Erlenmeyer flasks, vials, tubes, beakers, or microplates.
- Digital display for speed and time
- Robust metal case
- Secure stand at high speed thanks to supports with high vibration damping
- Can be loaded with e. g. max. 6 Erlenmeyer flasks 250 ml or 2 multi racks each for 10 test tubes (max. tube diameter 29 mm)
- Unique ratcheting clamping system, ideal for repetitive protocols and use with open containers
- Fully programmable
- Revers and interval mixing
- Pulse function (0.1 s to 99 min)
- Timer from 1 min to 99 h
Scope of supply: Shaker, platform with 2 ratcheting clamps
- Specifications Multi Vortex-Genie® // Vortex-Genie® Max
-
Type of movement:
Orbit: orbital
4 mm - Speed range: 200 … 950 rpm // 500 … 2000 rpm
- Overall dimensions (W x D x H): 310 x 270 x 195 mm
- Weight: 11.3 kg // 10.4 kg
- Supply requirements: 230 V, 50 Hz
Toote variatsioonid
| Depth | Height | Max. speed | Max. voltage | Min. speed | Catalog number | Plug type | Shaking stroke | Type | <th class='Type ofWeight | Width | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 270 mm | 195 mm | 1950 1/min | 230 V | 500 1/min | 4.670 816 | EU | 2.5 mm | Vortex-Genie® Max | <td data-title='Type of10.4 kg | 310 mm | Yes | 1.00 | ||
| 270 mm | 195 mm | 1950 1/min | 230 V | 500 1/min | 4.670 817 | UK | 2.5 mm | Vortex-Genie® Max | <td data-title='Type of10.4 kg | 310 mm | Yes | 1.00 | ||
| 270 mm | 195 mm | 1950 1/min | 230 V | 500 1/min | 4.670 818 | CH | 2.5 mm | Vortex-Genie® Max | <td data-title='Type of10.4 kg | 310 mm | Yes | 1.00 |
