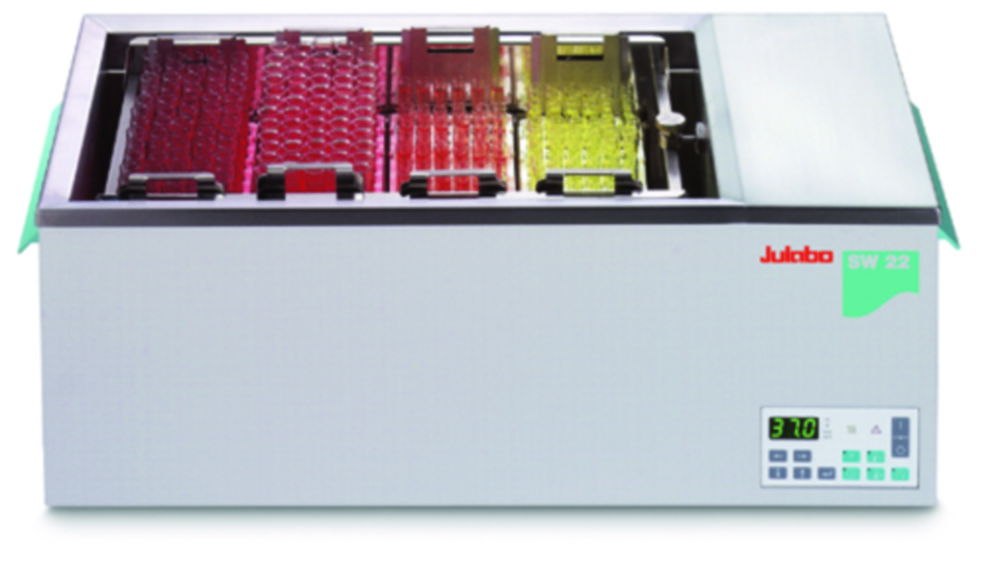

Shaking water bath SW
For simultaneous heating and shaking of samples, e.g. incubations, hybridizations etc.
- Microprocessor technology with PID temperature control
- Bright Multi-Display (LED) indicates five different temperature values and shaking speed
- Splash-proof mains switch, built into plastic membrane keypad
- Easy-to-use controls
- Timer for selecting desired operating period
- RS232 interface provided
- Shaking frequency 20 to 200 strokes/min., with 15 mm stroke
- Removable shaking carriage
- Model SW23 has an internal circulation pump
Bath lid not included.
Toote variatsioonid
| Capacity | Depth int. | Display | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | Height int. | Internal dimensions (WxDxH) | Int. width | IP code | Max. capacity | Max. speed | Max. temperature | Max. voltage | Min. capacity | Min. speed | Min. temperature | Catalog number | Plug type | Power supply | Shaking stroke | Speed | Temp. Stability | Temperature | Type | Type of display | Weight | With circulation | With lid | With stopcock | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 ... 20 l | 300 mm | Digital | 700 x 350 x 260 mm | 350 mm | 260 mm | 700 mm | 2 kW | 180 mm | 500 x 300 x 180 mm | 500 mm | IP 21 | 200 1/min | 99,9 °C | 230 V | 20 1/min | -20 °C | 9.906 383 | EU | 230 V, 50...60 Hz | 15 mm | 20 ... 200 1/min | ±0,2 °C | 20 ... 99,9 °C | SW22 | LED | 19.7 kg | No | No | Yes | Yes | 1.00 | ||||
| 8 ... 20 l | 300 mm | Digital | 700 x 350 x 260 mm | 350 mm | 260 mm | 700 mm | 2 kW | 180 mm | 500 x 300 x 180 mm | 500 mm | IP 21 | 200 1/min | 99,9 °C | 230 V | 20 1/min | -20 °C | 9.906 384 | EU | 230 V, 50...60 Hz | 15 mm | 20 ... 200 1/min | ±0,2 °C | 20 ... 99,9 °C | SW23 | LED | 20.7 kg | Yes | No | Yes | Yes | 1.00 |
