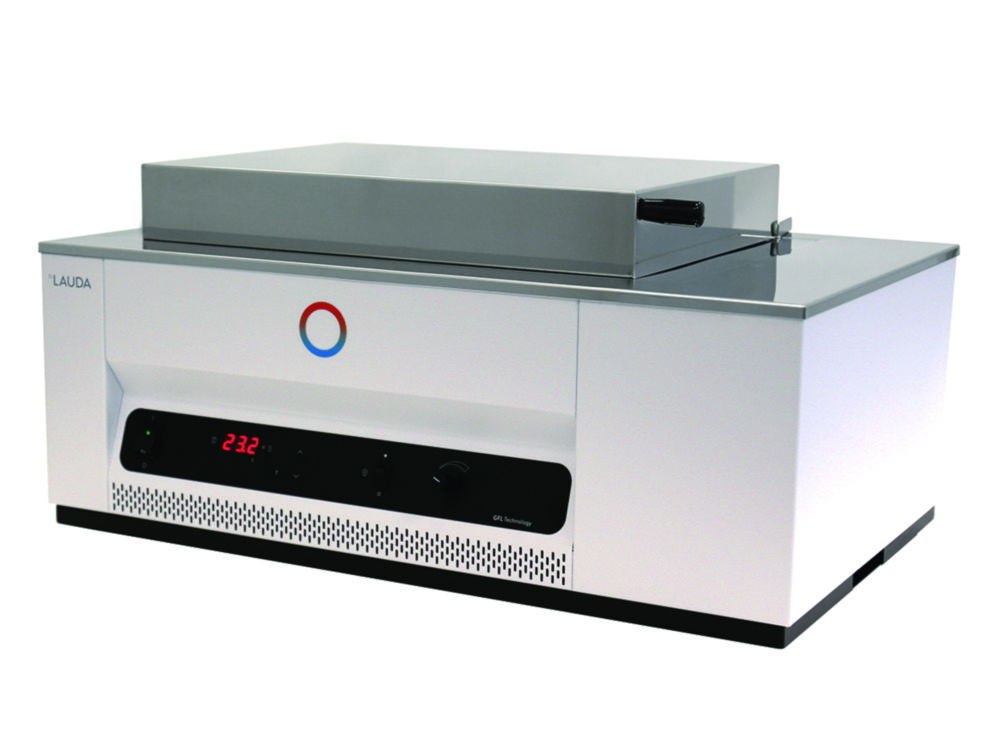

Shaking water baths Hydro

With their excellent temperature homogeneity, the universal Hydro shaking water baths are designed for the needs of biological, medical or biochemical laboratories. The models H 20 S and H 20 SW shaking water baths have a linear, oscillating shaking movement, while model H 20 SOW moves the sample in an orbital motion.

For boiling range applications

LED display

Speed controller for load-independent, continuously adjustable shaking movement

Soft, controlled start of the shaking movement

Dry run protection (safety class I, NFL)

Maintenance free and reliable

H 20 SW and H 20 SOW with integrated cooling coil

Scope of supply: Shaking water bath, stainless steel lid, shaking insert, drain tap

Please order trays, attachments and accessories separately.

Toote variatsioonid

Capacity	Depth int.	Display	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Heating capacity	Height int.	Internal dimensions (WxDxH)	Int. width	Max. speed	Max. temperature	Max. voltage	Min. speed	Min. temperature	Catalog number	Plug type	Power supply	Shaking stroke	Speed	Temp. Stability	Temperature	Type	Type of display	Type of movement	Weight	With lid	With stopcock	With timer	PK
9.0 ... 24.4 l	300 mm	Digital	715 x 520 x 330 mm	520 mm	330 mm	715 mm	1500 W	185 mm	450 x 300 x 185 mm	450 mm	250 1/min	99,9 °C	230 V	10 1/min	25 °C	4.672 299	EU	230 V, 50...60 Hz	22 mm	10 ... 250 1/min	±0,1 K	25 ... 99,9 °C	H 20 S	LED	Reciprocal	28 kg	Yes	Yes	No	1.00
8.5 ... 23.1 l	300 mm	Digital	635 x 505 x 400 mm	505 mm	400 mm	635 mm	1500 W	185 mm	450 x 300 x 185 mm	450 mm	250 1/min	80 °C	230 V	10 1/min	-10 °C	4.672 301	EU	230 V, 50...60 Hz	14 mm	10 ... 250 1/min	±0,1 K	10 ... 80 °C	H 20 SOW	LED	Orbital	35 kg	Yes	Yes	No	1.00
9.0 ... 24.4 l	300 mm	Digital	715 x 520 x 330 mm	520 mm	330 mm	715 mm	1500 W	185 mm	450 x 300 x 185 mm	450 mm	250 1/min	99,9 °C	230 V	10 1/min	-10 °C	4.672 300	EU	230 V, 50...60 Hz	22 mm	10 ... 250 1/min	±0,1 K	10 ... 99,9 °C	H 20 SW	LED	Reciprocal	29 kg	Yes	Yes	No	1.00
