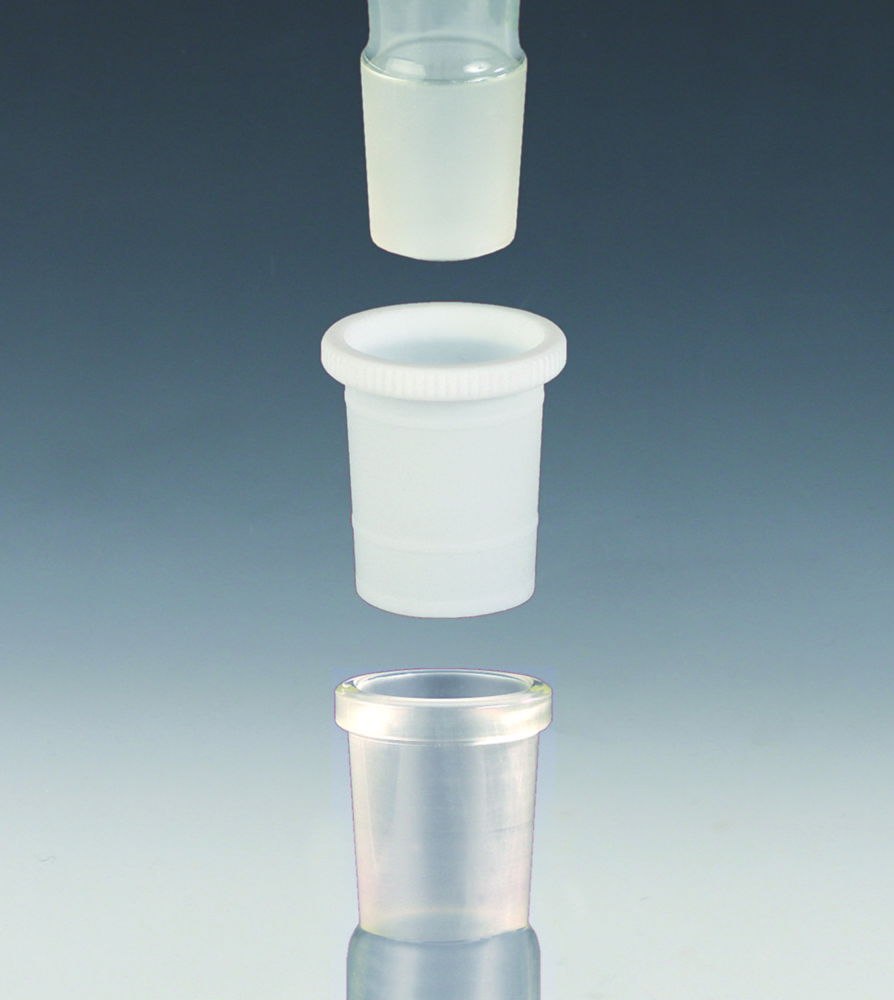

Sleeves, cone joint, PTFE
With knurled gripping ring at the top of the cone for easy removal. For gas, liquid and vacuum-tight cone joint connections with sizes as outlined below. Reusable. With reinforced external ribs for a high-vacuum tight seal (leakage rate: < 1×10-4mbar x I x s-1). No joint sealant or grease required.
Toote variatsioonid
| Ground size | Material | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|
| NS14/23 | PTFE | 9.011 642 | 1.00 | ||
| NS45/40 | PTFE | 9.011 647 | 1.00 | ||
| NS19/26 | PTFE | 9.011 643 | 1.00 | ||
| NS29/32 | PTFE | 9.011 645 | 1.00 | ||
| NS24/29 | PTFE | 9.011 644 | 1.00 |
