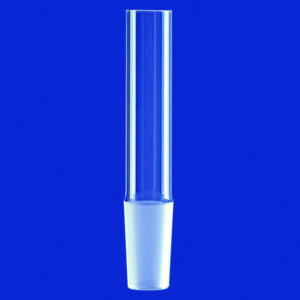

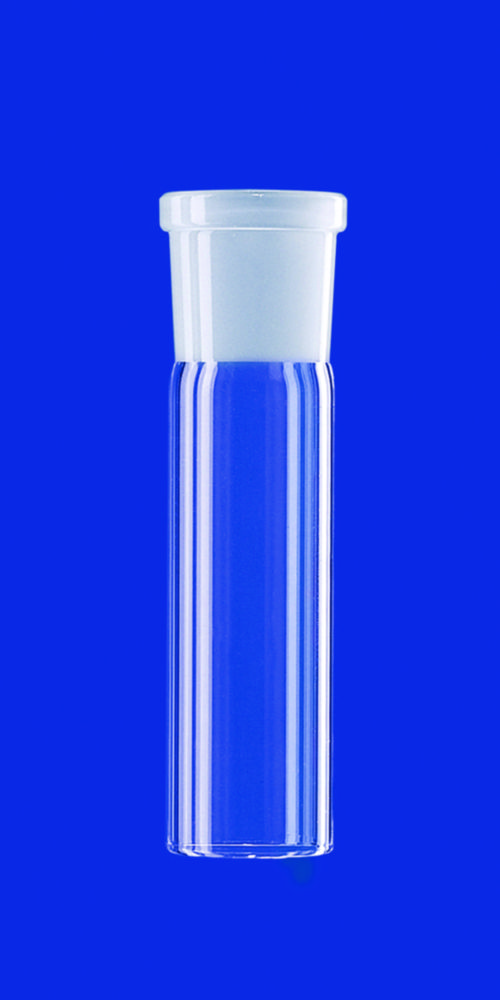

Sockets with NS joint, DURAN® tubing

Made of DURAN^® tubing. DIN 12249 and in addition to DIN standard.

Toote variatsioonid

Ext. Ø	Length	Material	Catalog number	Socket[s]	Standard	Wall thickness	PK
15 mm	130 mm	DURAN® tubing	9.011 524	NS12/21	DIN 12249	1,8 mm	1.00
6,0 mm	145 mm	DURAN® tubing	6.224 163	NS55/44	-	2,2 mm	1.00
17 mm	130 mm	DURAN® tubing	9.011 525	NS14/23	DIN 12249	1,8 mm	1.00
10 mm	120 mm	DURAN® tubing	9.011 522	NS7/16	DIN 12249	1,5 mm	1.00
13 mm	130 mm	DURAN® tubing	9.011 523	NS10/19	DIN 12249	1,5 mm	1.00
28 mm	130 mm	DURAN® tubing	9.011 527	NS24/29	DIN 12249	2,0 mm	1.00
33 mm	130 mm	DURAN® tubing	9.011 528	NS29/32	DIN 12249	2,0 mm	1.00
90 mm	185 mm	DURAN® tubing	9.011 533	NS85/55	DIN 12249	3,5 mm	1.00
5,0 mm	145 mm	DURAN® tubing	9.011 530	NS45/40	DIN 12249	2,5 mm	1.00
75 mm	165 mm	DURAN® tubing	9.011 532	NS71/51	DIN 12249	3,2 mm	1.00
22 mm	130 mm	DURAN® tubing	9.011 526	NS19/26	DIN 12249	1,8 mm	1.00
65 mm	165 mm	DURAN® tubing	9.011 531	NS60/46	DIN 12249	3,2 mm	1.00
44 mm	130 mm	DURAN® tubing	6.202 446	NS40/38	-	2,3 mm	1.00
54 mm	145 mm	DURAN® tubing	6.072 613	NS50/42	-	2,5 mm	1.00
8 mm	120 mm	DURAN® tubing	9.011 521	NS5/13	DIN 12249	1,5 mm	1.00
4,0 mm	130 mm	DURAN® tubing	9.011 529	NS34/35	DIN 12249	2,3 mm	1.00
