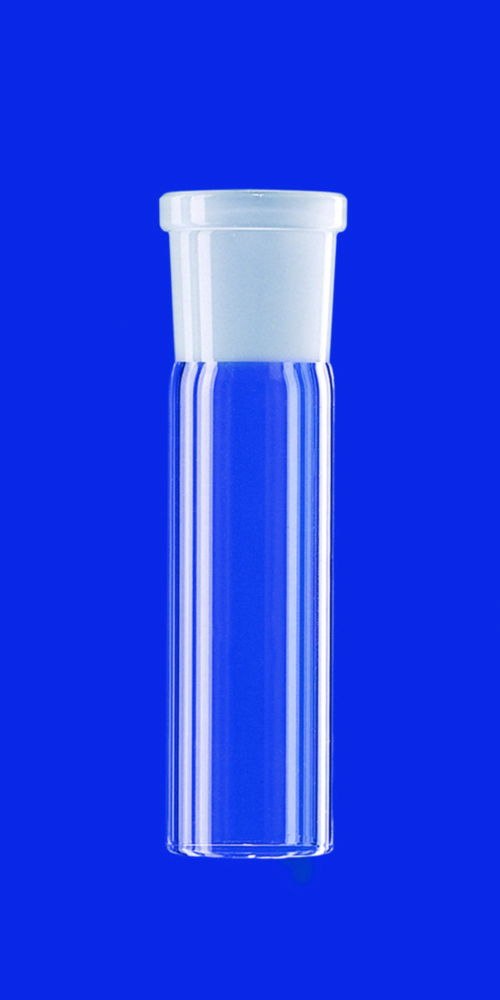

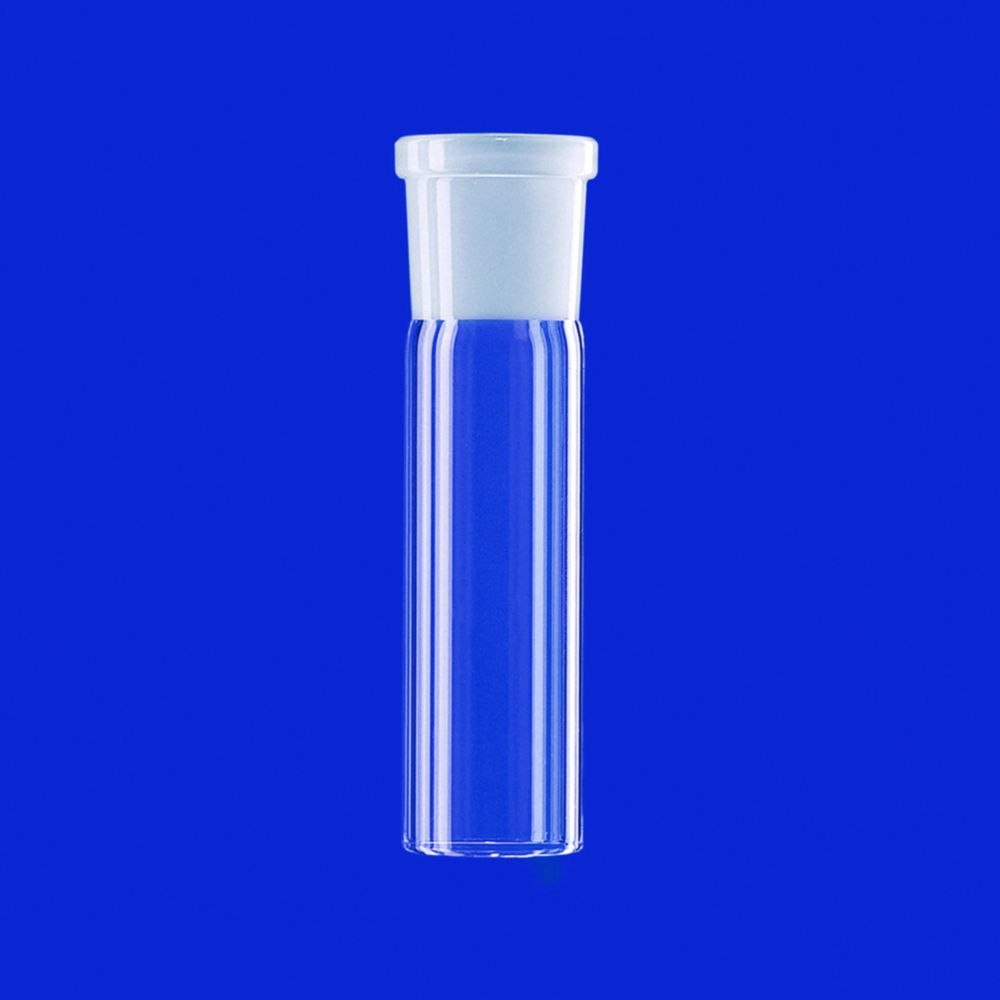

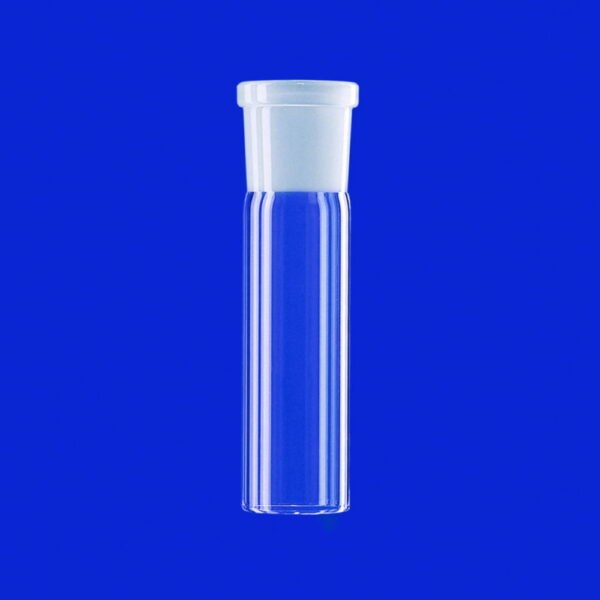

Sockets with NS joint, DURAN® tubing

Made of DURAN^® tubing. DIN 12249 and in addition to DIN standard.

Toote variatsioonid

Ext. Ø	Length	Material	Catalog number	Socket[s]	Wall thickness	PK	Standard
54 mm	145 mm	DURAN® tubing	6.072 613	NS50/42	2,5 mm	1.00	-
6,0 mm	145 mm	DURAN® tubing	6.224 163	NS55/44	2,2 mm	1.00	-
65 mm	165 mm	DURAN® tubing	9.011 531	NS60/46	3,2 mm	1.00	DIN 12249
8 mm	120 mm	DURAN® tubing	9.011 521	NS5/13	1,5 mm	1.00	DIN 12249
17 mm	130 mm	DURAN® tubing	9.011 525	NS14/23	1,8 mm	1.00	DIN 12249
10 mm	120 mm	DURAN® tubing	9.011 522	NS7/16	1,5 mm	1.00	DIN 12249
75 mm	165 mm	DURAN® tubing	9.011 532	NS71/51	3,2 mm	1.00	DIN 12249
44 mm	130 mm	DURAN® tubing	6.202 446	NS40/38	2,3 mm	1.00	-
15 mm	130 mm	DURAN® tubing	9.011 524	NS12/21	1,8 mm	1.00	DIN 12249
13 mm	130 mm	DURAN® tubing	9.011 523	NS10/19	1,5 mm	1.00	DIN 12249
4,0 mm	130 mm	DURAN® tubing	9.011 529	NS34/35	2,3 mm	1.00	DIN 12249
28 mm	130 mm	DURAN® tubing	9.011 527	NS24/29	2,0 mm	1.00	DIN 12249
33 mm	130 mm	DURAN® tubing	9.011 528	NS29/32	2,0 mm	1.00	DIN 12249
90 mm	185 mm	DURAN® tubing	9.011 533	NS85/55	3,5 mm	1.00	DIN 12249
22 mm	130 mm	DURAN® tubing	9.011 526	NS19/26	1,8 mm	1.00	DIN 12249
5,0 mm	145 mm	DURAN® tubing	9.011 530	NS45/40	2,5 mm	1.00	DIN 12249
