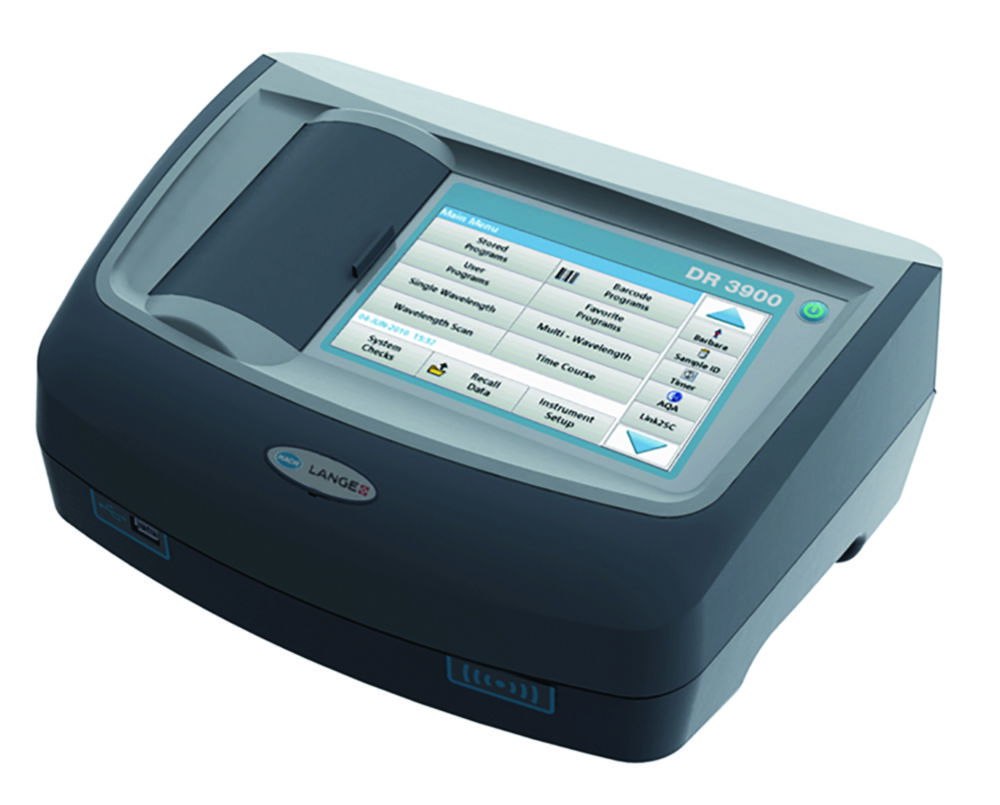

Spectrophotometer DR 3900
High-performance, microprocessor driven VIS spectrophotometer with RFID technology for sample identification and tracing when using cuvette tests. Suitable for water analytics and user applications. Device includes several preconfigured application programs as well as all HACH LANGE standard test methods. Extensive, user-defined applications can be programmed. Type and expiry date of cuvette tests are identified automatically. The user is guided through the complete measuring process via touch screen.
- Compact and easy to use
- RFID sample identification
- Single or multi wavelength mode
- Measurement of concentration, extinction or %-transmission
- Out-of-limit value alarm
- For 13 mm round cuvettes and 10/50 mm rectangular cuvettes
- Creation of reports and statistical evaluations
- 7″ colour touch screen
- Bidirectional data transfer via Ethernet or USB stick
- Methods are updated via RFID module
Toote variatsioonid
| Catalog number | PK | Accuracy | Accuracy | Depth | Dimensions (WxDxH) | Height | Illuminants | Interfaces | IP code | Max. voltage | Measuring method | Min. voltage | Optical system | Photometric accuracy | Power supply | Scattered light | Spectral bandwidth | Type | Waranty | Wavelength | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.256 020 | 1.00 | ±1.5 nm | 1.5 nm | 255 mm | 350 x 255 x 151 mm | 151 mm | Tungsten | 2 x USB-A, USB-B, Ethernet, RFID | IP 30 | 240 V | VIS | 110 V | Split Beam | 110 ... 240 V, 50/60 Hz | 0.1 % (340 nm) | 5 nm | DR 3900 | 2 years | 320 ... 1100 nm | 4200 g | 350 mm |
