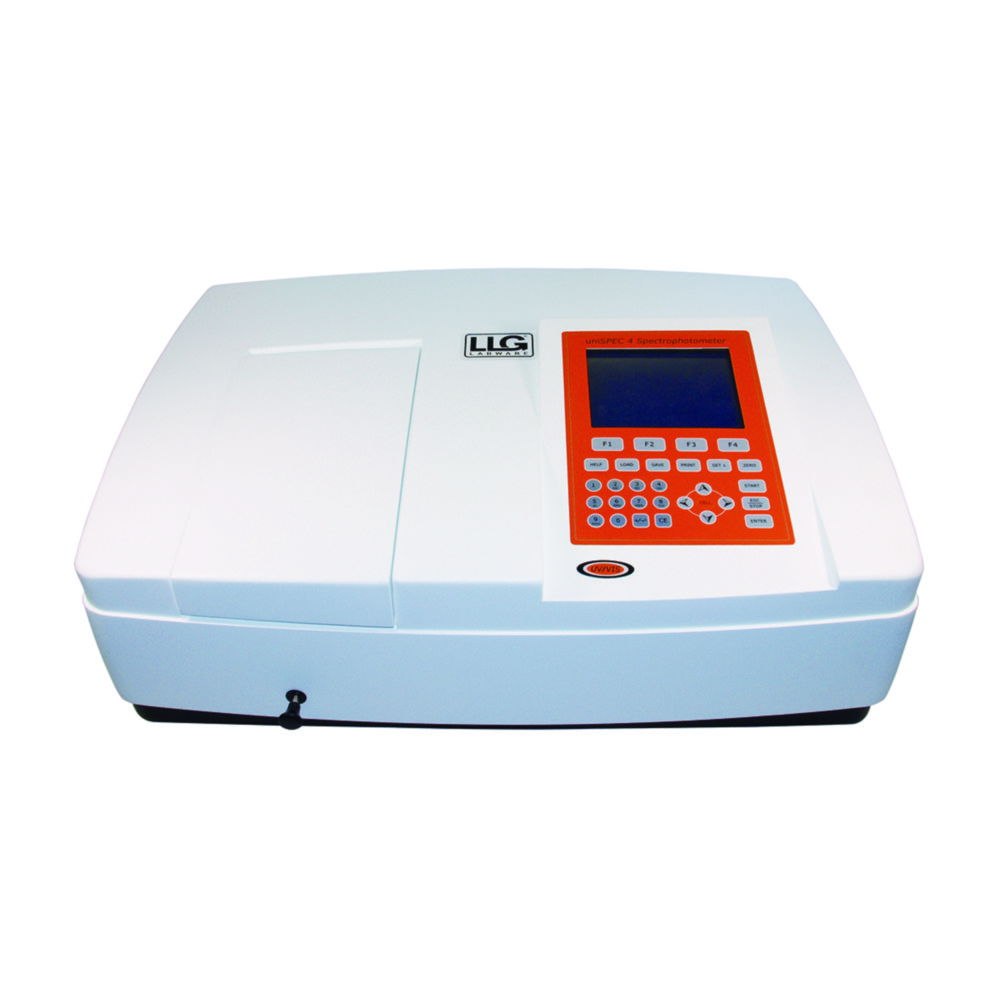

Spectrophotometer LLG-uniSPEC 4

High-quality and cost-efficient UV/VIS spectrophotometer for pharmaceutical, biochemical, and clinical lab applications. Suitable for different measurement types such as kinetics, wavelength scans, quantitative analysis, multi-wavelength, and DNA/Protein analysis. LLG-uniSPEC 4 is ideal for complex measurements e.g. required for quality controls.

LLG-uniSPEC 4 features a small band width and a high wavelength accuracy. The device can store and save 200 calibration curves. A pre-adjusted lamp design allows a fast and easy lamp replacement. Both lamps can be individually turned on/off to extend the durability. The device can be used either as stand-alone unit or can be operated via a PC by using the supplied software.

• Single beam system, grid with 1200 lines/mm
• Silicon photodiode detector
• Parallel port for printer output
• USB port
• 4 position cell holder (10 mm) included
• Additional cell holders optionally available
• LCD display
• Deuterium and tungsten lamp
• Automatic wavelength adjustment

Scope of supply: Spectrophotometer, software for connection to PC, 4 glass cells, 2 quartz cells, protective cover

• Specifications LLG-uniSPEC 4
• Optical System: Single beam, grating 1200 lines/mm, silicon photodiode detector
• Wavelength range:
  Bandwidth: 190 … 1100 nm
  1.8 nm
• Wavelength accuracy:
  Wavelength repeatability:
  Wavelength setting: ±0.3 nm
  0.2 nm
  automatic
• Photometric accuracy:
  Photometric repeatability:
  Photometric range: ±0.3 % T
  0.2 % T
  -0.3-3 A, 0-200 % T, 0-9999 C
• Stability:
  Stray light: ±0.002 A/h at 500 nm
  ≤0.05 % T at 220 nm, 360 nm
• Data output:
  Printer port:
  Display: USB port
  parallel port
  320 x 240 Dots LCD
• Standard cell holder:
  Lamps: 4-position 10 mm cell changer
  D2 lamp and W lamp
