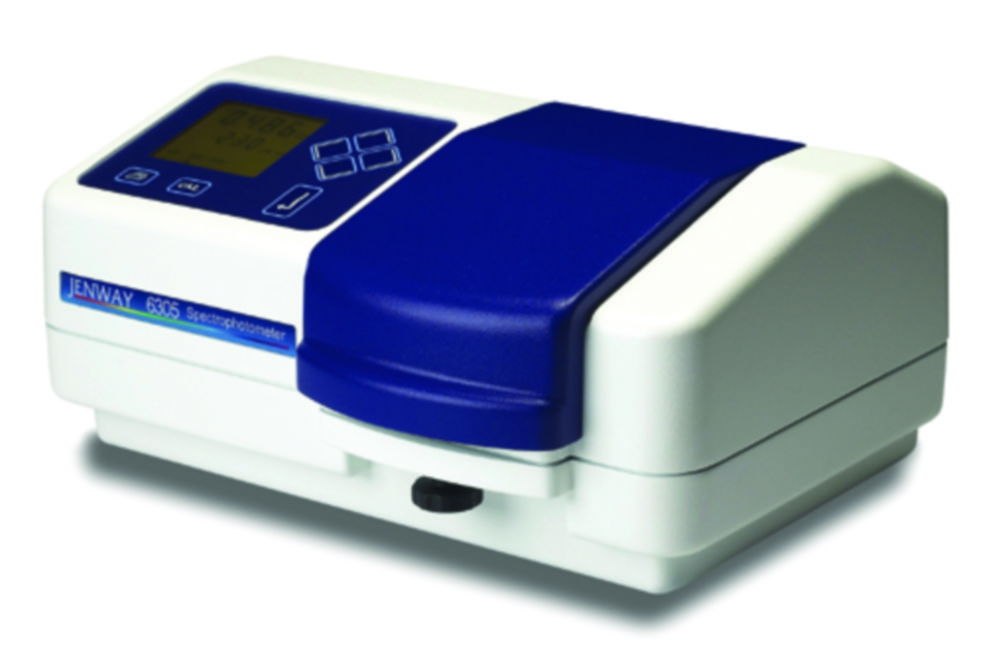

Spectrophotometer Models 6300 VIS / 6305 UV-VIS

Models 6300 and 6305 are general purpose visible and UV/Visible range spectrophotometers which are suited to a wide range of applications in education and quality control.

• Simple operation
• Versatile sampling system
• G.L.P. compliant
• Full interfacing capability
• Simple keypad and operating protocols designed to enable reliable operation by unskilled operators
• LCD gives simultaneous readout of wavelength and photometric result
• Error messages, prompts, mode indication and a choice of concentration units are presented in an easily understood format
• Cuvette holder allows 10mm to 100mm cells
• 3 year warranty

Supplied with: Mains lead, pack 100 disposable cuvettes, 10 x 10mm cell holder, PC Application Software on CD-ROM and operating instructions.

Various accessories e.g. sipper pump, cells, cell holders, cuvettes and lamps available on request.

• Specifications
  Optical system:
  Single beam
• Wavelength
  Range:

  Resolution:
  Accuracy:
  Bandwidth:
  198 to 1000nm (6305)
  320 to 1000nm (6300)
  1nm
  ±2nm
  8nm, 6nm over UV range

• Transmittance
  Range:
  Resolution:
  Stray light:
  Accuracy:
  0 to 199.9%
  0.1%
  <0.5% at 340 & 220nm
  ± 1%
• Absorbance
  Range:
  Resolution:
  -0.300 to 1.999A
  0.001A
• Concentration
  Range:
  Resolution:
  Units:
  -300 to 1999
  0.1/1
  ppm, mg/l, g/l, M, blank %
• Outputs: analogue (0 to 1999mV d.c.)
  RS232 serial port
• Light Source: Xenon flash lamp module (6305)
  Tungsten halogen (6300)
• Dimensions (W x D x H):
  Weight: 365 x 272 x 160mm
  6kg
• Supply requirements: 230V/50Hz
