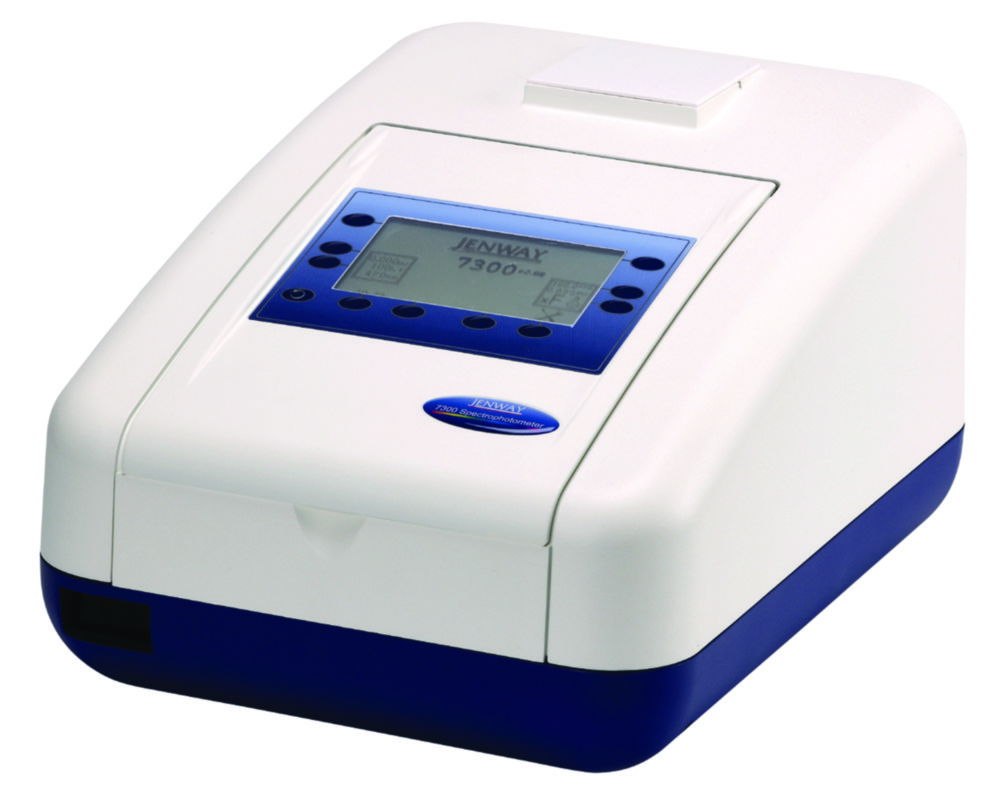

Spectrophotometer Models 7300 VIS / 7305 UV-VIS

Models 7300 and 7305 use icon driven software and have an improved navigation system for easy and intuitive usability. These instruments have measurement modes for absorbance, % transmittance and concentration. The 7300 and 7305 are easy to use and are ideal for use in education and general QC laboratories.

• Small footprint
• Autologging capabilities
• Press to read xenon lamp (7305)
• PC software included
• 3 year warranty

Supplied with: Mains lead, pack 100 disposable cuvettes, 10 mm x 10 mm cell holder, PC Application Software on CD-ROM and operating instructions.

• Optical system: Single beam
• Wavelength
• Range: 320 … 1000 nm (7300)
  198 … 1000 nm (7305)
• Resolution: 1 nm
• Accuracy: ±2 nm
• Bandwidth: 5 nm
• Transmittance
• Range: 0 … 199.9 %
• Resolution: 0.1 %
• Stray light: <0.5 %T
• Accuracy: ±1 %
• Absorbance: -0.3 … 2.5
• Concentration
• Range: -300 … 9999
• Resolution: Selectable 1/0.1/0.01/0.001
• Outputs: Analogue (0 to 1999 mV d.c.)
  RS232 serial port optional integrated printer
• Light Source: Tungsten halogen (7300)
  Xenon lamp (7305)
• Dimensions (W x D x H): 275 x 400 x 220 mm
• Weight: 6 kg
• Supply requirements: 230 V/ 50 Hz
