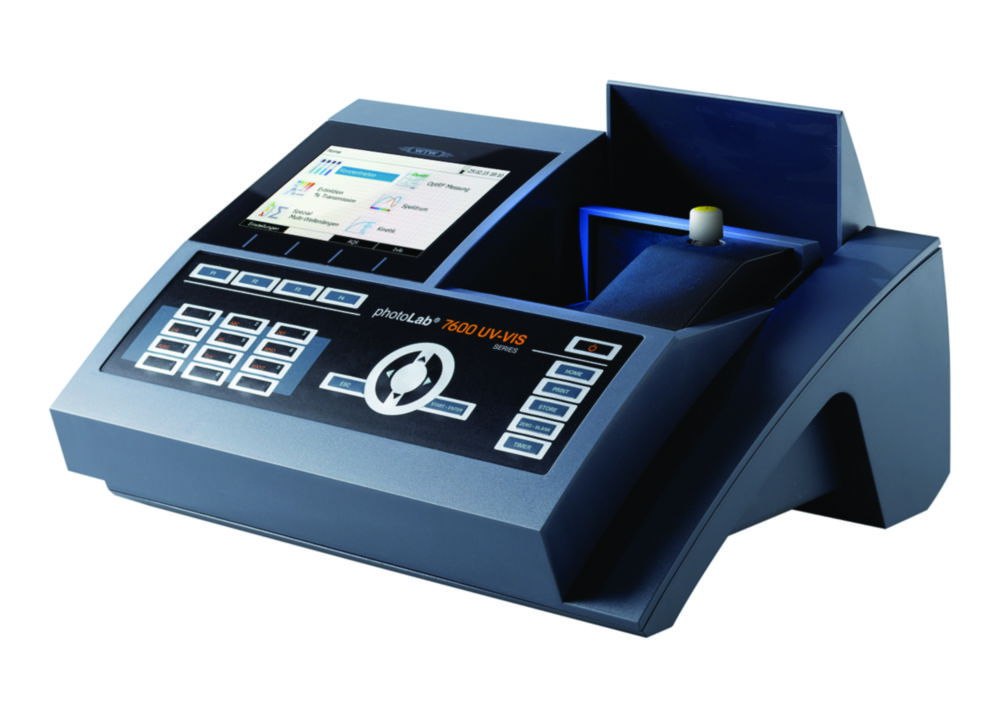

Spectrophotometer photoLab® 7100 VIS and photoLab® 7600 UV-VIS with OptRF
COD measurement without reagents.
The spectrophotometer of the photoLab® 7000 Series are universally usable and offer complete photometric
functionality with lauded user-interface and guidance on a brilliant HD 7″” color display. Pioneering is the optical reagent-free measurement (OptRF) of COD, Nitrate and Nitrite. No time-consuming digestion and no harmful chemicals required.
- Proven routine analysis for waste and drinking water, aquaculture, food & beverage, environmental monitoring and production
- Cost saving reagent-free OptRF measurement
- Universal for industrial, research and educational use
- Lab quality in the field: 4,5 kg light weight, with car battery and field case option
- Linking lab with Online-system WTW® IQ SENSORNET via IQ LabLink
- For 16 mm round cuvettes and 10, 20 and 50 mm rectangular cuvettes with automatic recognition
- Memory for 5000 values, spectra and kinetics approx. 40 MB, equivalent to approx. 500 spectra (300-900 nm) and 400 kinetics with 150 measured values
- More than 200 programmed methods, 1000 user defined methods, 20 profiles each for kinetics and absorption spectrum, extensive programming options
Routine Analysis:
- More than 250 programs for commercial test kits, standard parameters, direct readings of coloration, SAK, etc. as well as user-defined programming of routines
- Barcode recognition for tests in vials and rectangular cells and automatic cell recognition for 16, 10, 20 and 50 mm without adapter and automatic measurement range selection
- Up to three parallel timers
- Optional PC-Software Package for Brewery and color measurement from CIE to Yellowness
Spectral and universal analysis from 190 to 1100 nm:
- Spectral scans in various nm-steps, 700-2000 nm/min
- Kinetics and multi-wavelength readings including special methods like chlorophyll and ADMI color measurement
- Extensive programming tools for multistep and multi-wavelength functions with user guidance
AQA: Multi-level user-friendly AQA functions with administration tools and comprehensive checking aids for meter and reagents.
Data Management:
- Measurement data, PDF documents, spectra and kinetics data, with data filter for pre-selected data management
- External barcode reading option for uncoded test kits and sample ID
- Optional: PC-Software for GLP compliant data management
Toote variatsioonid
| IP code | Weight | Interfaces | Min. voltage | Power supply | Type | Catalog number | Accuracy | Accuracy | Depth | Dimensions (WxDxH) | Height | Illuminants | Max. voltage | Measuring method | Optical system | Photometric accuracy | Scattered light | Spectral bandwidth | Wavelength | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IP 30 | 4.5 kg | USB-A, USB-B, Ethernet | 100 V | 100 ... 240 V, 50/60 Hz | photoLab® 7600 UV-VIS | 6.268 620 | ±1 nm | 1 nm | 314 mm | 404 x 314 x 197 mm | 197 mm | Xenon | 240 V | UV-VIS | Split Beam | 143023 | 4 nm | 190 ... 1100 nm | 404 mm | 1.00 | |||
| IP 30 | 4.5 kg | USB-A, USB-B, Ethernet | 100 V | 100 ... 240 V, 50/60 Hz | photoLab® 7100 VIS | 6.268 619 | ±1 nm | 1 nm | 314 mm | 404 x 314 x 197 mm | 197 mm | Tungsten-halogen | 240 V | VIS | Split Beam | 143029 | 4 nm | 320 ... 1100 nm | 404 mm | 1.00 |
