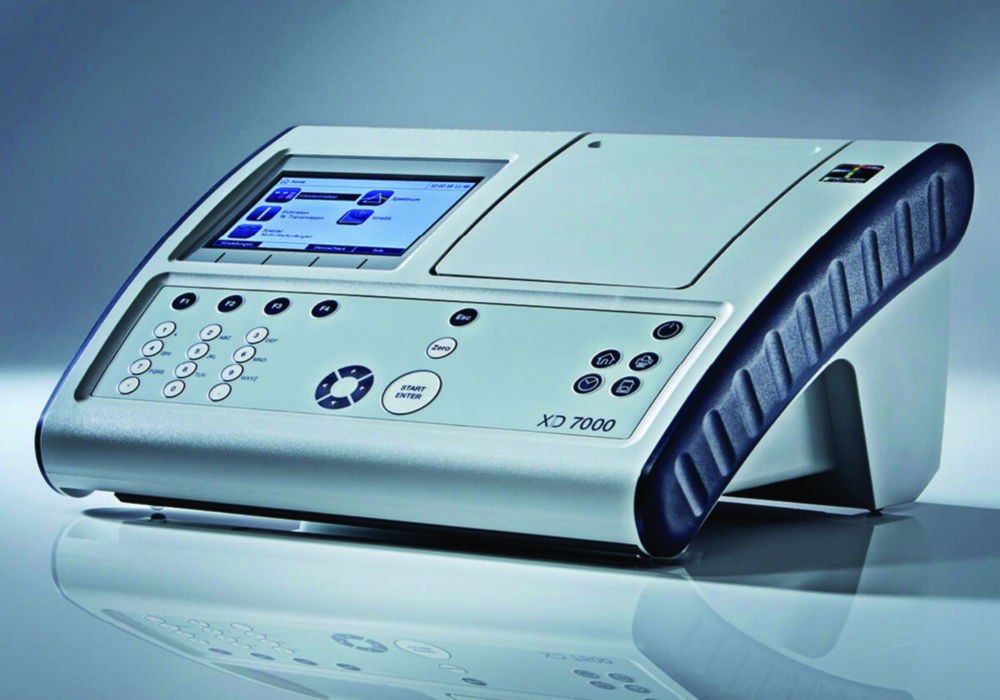

Spectrophotometers XD 7000 VIS and XD 7500 UV-VIS
UV-VIS and VIS spectrophotometers with dual beam optics. The instruments benefit from a barcode test recognition system, over 150 pre-programmed analytical methods and automatic cuvette detection. Analytical quality assurance procedures include checks of the photometer, the total system (including methods) and sample matrix effects. Further functions of the spectrophotometers include measurement of transmission and absorbance, scanning of spectra, kinetics analysis and creation of user-defined methods.
- Premium optical system with reference beam
- Automatic test recognition with internal barcode reader
- Supports round cuvettes with 13, 16, 24 mm and rectangular cuvettes with 10, 20, 50 mm
- Automatic cuvette type detection
- More than 150 analytical methods implemented
- 7” colour display and keypad
- Ethernet, USB
- 20 user profiles possible
- Up to 1000 user programmes
- Creation of up to 100 further user-defined methods
- Password protection possible
Toote variatsioonid
| Catalog number | Plug type | PK | Accuracy | Accuracy | Depth | Dimensions (WxDxH) | Height | Illuminants | Interfaces | IP code | Max. voltage | Measuring method | Min. voltage | Optical system | Photometric accuracy | Power supply | Scattered light | Spectral bandwidth | Type | Wavelength | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.272 436 | EU/UK/US | 1.00 | ±1 nm | 1 nm | 323 mm | 422 x 323 x 195 mm | 195 mm | Tungsten-halogen | USB-A, USB-B, Ethernet | IP 30 | 240 V | VIS | 100 V | Split Beam | 100 ... 240 V, 50/60 Hz | 143029 | 4 nm | XD 7000 VIS | 320 ... 1100 nm | 4.5 kg | 422 mm | |||
| 6.272 437 | EU/UK/US | 1.00 | ±1 nm | 1 nm | 323 mm | 422 x 323 x 195 mm | 195 mm | Xenon | USB-A, USB-B, Ethernet | IP 30 | 240 V | UV-VIS | 100 V | Split Beam | 100 ... 240 V, 50/60 Hz | 143029 | 4 nm | XD 7500 UV-VIS | 190 ... 1100 nm | 4.5 kg | 422 mm |
