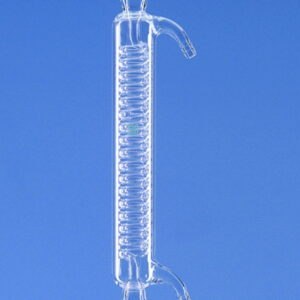

Spiral condensers, DURAN® tubing, with PP olives
Made of DURAN® tubing. For cooling condensates. Water connections with GL14 threads with two threaded plastic olives.
Toote variatsioonid
| Catalog number | PK | Connection | Connection size | Ground size | Material | Cooling surface | Length jacket | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 6.225 557 | 1.00 | PP olive | GL 14 | NS29/32 | DURAN® tubing | 820 cm² | 400 mm | ||
| 9.012 524 | 1.00 | PP olive | GL 14 | NS29/32 | DURAN® tubing | 1040 cm² | 500 mm | ||
| 9.012 522 | 1.00 | PP olive | GL 14 | NS14/23 | DURAN® tubing | 230 cm² | 160 mm | ||
| 9.012 523 | 1.00 | PP olive | GL 14 | NS29/32 | DURAN® tubing | 500 cm² | 250 mm |
