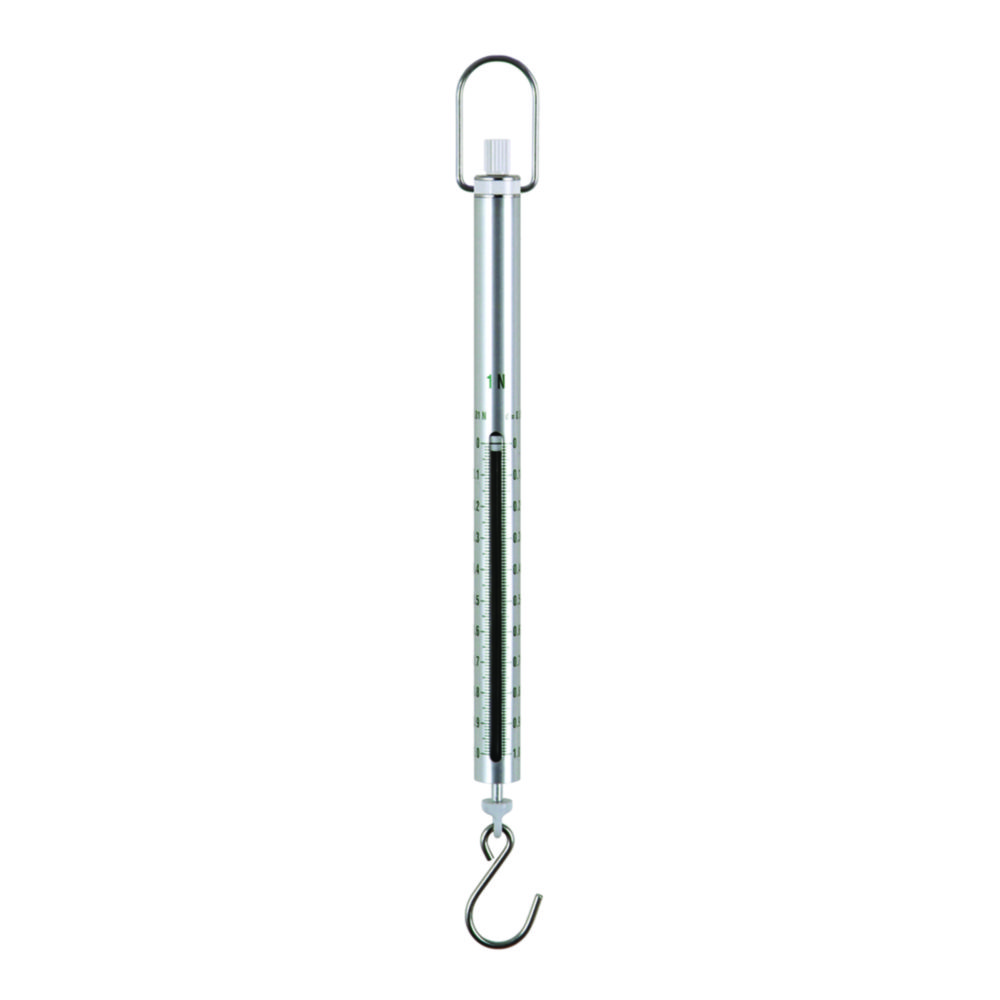

Spring balances 283
Precise, mechanical force gauge in robust aluminium housing with Newton readout.
- Aluminium scale tube
- Measuring result display in Newton
- Double scale: For fast or precise recording of the measurement result
- With drag pointer and carrying handle
- Backlash-free spring bearing with integrated tare screw for highly-precise adjustment
- Non-fatigue stainless steel spring
- Clip loop which can be freely rotated of the lower suspension bracket by 360°
- Wear-resistant, colour-anodised precision scale with high resolution for accurate readability of the measuring result
Toote variatsioonid
| Ø | Length | Material housing | Max. length | Measured range | Min. length | Catalog number | Readability | Waranty | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 mm | 370 ... 510 mm | Aluminium | 510 mm | 100 N | 370 mm | 6.239 952 | 1 N | 2 years | 350 g | 1.00 | ||
| 12 mm | 225 ... 305 mm | Aluminium | 305 mm | 1 N | 225 mm | 4.659 948 | 0.01 N | 2 years | 50 g | 1.00 | ||
| 12 mm | 225 ... 325 mm | Aluminium | 325 mm | 10 N | 225 mm | 7.619 587 | 0.1 N | 2 years | 50 g | 1.00 | ||
| 12 mm | 225 ... 325 mm | Aluminium | 325 mm | 6 N | 225 mm | 4.659 950 | 0.05 N | 2 years | 50 g | 1.00 | ||
| 12 mm | 225 ... 325 mm | Aluminium | 325 mm | 25 N | 225 mm | 4.659 951 | 0.2 N | 2 years | 50 g | 1.00 | ||
| 32 mm | 370 ... 510 mm | Aluminium | 510 mm | 500 N | 370 mm | 6.223 475 | 5 N | 2 years | 500 g | 1.00 | ||
| 32 mm | 370 ... 510 mm | Aluminium | 510 mm | 50 N | 370 mm | 6.222 436 | 0.5 N | 2 years | 350 g | 1.00 | ||
| 32 mm | 370 ... 510 mm | Aluminium | 510 mm | 200 N | 370 mm | 6.302 715 | 2 N | 2 years | 450 g | 1.00 |
