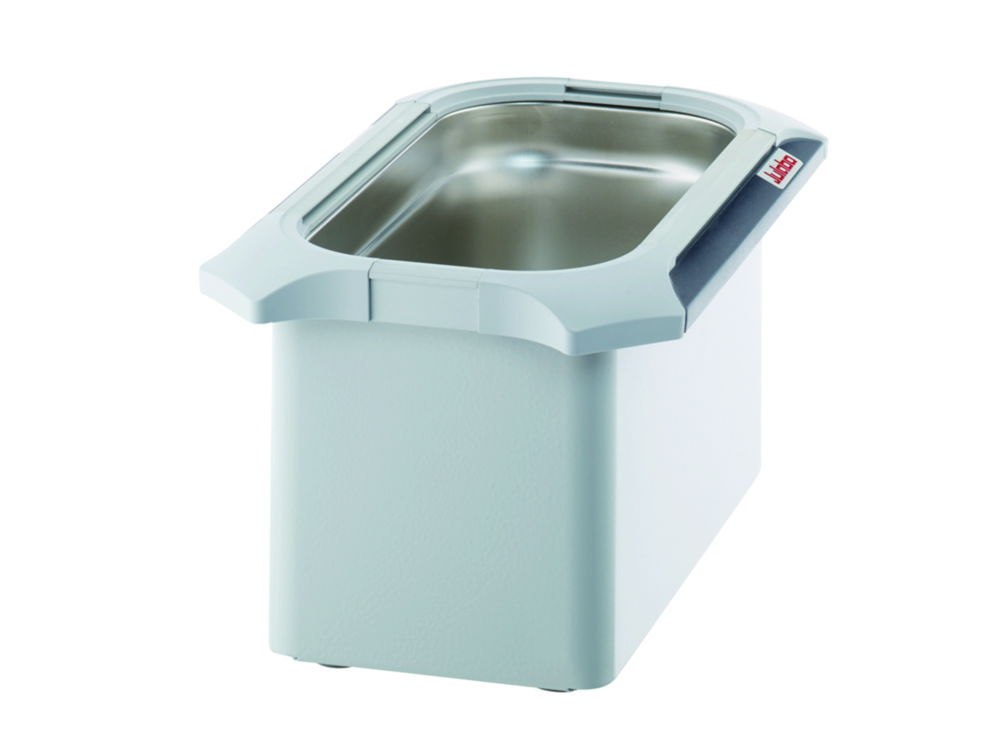

Stainless steel bath tanks for immersion thermostats CORIO™ C/CD
Stainless steel bath tanks (insulated) for immersion thermostats CORIO™.
Toote variatsioonid
| Depth int. | Ext. depth | Ext. height | Ext. width | Height int. | Int. width | Material | Max. capacity | Max. temperature | Min. capacity | Catalog number | Type | PK | Capacity | External dimensions (WxDxH) | Internal dimensions (WxDxH) | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 mm | 380 mm | 190 mm | 230 mm | 150 mm | 150 mm | Stainless steel | 150 °C | 4.658 017 | B5 | 1.00 | 3.5 ... 5 l | 230 x 380 x 190 mm | 150 x 300 x 150 mm | ||||
| 330 mm | 400 mm | 200 mm | 380 mm | 150 mm | 300 mm | Stainless steel | 150 °C | 4.658 018 | B13 | 1.00 | 9 ... 13 l | 380 x 400 x 200 mm | 300 x 330 x 150 mm | ||||
| 330 mm | 400 mm | 250 mm | 380 mm | 200 mm | 300 mm | Stainless steel | 150 °C | 4.658 019 | B17 | 1.00 | 13 ... 17 l | 380 x 400 x 250 mm | 300 x 330 x 200 mm | ||||
| 500 mm | 580 mm | 200 mm | 380 mm | 150 mm | 300 mm | Stainless steel | 150 °C | 4.658 020 | B19 | 1.00 | 14 ... 19 l | 380 x 580 x 200 mm | 300 x 500 x 150 mm | ||||
| 500 mm | 580 mm | 250 mm | 380 mm | 200 mm | 300 mm | Stainless steel | 150 °C | 4.658 021 | B27 | 1.00 | 17 ... 27 l | 380 x 580 x 250 mm | 300 x 500 x 200 mm | ||||
| 320 mm | 360 mm | 210 mm | 910 mm | 150 mm | 830 mm | Stainless steel | 150 °C | 4.658 022 | B33 | 1.00 | 26 ... 33 l | 910 x 360 x 210 mm | 830 x 320 x 150 mm | ||||
| 500 mm | 540 mm | 350 mm | 340 mm | 300 mm | 300 mm | Stainless steel | 150 °C | 4.658 023 | B39 | 1.00 | 35 ... 41 l | 340 x 540 x 350 mm | 300 x 500 x 300 mm |
