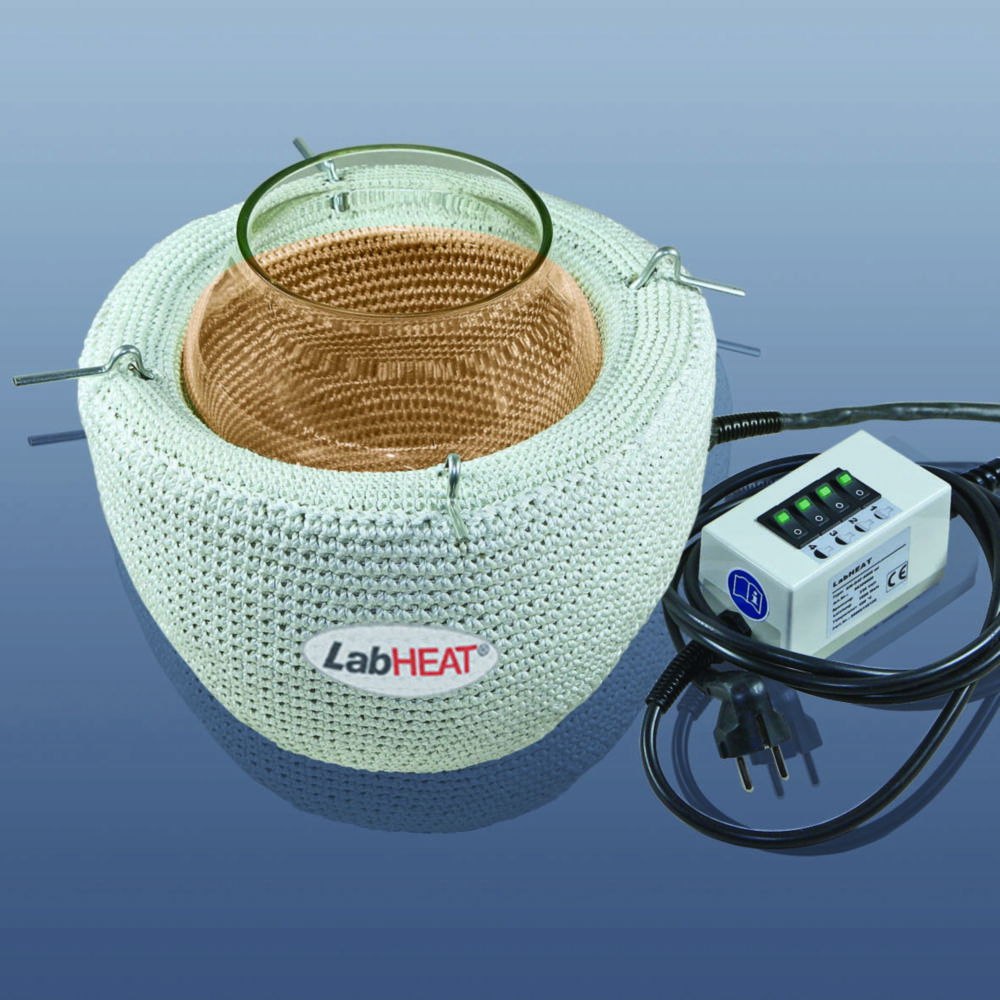

Standard heating mantles series KM-GF

LabHEAT^®-Heating cover for reaction vessels. Flexible glass yarn heating element, outer jacket in glass silk, with Ø 60 mm bottom outlet from 500 ml, max. heating element temperature 450 °C, 1.5 m power supply (earthed) cable with heating-zone and RCD (residual current detection.

Toote variatsioonid

atr_llg_diam_vessel	Ø	Dimensions (ØxH)	Height	Max. temperature	Max. voltage	atr_llg_no_of_heating_points	No. of heating zones	Catalog number	Plug type	Power supply	Rated capacity	atr_llg_vessels_capacity	PK
70 mm	150 mm	150 x 105 mm	105 mm	450 °C	230 V·AC	1	2	9.642 430	EU	230 V·AC	100 W	100 ml	1.00
106 mm	180 mm	180 x 145 mm	145 mm	450 °C	230 V·AC	1	2	9.642 433	EU	230 V·AC	500 W	1000 ml	1.00
140 mm	250 mm	250 x 195 mm	195 mm	450 °C	230 V·AC	1	2	9.642 434	EU	230 V·AC	800 W	2000 ml	1.00
70 mm	160 mm	160 x 130 mm	130 mm	450 °C	230 V·AC	1	2	9.642 431	EU	230 V·AC	200 W	250 ml	1.00
215 mm	330 mm	330 x 280 mm	280 mm	450 °C	230 V·AC	1	4	9.642 436	EU	230 V·AC	1600 W	6000 ml	1.00
200 mm	290 mm	290 x 220 mm	220 mm	450 °C	230 V·AC	1	4	9.642 435	EU	230 V·AC	1400 W	4000 ml	1.00
160 mm	180 mm	180 x 125 mm	125 mm	450 °C	230 V·AC	1	2	9.642 432	EU	230 V·AC	250 W	500 ml	1.00
240 mm	390 mm	390 x 310 mm	310 mm	450 °C	230 V·AC	1	4	9.642 437	EU	230 V·AC	2400 W	10000 ml	1.00
