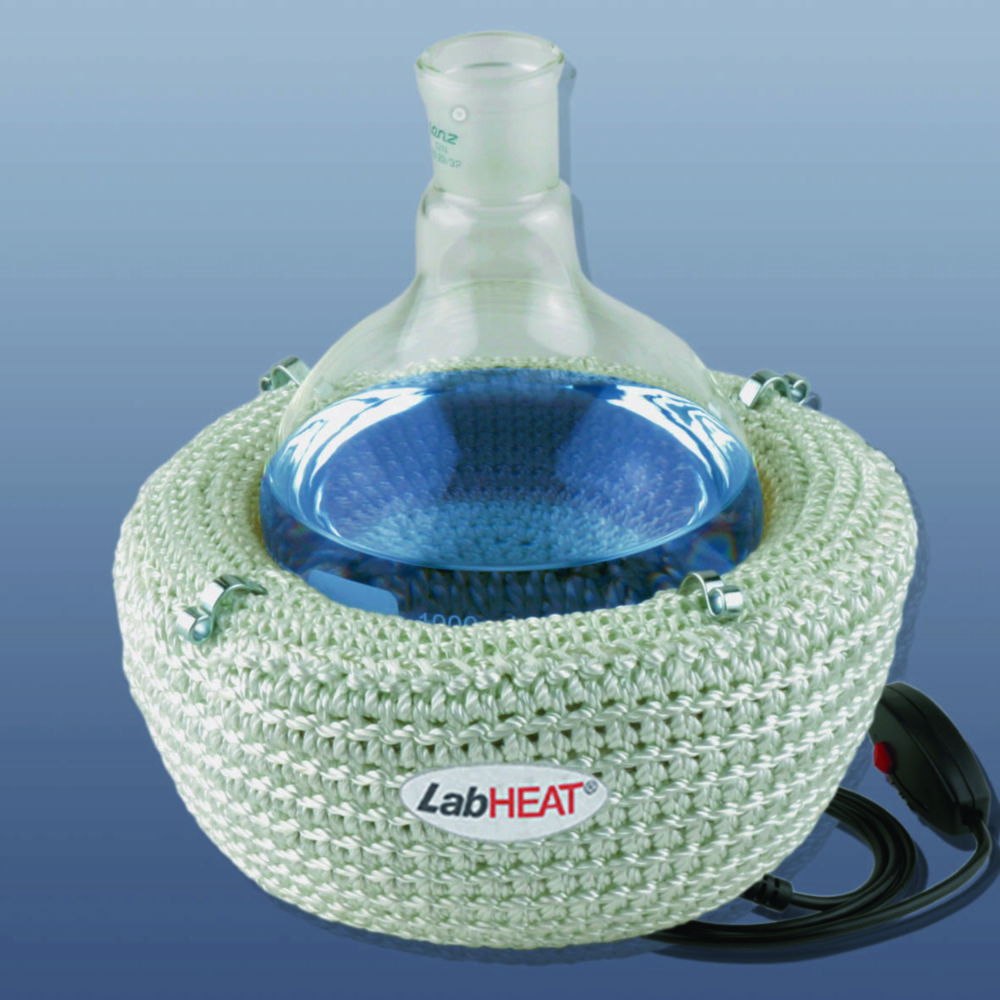

Standard heating mantles series KM-GH

LabHEAT^®-Heating mantles for flasks, round bottom. Designed identical to series KM-G, but the heating element is made of heat-resistant quartz yarn and permits a maximum temperature up to 900 °C; 1.5 m power supply (earthed) cable with heating-zone switch and RCD (residual current detection).

Toote variatsioonid

atr_llg_diam_vessel	Ø	Dimensions (ØxH)	Height	Max. temperature	Max. voltage	atr_llg_no_of_heating_points	No. of heating zones	Catalog number	Plug type	Power supply	Rated capacity	atr_llg_vessels_capacity	PK
131 mm	215 mm	215 x 120 mm	120 mm	900 °C	230 V·AC	1	2	9.642 443	EU	230 V·AC	750 W	1000 ml	1.00
166 mm	260 mm	260 x 140 mm	140 mm	900 °C	230 V·AC	1	2	9.642 444	EU	230 V·AC	1200 W	2000 ml	1.00
207 mm	300 mm	300 x 160 mm	160 mm	900 °C	230 V·AC	1	2	9.642 445	EU	230 V·AC	1800 W	4000 ml	1.00
105 mm	185 mm	185 x 110 mm	110 mm	900 °C	230 V·AC	1	2	9.642 442	EU	230 V·AC	500 W	500 ml	1.00
64 mm	155 mm	155 x 90 mm	90 mm	900 °C	230 V·AC	1	1	9.642 440	EU	230 V·AC	200 W	100 ml	1.00
85 mm	165 mm	165 x 100 mm	100 mm	900 °C	230 V·AC	1	2	9.642 441	EU	230 V·AC	300 W	250 ml	1.00
236 mm	340 mm	340 x 170 mm	170 mm	900 °C	230 V·AC	1	2	9.642 446	EU	230 V·AC	2500 W	6000 ml	1.00
