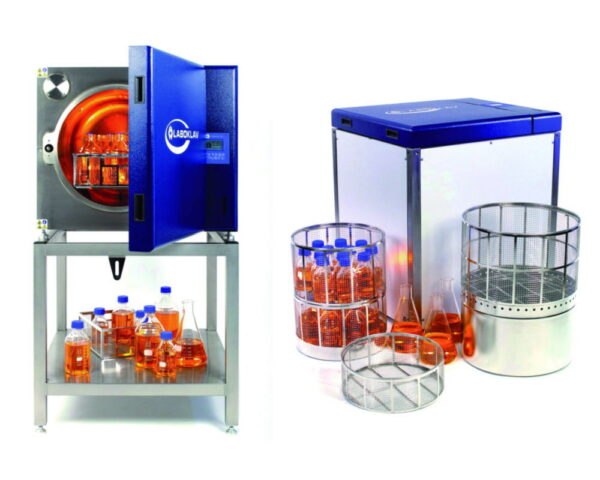

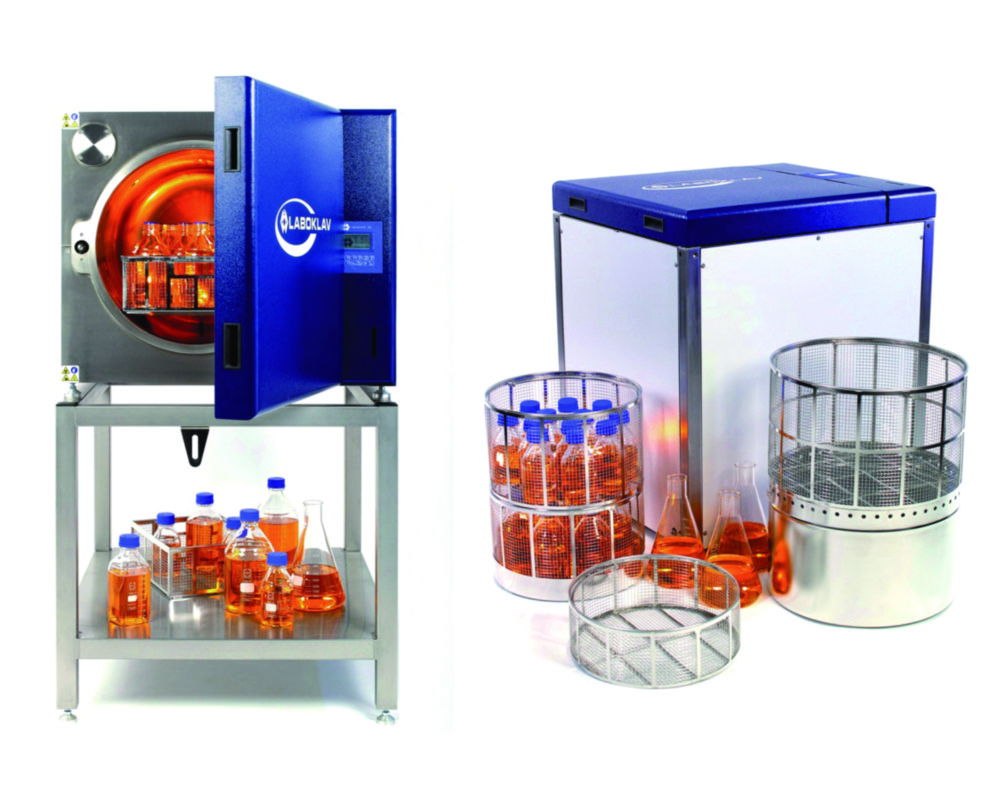

Steam steriliser LABOKLAV 55 – 195

Steam sterilisers are availible in wide range of chamber sizes between 55 l and 195 l, universal installation options as a free-standing or tabletop unit and numerous configurations provide individual solutions meeting your specific requirements. Typical areas of application for our units include all microbiological laboratories in research institutions, universities, quality controls in the pharmaceutical and food industries as well as waste sterilization, for example in the field of medical diagnosis. Laboklav series autoclaves are characterized by their reliability and quality. We manufacture our products exclusively in Germany to high and continuously monitored quality standards. Our units are TÜV-certified and approved for series production. They comply with the following standards:

• Pressure Equipment Directive 97/23/EU
• DIN 58950: Sterilization – Steam sterilizers for pharmaceutical products
• DIN 58951: Sterilization – Steam sterilizers for laboratory use

No accessories included, please inform us in your order if a horizontal or vertical device is required.

• Specifications 55 | 100 | 135 | 160 | 195
• Chamber volume: 55 l | 100 l | 135 l | 160 l | 195 l
• Chamber dimensions (Diam. x D): 410 x 460 mm | 410 x 760 mm | 500 x 660 mm | 500 x 760 mm | 500 x 990 mm
• Outer dimensions of free-standing unit (W x H x D): 740 x 765 x 600 mm | 740 x 1065 x 600 mm | 840 x 965 x 700 mm | 840 x 1065 x 700 mm | 840 x 1215 x 700 mm
• Outer dimensions of tabletop unit (W x H x D): 740 x 600 x 765 mm | 740 x 600 x 1065 mm | 840 x 700 x 965 mm | 840 x 700 x 1065 mm | 840 x 700 x 1215 mm
• Weight: 115 kg | 185 kg | 195 kg | 210 kg | 245 kg
• Max. allowable pressure (PS): 2,8 bar
• Max. allowable temperature (TS): 143 °C
• Heating power of steam generator: 3-6 kW, selectable | 6 kW, selectable | 6-10 kW, selectable | 6-10 kW, selectable | 10 kW
• Electrical connection: 3N 400 V ~, 50 Hz, 16 A
• Sterilization temperature: 98 … 135 °C, adjustable
