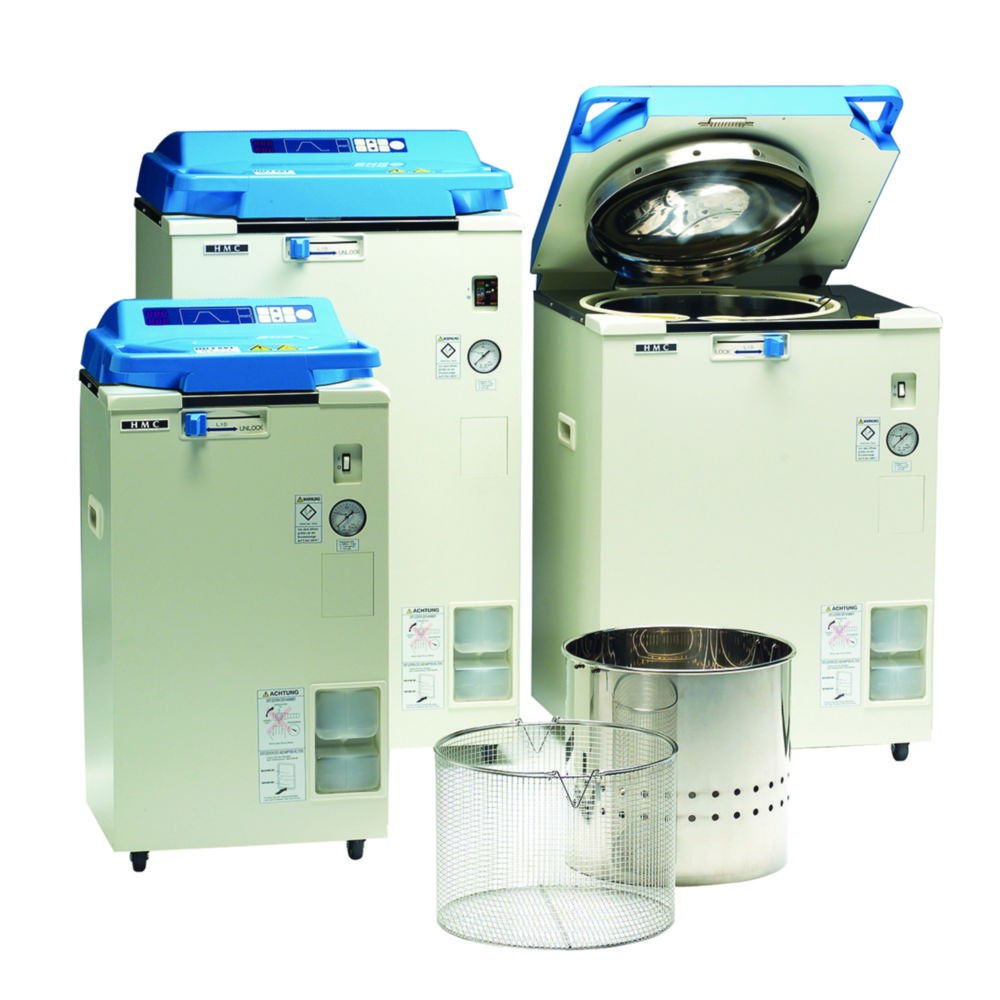

Steam sterilizers (autoclaves), HV series
Tireless, durable and ingeniously simple
- Certified according to the Pressure Equipment Directive 2014/68/EU
- Available in 4 sizes with 25, 50, 85 and 110 liters of effective usable volume
- Simple, reliable and with a long service life, your perfect choice for standard tasks
- Optionally available with flexible temperature sensor for the sterilization of liquids
- For all devices up to 110 liters only a single-phase power supply (220/240 V; 50/60 Hz) is required
- Timer function and 3 program groups with a max. of 6 programs including dissolution program, adaptions for customized programs are always possible
- No installation to a feed water supply required
- Castors for mobile use
- Easy to clean plastic surface with rounded edges in contact areas (no burns or injuries)
- Electrical, mechanical and constructional factors guarantee the highest level of quality and user protection
- The accessories make it possible to configurate the autoclave according to your wishes
- Exhaust air filters for laboratories of safety level S2 and higher are optionally available
Toote variatsioonid
Type | Power W | Working Temp. range °C | External dimensions (W x D x H) mm | Capacity l | Internal dimensions (Ø x H) mm | Weight kg | Catalog number | PK | Kogus | |
---|---|---|---|---|---|---|---|---|---|---|
HV-L25 | 1500 | 60 ... 126 | 480 x 460 x 950 | 25 | 240 x 550 | 41 | 7.980 025 | 1.00 | ||
HV-L50 | 2000 | 60 ... 135 | 540 x 530 x 1040 | 50 | 300 x 710 | 5,7 | 6.232 481 | 1.00 | ||
HV-L85 | 3000 | 60 ... 128 | 660 x 650 x 1000 | 85 | 420 x 615 | 71 | 9.842 418 | 1.00 | ||
HV-L110 | 4000 | 60 ... 123 | 660 x 650 x 1180 | 110 | 420 x 795 | 81 | 6.254 337 | 1.00 |
