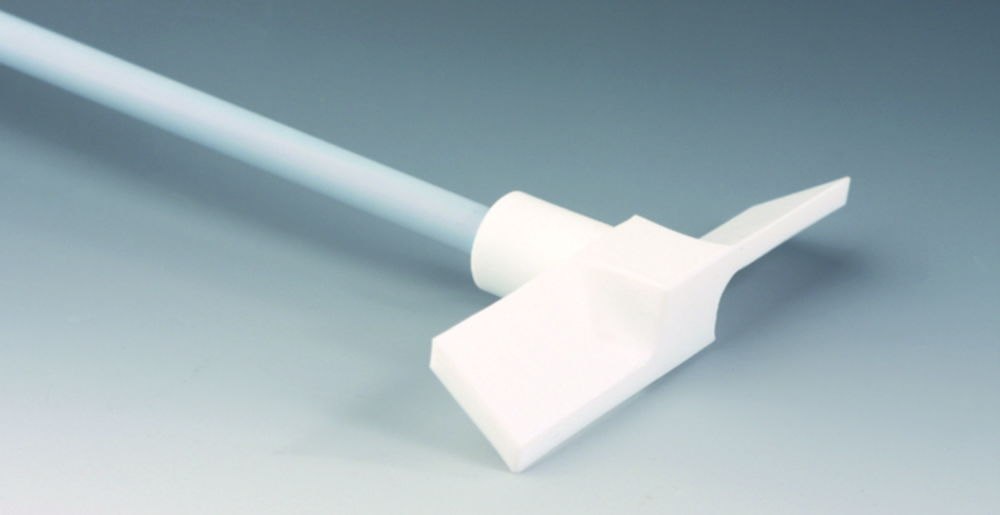

Stirrer Shafts with One Paddle, PTFE
PTFE-jacketed stainless steel shaft, paddle completely made of PTFE with two 45° angled blades. Universal chemical resistance since the product is only exposed to PTFE. Temperature resistance: from -200 to +250 °C. The product is sucked bottom-up, very good axial flow with low shear force.
Toote variatsioonid
| To fit chuck diam. mm | Shaft diam. mm | Length mm | Paddle diam. mm | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| 8.0 | 10 | 600 | 110 | 9.197 182 | 1.00 | ||
| 8.0 | 10 | 1000 | 110 | 9.197 183 | 1.00 | ||
| 6.5 | 8 | 450 | 80 | 6.702 385 | 1.00 | ||
| 8.0 | 10 | 800 | 110 | 7.601 133 | 1.00 | ||
| 6.5 | 8 | 600 | 80 | 9.197 181 | 1.00 | ||
| 6.5 | 8 | 800 | 80 | 6.257 474 | 1.00 |
