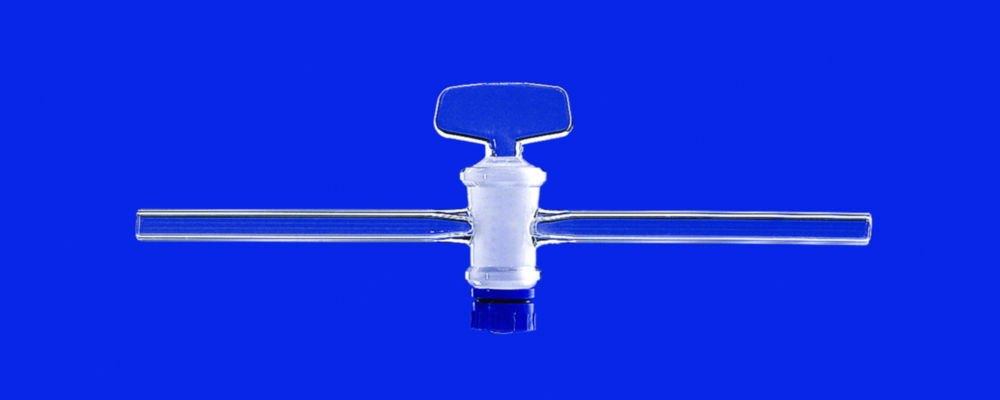

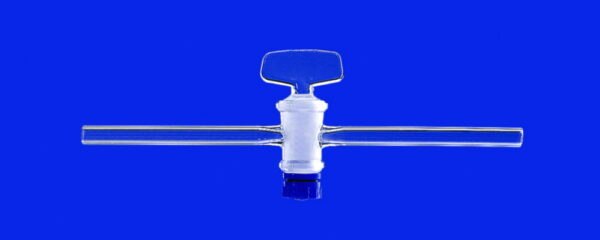

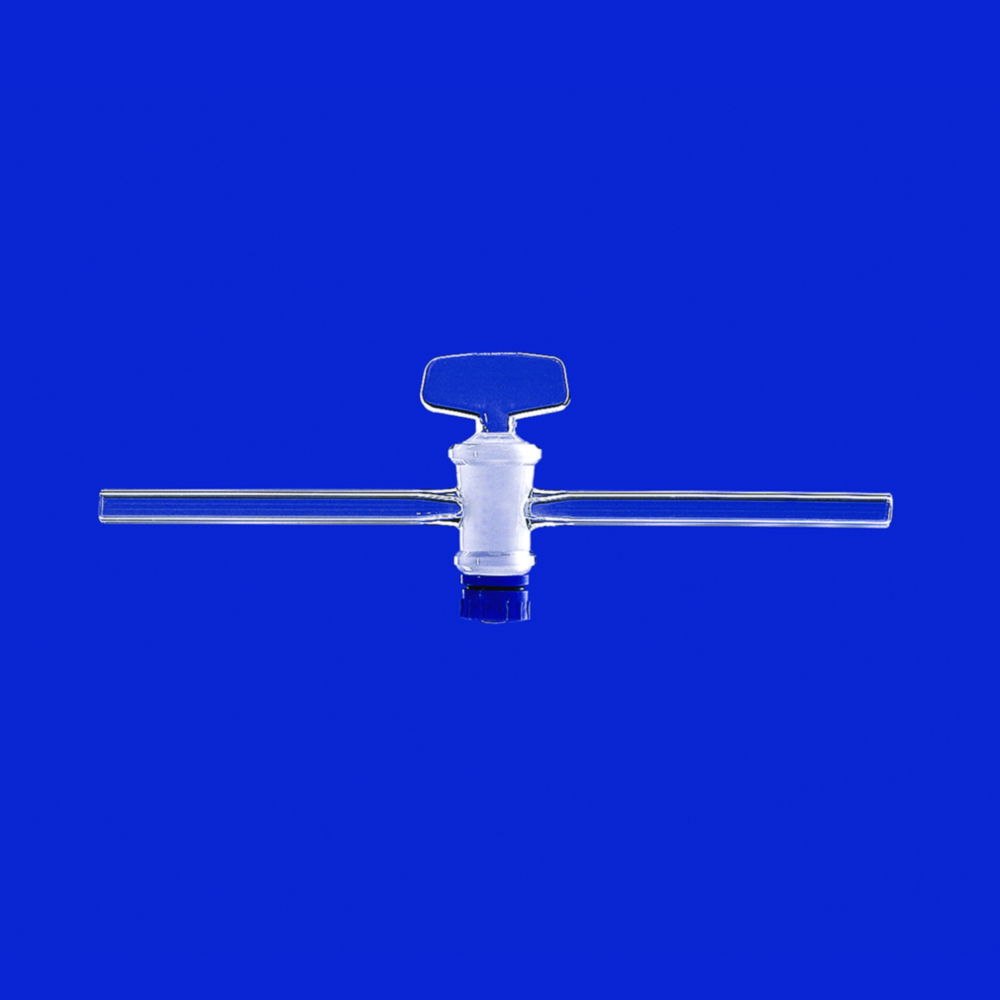

Stopcocks, with glass plug, borosilicate glass 3.3
Acc to DIN 12541-1 and in addition to DIN standard. With solid glass plug and retaining device. Straight bore. Leakage rate acc. to DIN 12540-1.
Toote variatsioonid
| Bore | Ground size | Material | Stopcock with | Catalog number | Shape (Stopcocks) | Standard | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 1.5 mm | NS 12,5 | Boro 3.3 | Glass key | 9.115 611 | 1-way, straight | DIN 12541-1 | 1.00 | ||
| 10.0 mm | NS 29,2 | Boro 3.3 | Glass key | 9.115 619 | 1-way, straight | DIN 12541-1 | 1.00 | ||
| 4.0 mm | NS 14,5 | Boro 3.3 | Glass key | 9.115 614 | 1-way, straight | - | 1.00 | ||
| 4.0 mm | NS 18,8 | Boro 3.3 | Glass key | 9.115 644 | 1-way, straight | DIN 12541-1 | 1.00 | ||
| 6.0 mm | NS 18,8 | Boro 3.3 | Glass key | 9.115 615 | 1-way, straight | - | 1.00 | ||
| 2.5 mm | NS 12,5 | Boro 3.3 | Glass key | 9.115 642 | 1-way, straight | - | 1.00 | ||
| 6.0 mm | NS 21,5 | Boro 3.3 | Glass key | 9.115 617 | 1-way, straight | DIN 12541-1 | 1.00 | ||
| 8.0 mm | NS 24,0 | Boro 3.3 | Glass key | 9.115 618 | 1-way, straight | - | 1.00 | ||
| 2.5 mm | NS 14,5 | Boro 3.3 | Glass key | 6.079 648 | 1-way, straight | DIN 12541-1 | 1.00 |
