Sub Blot Systems omniBLOT

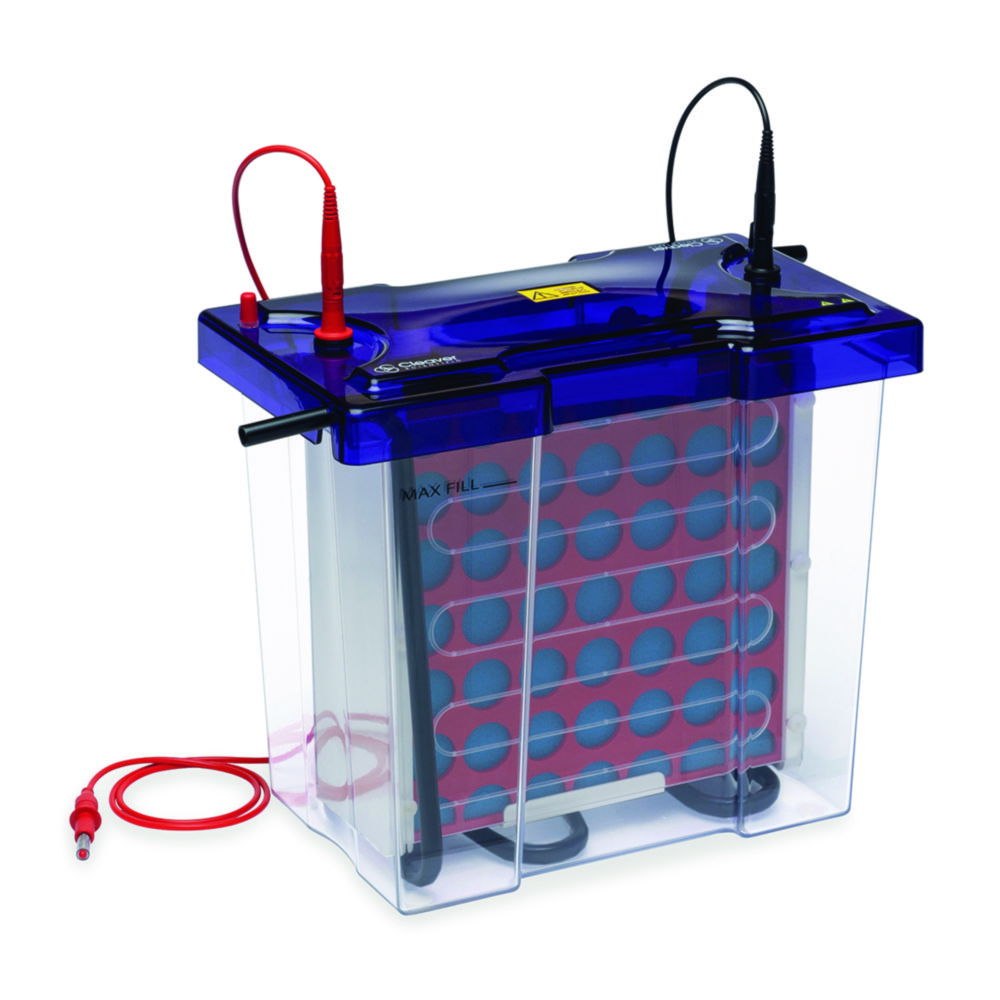

The omniBlot is an stand-alone unit for the tank-blot method. Each unit consists of an OmniPAGE tank and lid, a electroblotting insert as well as cassettes and fibre pads. The versatile design of the tanks and the matching lids are compatible with the vertical PAGE or IEF systems with the appropriate optional inserts.
- Mini system transfers up to 4 Mini gels
- Mini Wide system transfers up to 4 Mini Wide and 8 Mini gels
- Maxi system transfers up to 4 Maxi gels, 8 Mini Wide and 16 Mini gels
- Run-times ranging between 2 and 20 hours
- Rigid cassettes eliminate the formation of shadow bands
- Colour coded cassettes prevent reverse polarity for correct orientation
- Cooling with cooling packs at high transmission intensity
Toote variatsioonid
| Catalog number | PK | Blotting method | Depth gel | Depth | Depth transfer area | Dimensions (WxDxH) | Gel (WxD) | Height | Nominal capacity | Transfer area (WxD) | Transfer time | Type | Width gel | Width | Width transfer area | With cooling | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4.668 184 | 1.00 | Wet | 85 mm | 160 mm | 100 mm | 260 x 160 x 160 mm | 160 x 85 mm | 160 mm | 2800 ml | 200 x 100 mm | 1 ... 2 h | omniBlot Mini Wide | 160 mm | 260 mm | 200 mm | No | ||
| 9.584 751 | 1.00 | Wet | 85 mm | 130 mm | 100 mm | 150 x 130 x 190 mm | 80 x 85 mm | 190 mm | 1200 ml | 100 x 100 mm | 1 ... 2 h | omniBlot Mini | 80 mm | 150 mm | 100 mm | No | ||
| 9.584 752 | 1.00 | Wet | 175 mm | 180 mm | 200 mm | 270 x 180 x 300 mm | 160 x 175 mm | 300 mm | 6400 ml | 200 x 200 mm | 5 ... 20 h | omniBlot Maxi | 160 mm | 270 mm | 200 mm | No |
