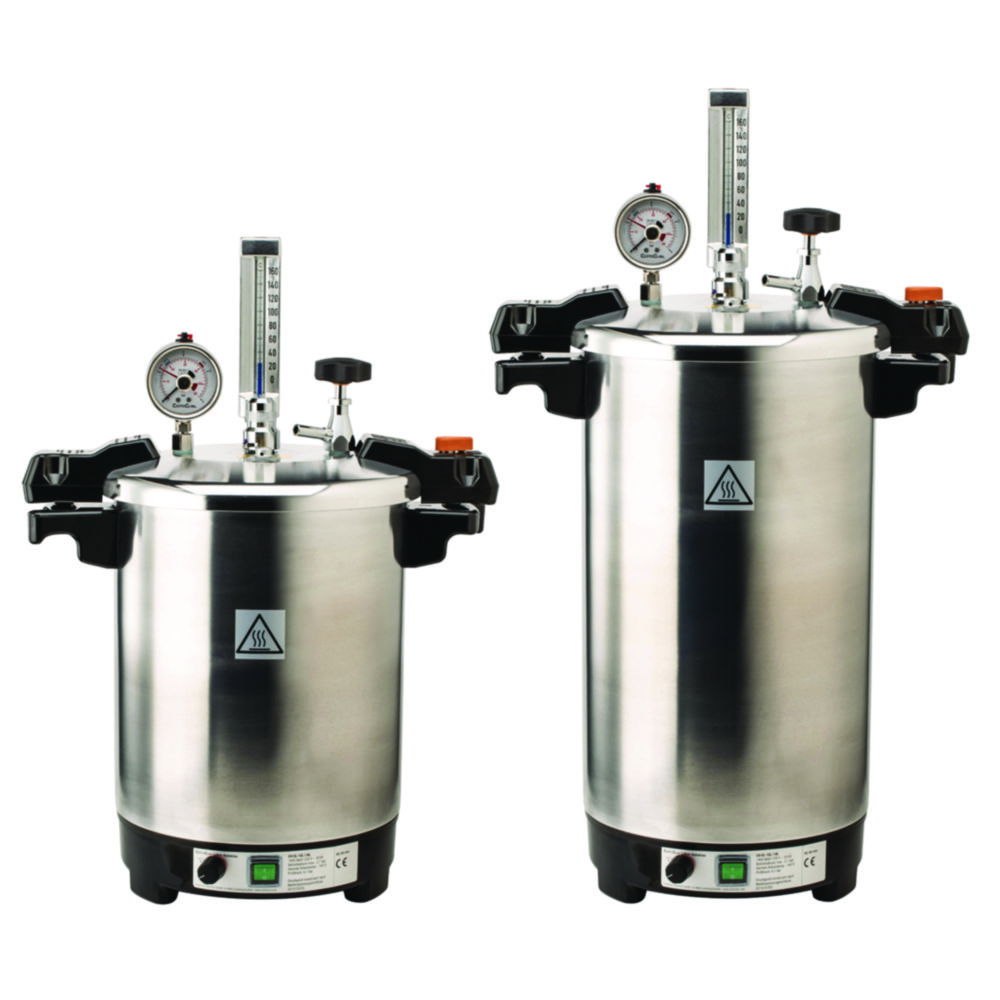

Tabletop autoclaves CertoClav EL
The vertical laboratory autoclave is suitable for sterilisation of unpackaged solids without hollow bodies, liquids, bottles, instruments, synthetic materials, food preservation, culture media preparation and waste. A precision thermometer, a control valve, and a precision manometer with drag indicator provide precise processes and accurate results for all applications. The autoclave is available in two versions, each with two temperature levels. These temperature settings are controlled via the control valve on the lid. These valves are not interchangeable, because the thermostat of the device is harmonized with and calibrated to the respective valve.
- Robust construction
- Thermostat controlled
- High heating power
- Venting by flow procedure
- Heating integrated in the base
Scope of supply: Autoclave, instrument tray, power cable
Toote variatsioonid
| Catalog number | PK | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | Height int. | Int. Ø | Material interior | Max. pressure | Max. voltage | Nominal capacity | Power supply | Temperature levels | Type | Weight | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.842 013 | 1.00 | 395 x 275 x 505 mm | 275 mm | 505 mm | 395 mm | 1900 W | 260 mm | 240 mm | Aluminium | 2.7 bar | 230 V | 12 l | 230 V, 50...60 Hz | 125/140 °C | EL 12 | 6.2 kg | ||
| 6.314 151 | 1.00 | 395 x 275 x 505 mm | 275 mm | 505 mm | 395 mm | 1900 W | 260 mm | 240 mm | Aluminium | 2.7 bar | 230 V | 12 l | 230 V, 50...60 Hz | 115/121 °C | EL 12 | 6.2 kg | ||
| 9.842 014 | 1.00 | 395 x 275 x 665 mm | 275 mm | 665 mm | 395 mm | 1900 W | 390 mm | 240 mm | Aluminium | 2.7 bar | 230 V | 18 l | 230 V, 50...60 Hz | 125/140 °C | EL 18 | 7.6 kg | ||
| 6.232 206 | 1.00 | 395 x 275 x 665 mm | 275 mm | 665 mm | 395 mm | 1900 W | 390 mm | 240 mm | Aluminium | 2.7 bar | 230 V | 18 l | 230 V, 50...60 Hz | 115/121 °C | EL 18 | 7.6 kg |
