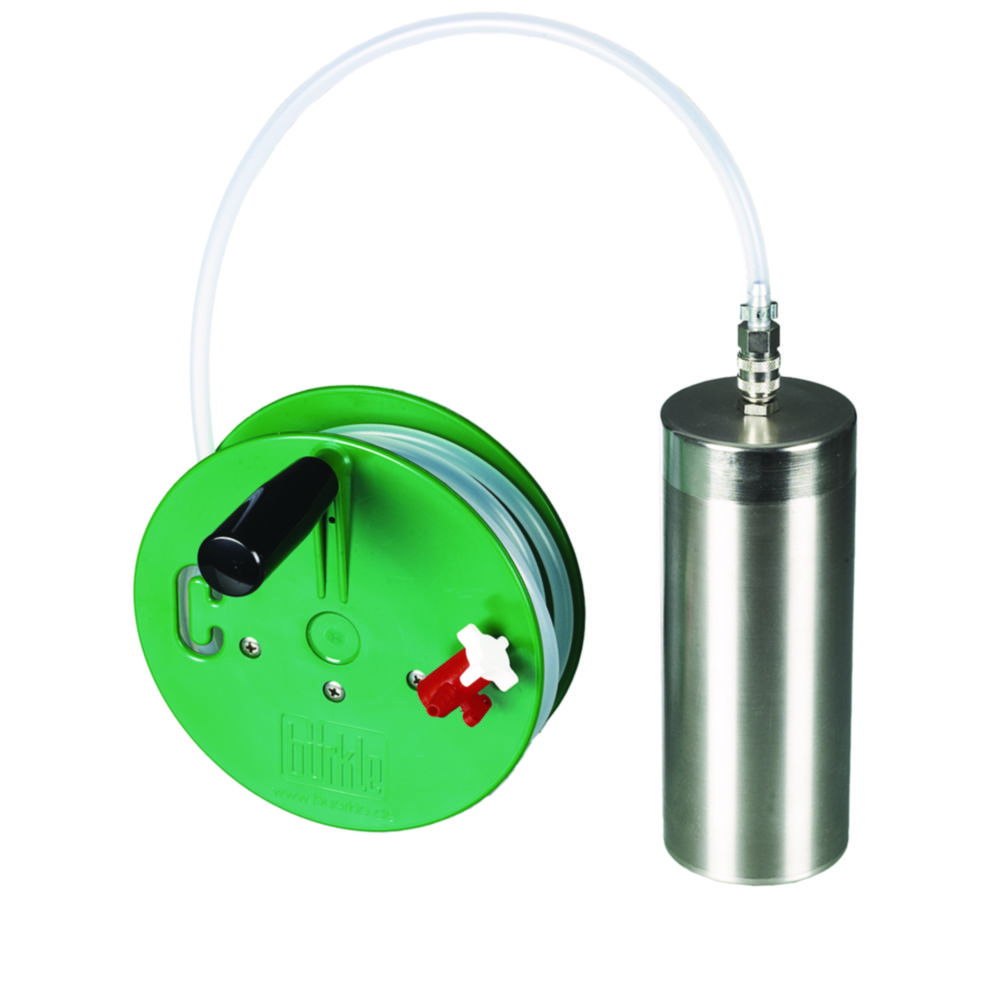

Target immersion cylinder

With the Target immersion cylinder, liquid samples can be taken from a particular point. The immersion cylinder is lowered on a strong and sealed tube. When the target has been reached, a valve at the tube end is opened. This vents the immersion cylinder and fills it with the sample. The immersion cylinder is pulled up and emptied via the screw thread. With 5 m venting tube. Screw off top enables easy cleaning.

Toote variatsioonid

ØHeightNominal capacityCatalog numberWeightPKKogus
75 mm210 mm500 ml7.623 9342600 g1.00
