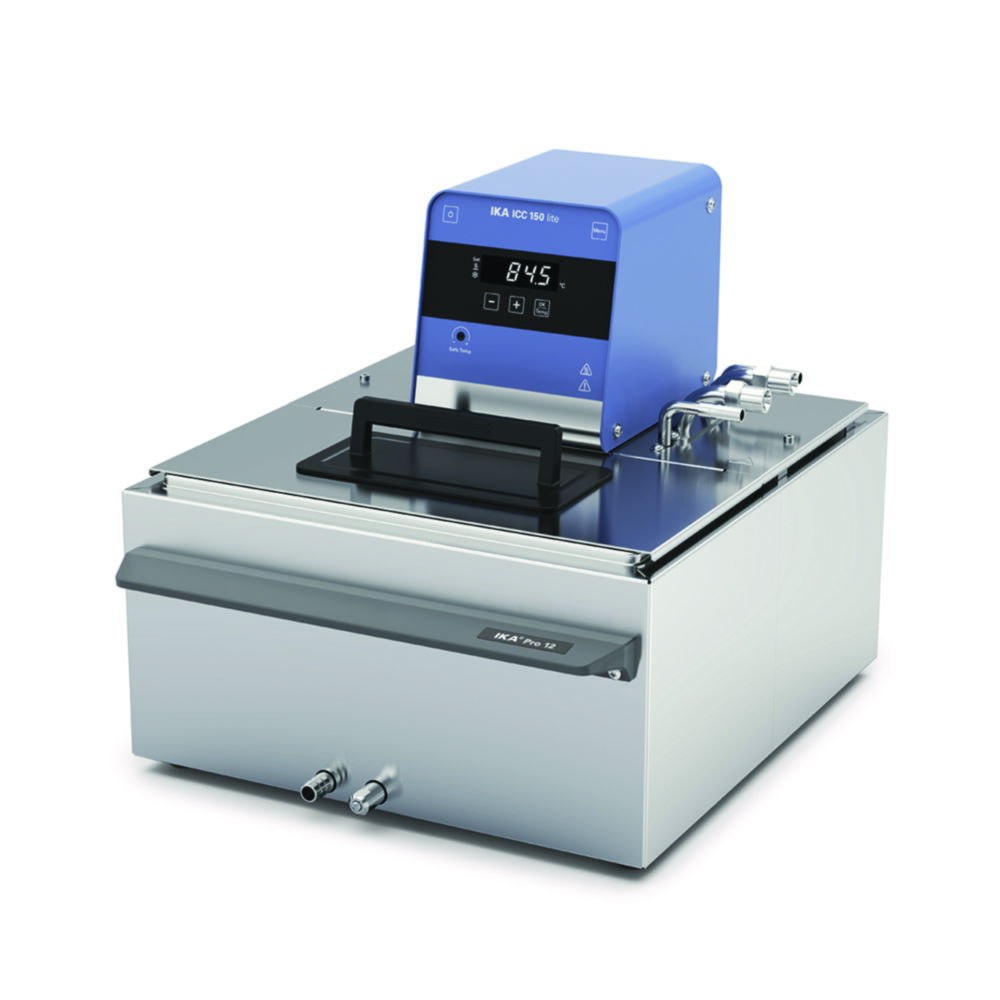

Temperature control systems ICC 150 lite pro 12 c
Scope of supply: Immersion circulator ICC 150 lite, stainless steel bath IB 12 pro (M), bath bridge BL.ICC lite big, cover CS.ICC medium, pump connection set PCS.ICC
Toote variatsioonid
| Heating capacity | Material bath | Max. flow rate | Max. temperature | Max. voltage | Operation | Catalog number | Plug type | Type | Type of display | With lid | With timer | PK | atr_llg_max_suction_pressure | Max. volume bath | Temperature | Power supply | Temperature | Volume bath | Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Width opening | Bath depth | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000 W | Stainless steel | 150 °C | 230 V | Membrane keyboard | 4.699 382 | EU | ICC 150 lite pro 12 c | LED | Yes | Yes | 1.00 | 0.1 bar | 12 l | RT | 230 V, 50...60 Hz | RT ... 150 °C | 12 l | 147 mm | 354 x 461 x 388 mm | 461 mm | 388 mm | 354 mm | 292 mm | 150 mm | |||
| 2000 W | Stainless steel | 150 °C | 230 V | Membrane keyboard | 4.699 414 | UK | ICC 150 lite pro 12 c | LED | Yes | Yes | 1.00 | 0.1 bar | 12 l | RT | 230 V, 50...60 Hz | RT ... 150 °C | 12 l | 147 mm | 354 x 461 x 388 mm | 461 mm | 388 mm | 354 mm | 292 mm | 150 mm | |||
| 2000 W | Stainless steel | 150 °C | 230 V | Membrane keyboard | 4.699 434 | CH | ICC 150 lite pro 12 c | LED | Yes | Yes | 1.00 | 0.1 bar | 12 l | RT | 230 V, 50...60 Hz | RT ... 150 °C | 12 l | 147 mm | 354 x 461 x 388 mm | 461 mm | 388 mm | 354 mm | 292 mm | 150 mm |
