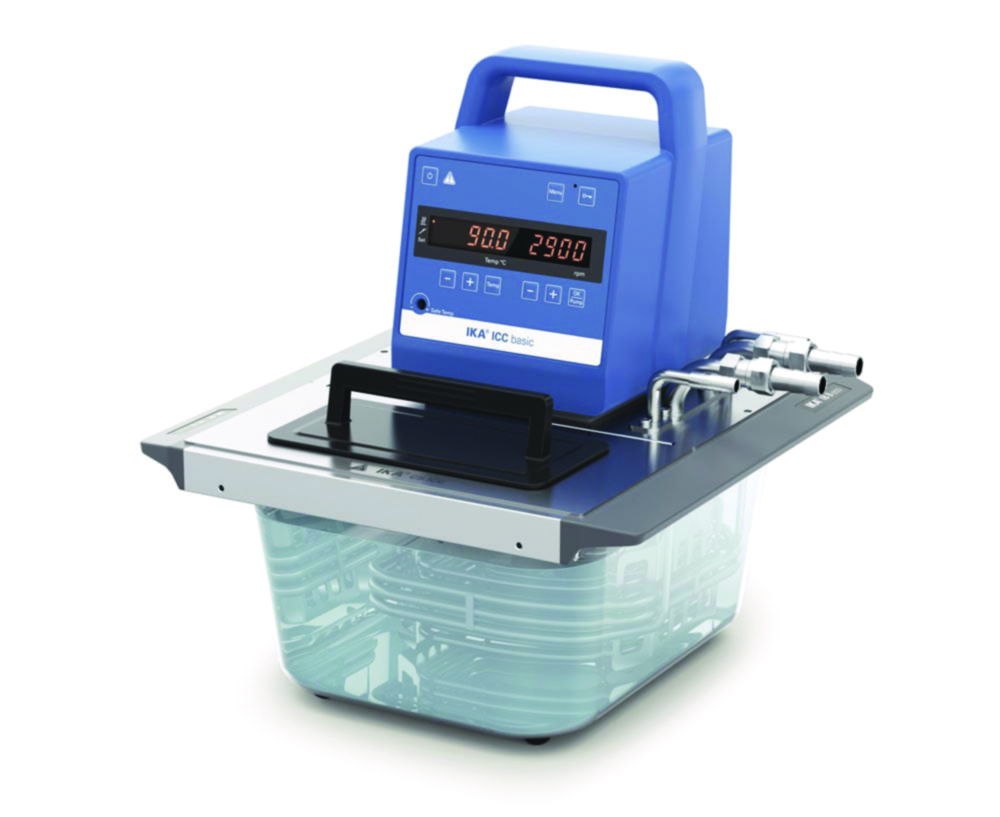

Temperature control systems ICC basic eco c, with plastic bath
Complete, ready-to-connect temperature control systems with immersion circulator, plastic bath and all required accessories. For liquid temperature control in a plastic bath tank. Suitable up to a temperature of 100 °C, for internal and external applications.
- Visual and acoustic warning functions for excess temperature, sub-level and over-level
- LED display for temperature and pump adjustment
- Menu navigation via push and turn buttons
- Adjustable safety circuit
- Calibration option
- USB/RS 232 interface
Scope of supply: compact immersion thermostat, plastic bath, cover, bath bridge, pump connection set, cooling coil
Toote variatsioonid
| Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Catalog number | Power supply | Temp. Stability | Temperature | Temperature | Type | Type of display | Volume bath | Weight | Width opening | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 105 mm | 320 x 349 x 335 mm | 349 mm | 335 mm | 320 mm | 2000 W | IP 21 | Plastic | 0.2 bar | 100 °C | 230 V | 8 l | -10 °C | 4.656 130 | 230 V, 50...60 Hz | 0,02 °C | RT | RT+10 ... 100 °C | ICC basic eco 8 c | LED | 8 l | 11.6 kg | 188 mm | 1.00 | |||
| 305 mm | 338 x 349 x 584 mm | 349 mm | 584 mm | 338 mm | 2000 W | IP 21 | Plastic | 0.2 bar | 100 °C | 230 V | 18 l | -10 °C | 4.656 131 | 230 V, 50...60 Hz | 0,02 °C | RT | RT+10 ... 100 °C | ICC basic eco 18 c | LED | 18 l | 13.8 kg | 245 mm | 1.00 |
