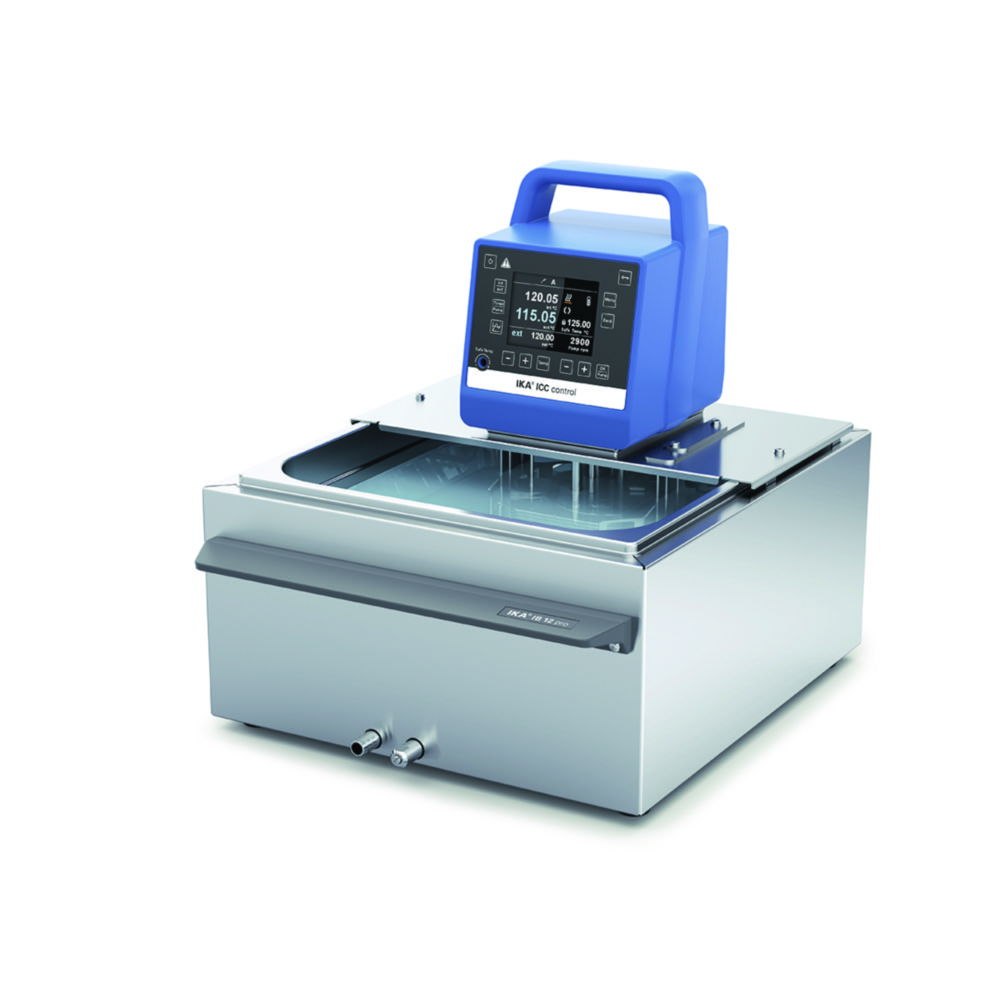

Temperature control systems ICC control 12 pro, with stainless steel bath
Complete, ready-to-connect temperature control systems with immersion circulator, stainless steel bath and all required accessories. For liquid temperature control in a stainless steel bath tank. Suitable up to a temperature of 150 °C, for internal and external applications. Up to 10 individual programs with up to 10 steps can be stored in the device. Packages with cooling coil are available for temperature control below or near ambient temperature.
- Visual and acoustic warning functions for excess temperature, sub-level and over-level
- TFT touch display for displaying and controlling all relevant parameters
- Adjustable safety circuit
- Connection for external Pt100 temperature probe
- USB/RS 232 interface
Scope of supply: compact immersion circulator, stainless steel bath, bath bridge
Toote variatsioonid
| Bath depth | Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Catalog number | Power supply | Temp. Stability | Temperature | Temperature | Type | Type of display | Volume bath | Weight | Width opening | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 100 mm | 374 x 377 x 388 mm | 377 mm | 388 mm | 374 mm | 2000 W | IP 21 | Stainless steel | 0.2 bar | 150 °C | 230 V | 9 l | -10 °C | 4.656 127 | 230 V, 50...60 Hz | 0,01 °C | RT | RT+10 ... 150 °C | ICC control pro 9 | TFT | 9 l | 14.1 kg | 195 mm | 1.00 | |||
| 150 mm | 127 mm | 354 x 461 x 388 mm | 461 mm | 388 mm | 354 mm | 2000 W | IP 21 | Stainless steel | 0.2 bar | 150 °C | 230 V | 12 l | -10 °C | 4.656 128 | 230 V, 50...60 Hz | 0,01 °C | RT | RT+10 ... 150 °C | ICC control pro 12 | TFT | 12 l | 15.2 kg | 255 mm | 1.00 | |||
| 150 mm | 309 mm | 354 x 641 x 388 mm | 641 mm | 388 mm | 354 mm | 2000 W | IP 21 | Stainless steel | 0.2 bar | 150 °C | 230 V | 20 l | -10 °C | 4.656 129 | 230 V, 50...60 Hz | 0,01 °C | RT | RT+10 ... 150 °C | ICC control pro 20 | TFT | 20 l | 16.3 kg | 255 mm | 1.00 |
