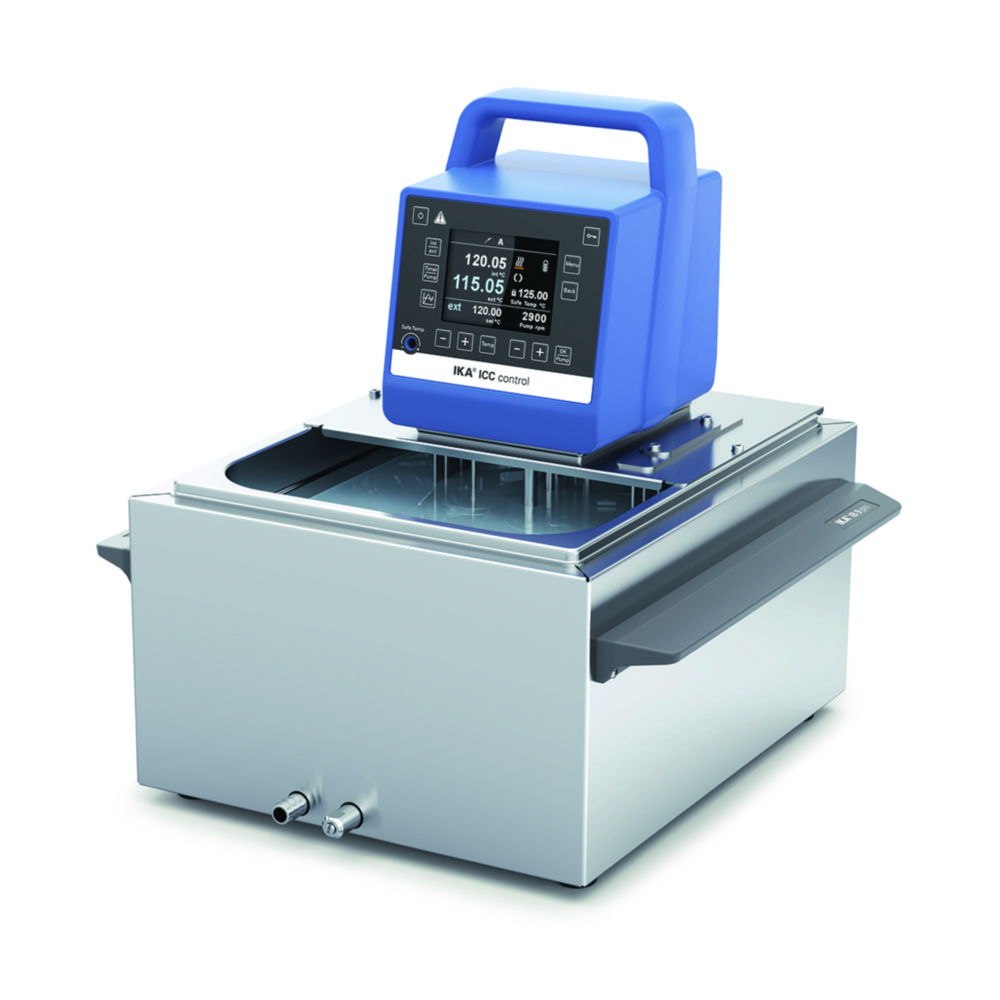

Temperature control systems ICC control pro c, with stainless steel bath
Complete, ready-to-connect temperature control systems with immersion circulator, stainless steel bath and all required accessories. For liquid temperature control in a stainless steel bath tank. Suitable up to a temperature of 150 °C, for internal and external applications. Up to 10 individual programs with up to 10 steps can be stored in the device.
- Visual and acoustic warning functions for excess temperature, sub-level and over-level
- TFT touch display for displaying and controlling all relevant parameters
- Adjustable safety circuit
- Connection for external Pt100 temperature probe
- USB/RS 232 interface
Scope of supply: compact immersion circulator, stainless steel bath, bath bridge, cover, pump connection set, cooling coil, temperature sensor
Toote variatsioonid
| Bath depth | Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Catalog number | Power supply | Temp. Stability | Temperature | Temperature | Type | Type of display | Volume bath | Weight | Width opening | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 127 mm | 354 x 461 x 388 mm | 461 mm | 388 mm | 354 mm | 2000 W | IP 21 | Stainless steel | 0.2 bar | 150 °C | 230 V | 12 l | -10 °C | 4.656 138 | 230 V, 50...60 Hz | 0,01 °C | RT | RT+10 ... 150 °C | ICC control pro 12 c | TFT | 12 l | 16.6 kg | 255 mm | 1.00 | |||
| 150 mm | 309 mm | 354 x 641 x 388 mm | 641 mm | 388 mm | 354 mm | 2000 W | IP 21 | Stainless steel | 0.2 bar | 150 °C | 230 V | 20 l | -10 °C | 4.656 139 | 230 V, 50...60 Hz | 0,01 °C | RT | RT+10 ... 150 °C | ICC control pro 20 c | TFT | 20 l | 18.4 kg | 255 mm | 1.00 | |||
| 150 mm | 100 mm | 374 x 377 x 388 mm | 377 mm | 388 mm | 374 mm | 2000 W | IP 21 | Stainless steel | 0.2 bar | 150 °C | 230 V | 9 l | -10 °C | 4.656 137 | 230 V, 50...60 Hz | 0,01 °C | RT | RT+10 ... 150 °C | ICC control pro 9 c | TFT | 9 l | 15.3 kg | 195 mm | 1.00 |
