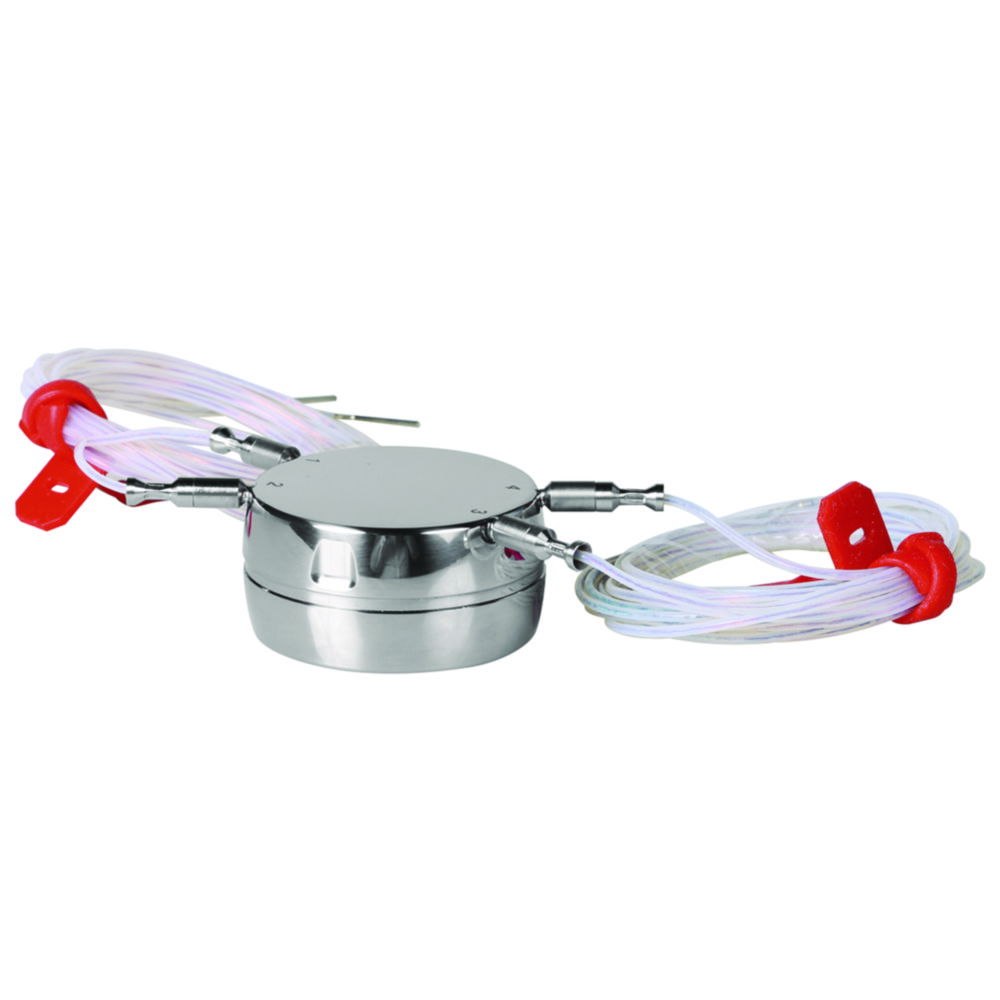

Temperature data logger EBI 12-T690
Data logger for temperature measurement during process validation in the steam sterilizer and for recording of empty chamber profiles.
- 4 measuring channels
- Data logger can be sterilised
- 4 radially arranged external, highly flexible PT1000 temperature sensors
- Real-time data transmission
- Fast response time
- Storage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurement
- Memory for up to 25080 measured values per measurement channel
- Stainless steel housing
- Factory calibration certificate: 0 °C, 60 °C, and 134 °C
Toote variatsioonid
| Battery/rechargeable battery | Ø sensor | Ø | Dimensions (ØxH) | Disposable | Height | IP code | Length sensor | Material housing | Max. measuring cycle | Min. measuring cycle | Catalog number | Resolution | Sensor (ØxL) | Temperature external | Type | Weight | With external sensor | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 x 3.6 V, Lithium | 1.2 mm | 48 mm | 48 x 24 mm | No | 24 mm | IP 68 | 600 mm | Stainless steel | 24 h | 250 ms | 4.713 178 | 0.01 °C | 1.2 x 600 mm | -20 ... 150 °C | EBI 12-T690 | 110 g | Yes | 1.00 |
