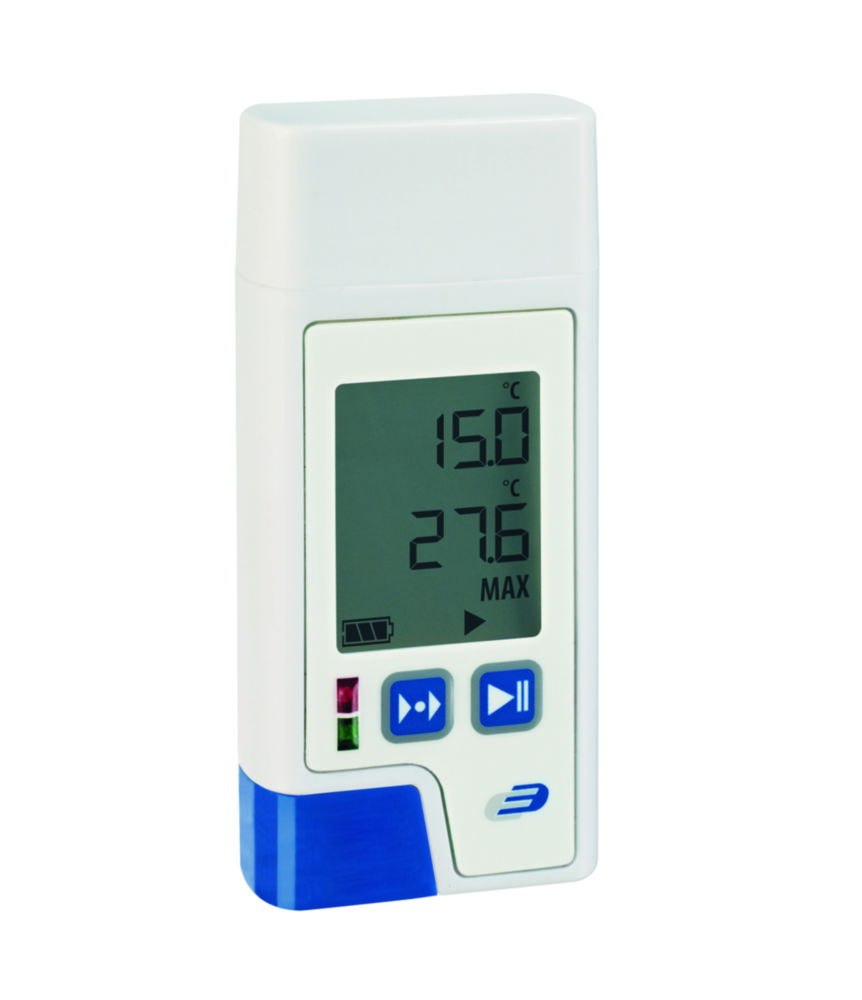

Temperature data logger LOG200
Data logger for monitoring and recording the temperature during storage and transportation of sensitive products. Measurement data can be transferred to a PC via the integrated USB interface. Free LogConnect software for configuration (alarms, interval, changing display settings) or LogGraph2 for convenient graphical and tabular display of measured values, including drag and zoom. Software is available for download.
- Incl. calibration certificate
- Memory for 150000 readings
- Usable without software (pre-programmed 15 minute reading interval)
- Automatic output as PDF file
- Recording interval adjustable (10 seconds to 24 hours)
- Max-Min values in the display (resettable)
- Time marking function during recording (time marker)
- Motion sensor for shock recording e.g. change of location or opening of windows and doors
- Battery life approx. 4 years (with recording interval >15 minutes)
- Incl. wall mount
- Status and alarm LEDs with acoustic signal (buzzer)
- HACCP compliant in accordance with EN 12830
- IP65 waterproof
Scope of supply: Temperature data logger, battery (1/2 AA, 3.6 V), wall mount
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Disposable | Height | IP code | Material housing | Max. measuring cycle | Max. temperature | Min. temperature | Catalog number | Resolution | Temperature | Type | Weight | Width | With external sensor | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 91.5 mm | 42 x 91.5 x 20 mm | No | 20 mm | IP 65 | ABS | 15 min | 70 °C | -40 °C | 6.284 757 | 0.1 °C | -40 ... 70 °C | LOG200 | 70 g | 42 mm | No | 1.00 |
