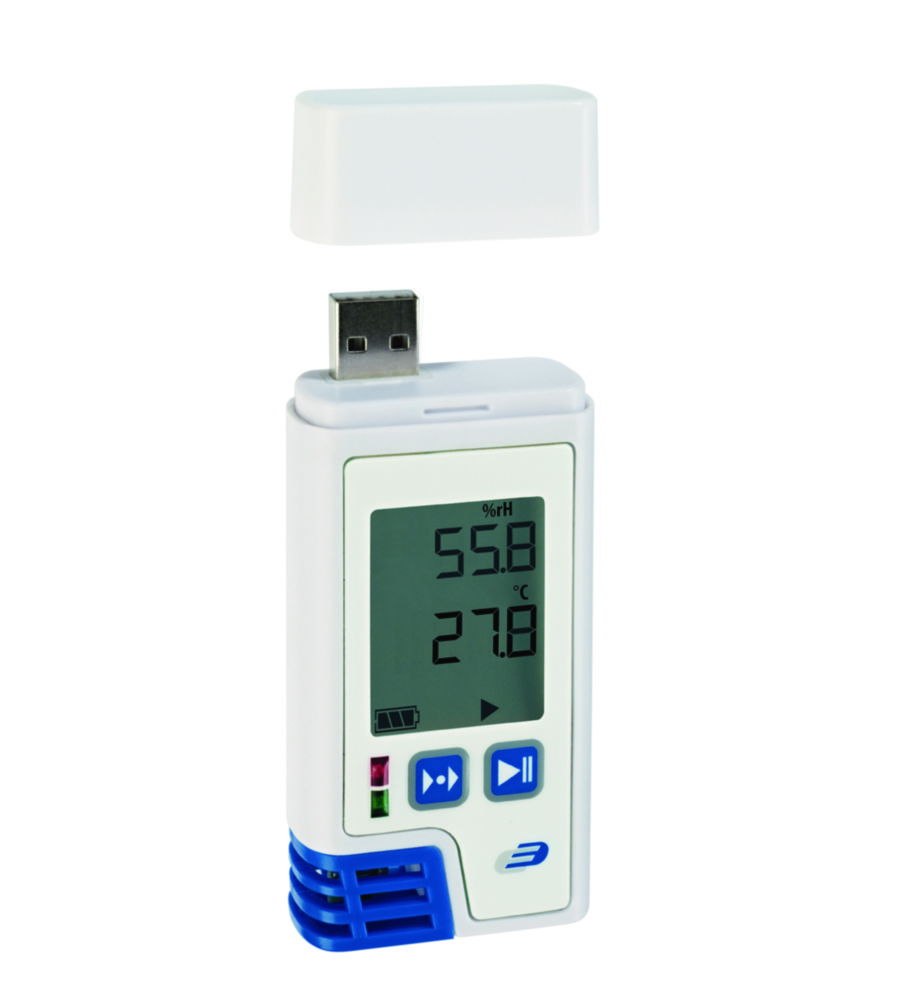

Temperature / Humidity data logger LOG 210
- PDF-data logger with display
- Memory size: 100.000 measurements
- Usable without software (default settings) (5-minute-interval, without alarm settings)
- Automatic PDF creation
- Movement sensor for shock recording e.g.: door or windows closing
- Free adjustable recording interval: 10 seconds to 24 hours
- Max-Min-Display memory (resettable)
- Time marking functions for measuring results
- Battery lifetime approx. 4 years (recording interval >15 minutes)
- Status- and Alarm-LEDs
- Includes wall mount
Free software LogConnect, for configuring (alarms, interval, changing display settings) or LogGraph2 for comfortable graphical and tabular display of measured values, incl. drag and zoom. Software is available as download.
- Specifications
- Temperature
- Measuring range: -40 to +70 °C
- Accuracy: 0.1 °C
- Precision: ±0.5 °C (0 to +60 °C), otherwise ±1.0 °C
- Humidity
- Measuring range: 0 to 100 % R.H.
- Resolution: 0.1% R.H.
- Accuracy: ±3 % R.H. (40 to 60 %), ±3.5 % R.H. (20 to 40 % and 60 to 80 %), otherwise ±5 % R.H.
-
Interface:
Housing: USB (integr.)
Plastic (ABS) - Battery: 1 x 3,6 Volt Lithium ½ AA
- Dimensions: 91.5 x 42 x 20 mm
- Weight: approx. 70 g
Toote variatsioonid
| Catalog number | PK | Depth | Dimensions (WxDxH) | Height | Max. measuring cycle | Max. temperature | Min. measuring cycle | Min. temperature | Resolution | Temperature | Type | Weight | Width | With external sensor | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.284 758 | 1.00 | 20 mm | 42 x 20 x 91.5 mm | 91.5 mm | 24 h | 70 °C | 10 sec | -40 °C | 0.1 °C | -40 ... 70 °C | LOG210 | 70 g | 42 mm | No |
