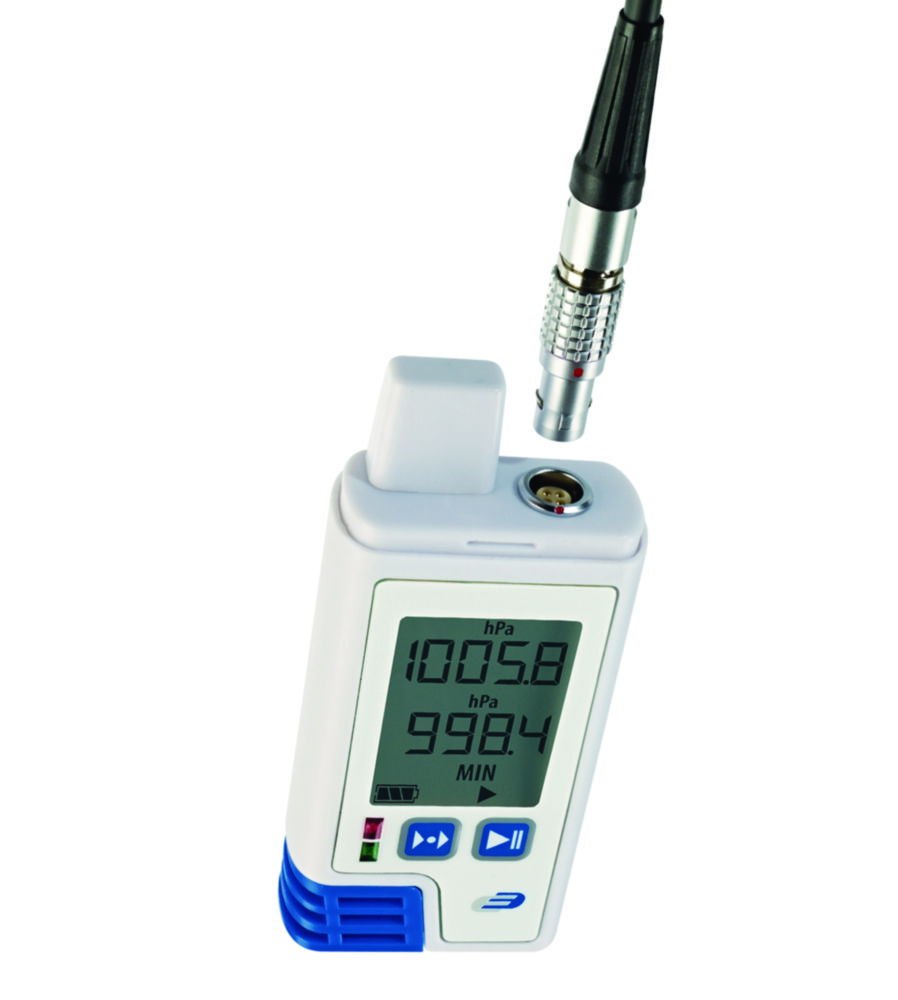

Temperature, humidity, pressure and CO2 logger LOG220E
Data logger for temperature, humidity and pressure recording with an external connection for a CO2 sensor or humidity, pressure and temperature sensor.
- Freely adjustable recording interval from 10 seconds to 24 hours
- Min- and Max-values can be reset in the display
- Time marking function (“Time Marker”) during data recording
- With movement sensor for shock recording
- Memory for approx. 60000 measurements
- Automatic output as PDF file, device can also be used without software
- No driver installation needed
- Status and alarm LEDs, with buzzer
- Display can be switched off
- Battery life > 4 years at > 15 min measuring interval
- USB interface for data transfer
- Software available for download on the manufacturer’s website (free of charge)
Temperature, pressure humidity and CO2 sensors are available separately.
Scope of supply: Data logger, wall mount, battery (1/2 AA 3.6 V), USB cover, screws and dowels
Toote variatsioonid
| Catalog number | PK | Air pressure | Depth | Dimensions (WxDxH) | Height | Max. air pressure | Max. measuring cycle | Max. temperature | Min. air pressure | Min. measuring cycle | Min. temperature | Resolution | Temperature external | Temperature | Type | Weight | Width | With external sensor | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.311 947 | 1.00 | 300 ... 1100 hPa | 20 mm | 42 x 20 x 91.5 mm | 91.5 mm | 1100 hPa | 24 h | 70 °C | 300 hPa | 10 sec | -40 °C | 0.1 °C | -200 ... 850 °C | -40 ... 70 °C | LOG220E | 70 g | 42 mm | No |
