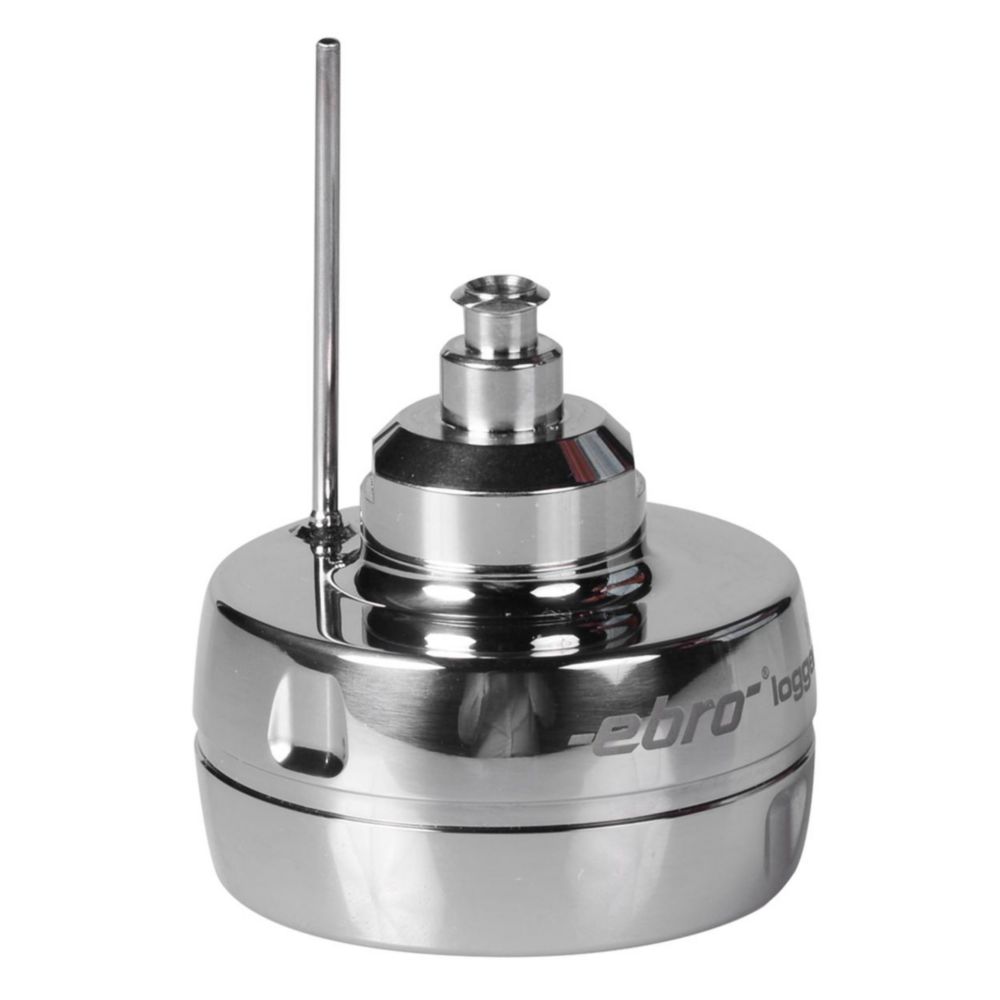

Temperature/pressure data logger EBI 12-TP231
Temperature/pressure data logger for process validation in the washer-disinfector, endoscope washer, and steam sterilizer.
- Data logger can be sterilised
- 1 axially arranged external, rigid PT1000 temperature sensor
- 1 internal piezoresistive pressure sensor with Luer-Lock connection
- Real-time data transmission
- Fast response time
- Storage modes: Endless measurement, measurement upon start time, measure immediately until end of memory, start/stop measurement
- Memory for up to 33440 measured values per measurement channel
- Stainless steel housing
- Factory calibration certificate: 0 °C, 60 °C, and 134 °C; 100 mbar and 3100 mbar at 25 °C, 3100 mbar at 134 °C
Toote variatsioonid
| Air pressure | Battery/rechargeable battery | Ø sensor | Ø | Dimensions (ØxH) | Height | IP code | Length sensor | Material housing | Max. air pressure | Max. measuring cycle | Min. air pressure | Min. measuring cycle | Catalog number | Resolution | Sensor (ØxL) | Temperature external | Type | Weight | With external sensor | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 ... 4000 mbar | 1 x 3.6 V, Lithium | 1.95 mm | 48 mm | 48 x 32 mm | 32 mm | IP 68 | 40 mm | Stainless steel | 4000 mbar | 24 h | 1 mbar | 250 ms | 4.664 498 | 0.01 °C | 1.95 x 40 mm | 0 ... 150 °C | EBI 12-TP231 | 120 g | Yes | 1.00 |
