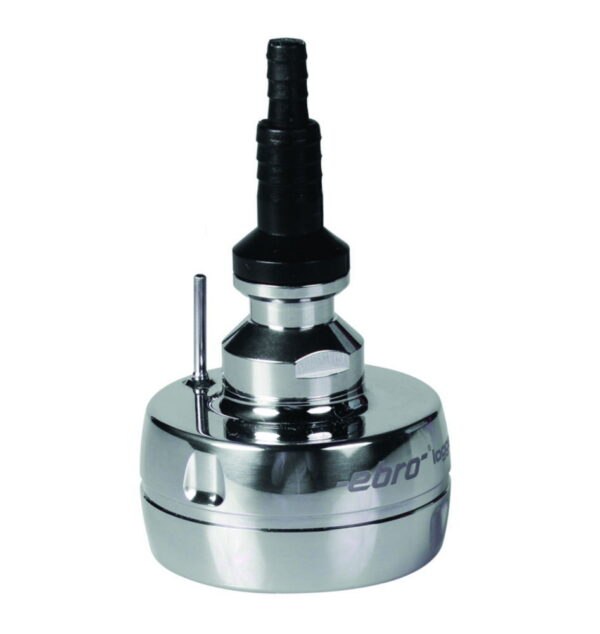

Temperature/pressure data logger EBI 12-TP237
Robust, sterilisable temperature/pressure data logger for process validation and routine or batch control in the washer-disinfector and steam steriliser.
- Hose connection and M10x1 internal thread
- Wireless measurement
- Real-time data transmission
- PT1000 temperature probe and piezoresistive pressure sensor
- Temperature probe rigid, axial
- Memory for up to 2 x 33440 measured values
- Factory calibration certificate: 0 °C, 60 °C, and 134 °C/100 mbar, and 3100 mbar at 25 °C, 3100 mbar at 134 °C
Scope of supply: Temperature/pressure data logger
Toote variatsioonid
| Air pressure | Battery/rechargeable battery | Ø | Dimensions (ØxH) | Height | IP code | Max. air pressure | Max. temperature | Min. air pressure | Min. temperature | Catalog number | Resolution | Temperature | Type | Weight | PK | Ø sensor | Length sensor | Material housing | Max. measuring cycle | Min. measuring cycle | Sensor (ØxL) | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 ... 4000 mbar | 3.6 V, Lithium | 48 mm | 48 x 32 mm | 32 mm | IP 68 | 4000 mbar | 140 °C | 1 mbar | 0 °C | 4.691 835 | 0.01 °C | 0 ... 140 °C | EBI 12-TP237 | 120 g | 1.00 | 1.95 mm | 20 mm | Stainless steel | 24 h | 250 ms | 1.95 x 20 mm |
