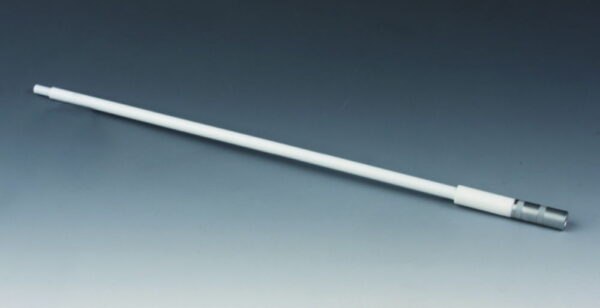

Temperature Probe Lemo-Compact Pt100
Temperature probe with integral Lemo-connector. Particularly useful for measuring temperature in aggressive media (temperature range: -200 °C to +250 °C). The temperature element is located in a stainless steel core which is entirely sealed in a solid and seamless PTFE coating. This provides high chemical resistance and rigidity, however, the probe can be bent manually to the
desired shape. The tip of the probe is narrower (6mm dia.) for faster measurement response.
Connector: 1 x Lemo, size 1, connector with 4 cores. The connector is situated directly at the end of the probe so that it can be used for further applications without removing any cables.
Toote variatsioonid
| Catalog number | PK | Connection plug | Ø | Length | Material | Max. temperature | Min. temperature | Temperature | Type of probe | Usable length | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.243 224 | 1.00 | Lemo | 8 mm | 570 mm | PTFE | 250 °C | -50 °C | -50 ... 250 °C | Pt 100 | 500 mm | ||
| 9.243 222 | 1.00 | Lemo | 8 mm | 370 mm | PTFE | 250 °C | -50 °C | -50 ... 250 °C | Pt 100 | 300 mm | ||
| 9.243 223 | 1.00 | Lemo | 8 mm | 470 mm | PTFE | 250 °C | -50 °C | -50 ... 250 °C | Pt 100 | 400 mm | ||
| 9.243 221 | 1.00 | Lemo | 8 mm | 170 mm | PTFE | 250 °C | -50 °C | -50 ... 250 °C | Pt 100 | 100 mm |
