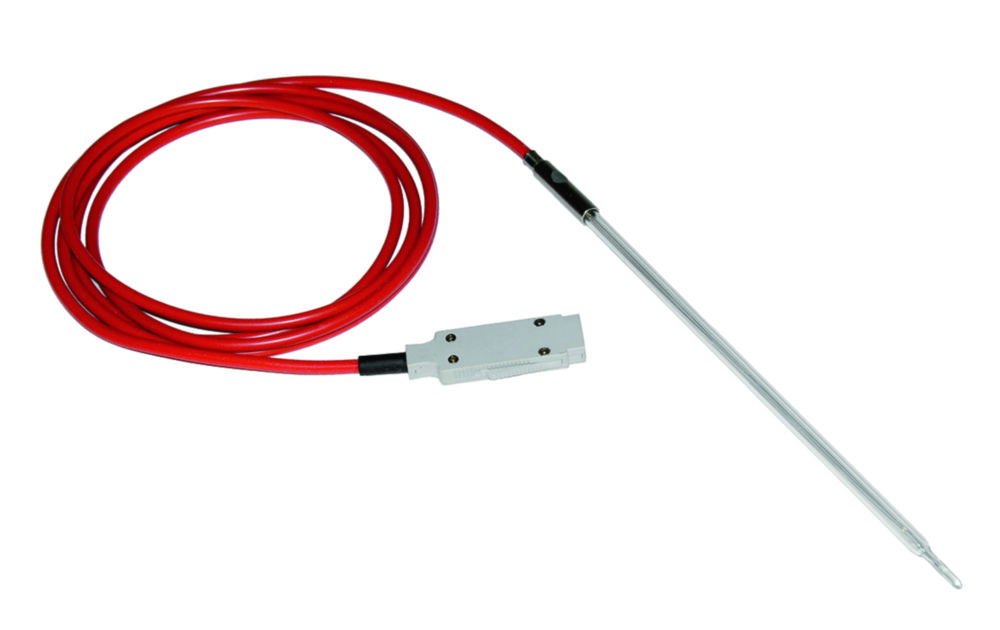

Temperature sensor Pt 100, glass for PHYSICS 1000
- Resistance thermometer, Pt 100, glass, acc. to DIN EN 60751 Class AA, 4-wire connection
- With ring marks on the glass shaft according to the immersion depths of standardised precision glass thermometers
- Glass shaft diam. 6 mm, narrowed at sensor to diam. 3 mm
- Compensation line, teflon/silicone insulated, fix connected through stainless steel transition casing
- Cable outlet secured by means of heat-shrink tubing
- Connection via Physics plug
Toote variatsioonid
| Catalog number | PK | Accuracy class | Cable length | Ø | Length | Max. temperature | Min. temperature | Resolution | Temperature | Type of probe | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.313 340 | 1.00 | AA | 2 m | 3 mm | 250 mm | 250 °C | -50 °C | 0.001 °C | -50 ... 250 °C | Pt 100 |
