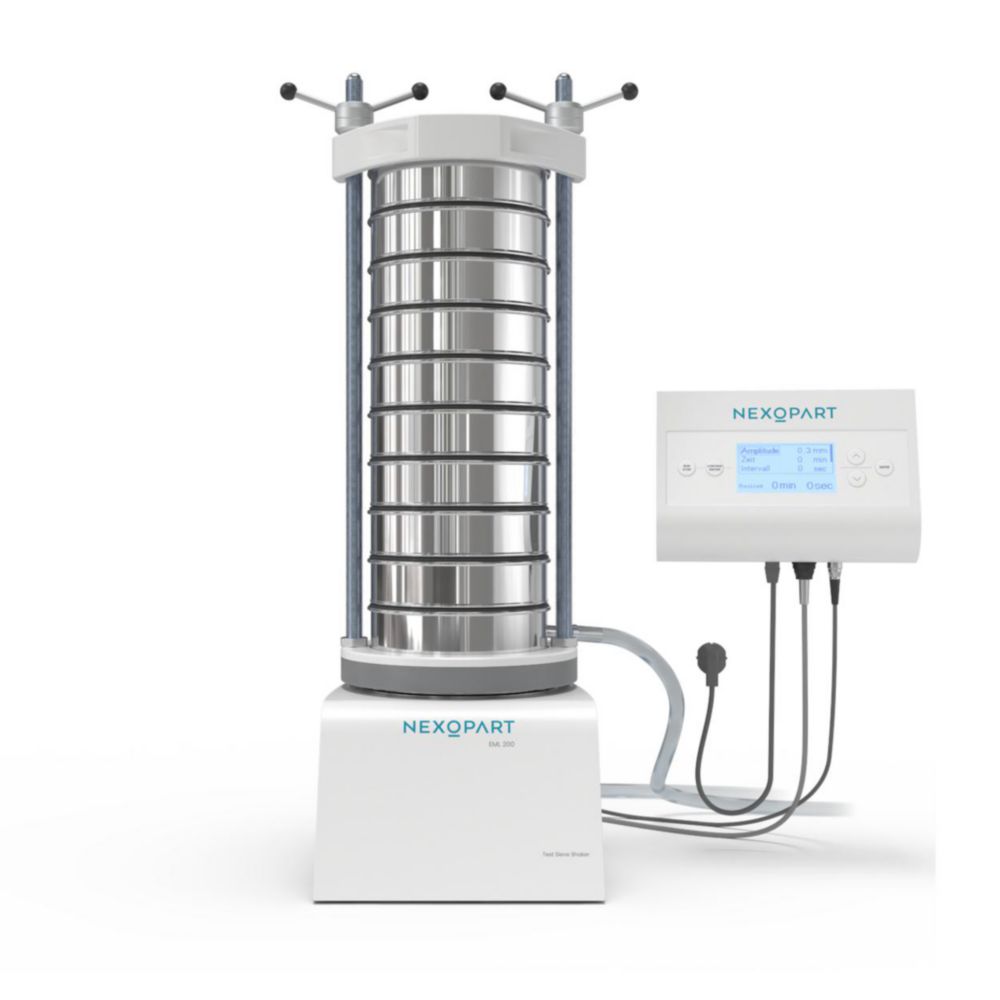

Test Sieve Shaker EML 200 Premium Remote
- Suitable for dry and wet sieving
- Separate control unit
- Cover with integrated full cone nozzle
- With Ethernet interface
- Free amplitude selection up to 3 mm in 0.1 mm steps
- Interval adjustable (1 to 99 seconds)
- Up to 49 programme memory locations
Scope of supply: Test Sieve Shaker, cover with inspection glass and full cone nozzle, clamping system (2 guide rods M20 x 660 mm, 2 clamping nuts), 1 water plug with socket and 2 hose clips, 1 PVC water hose (length 3 m), Basic licence of the evaluation software CSA
- Sieving: Dry and wet
- Measuring range: 20 µm … 125 mm
- Max. quantitiy of sample: 3 kg
- Max. number of sieves: 9 x 50 mm or 15 x 32 mm height
- Dimensions (W x D x H): 385 x 295 x 880 mm
- Weight: 38 kg
- Power supply: 110 … 230 V, 50 … 60 Hz
Toote variatsioonid
| Description | Height mm | Depth mm | Dimensions (W x D x H) mm | Width mm | Weight kg | Type of auxiliary energy | Plug type | max. sample amount g | Dry sieving | Wet sieving | max. number of fractions | max. mass of sieve stack g | min. measuring range mm | max. measuring range mm | Display / Control | Suitable sieve diameter 100 mm | Suitable sieve diameter 150 mm | Suitable sieve diameter 200 mm | Suitable sieve diameter 203 mm | Suitable sieve diameter 305 mm | Suitable sieve diameter 315 mm | Suitable sieve diameter 400 mm | Suitable sieve diameter 450 mm | Suitable sieve diameter 510 mm | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HAVER EML 200 Premium Remote with clamping system Classic | 880 | 295 | 385 x 295 x 880 | 385 | 38 | 110 ... 230 V, 50 ... 60 Hz | EU | 3000 | Yes | Yes | 15 | 8700 | 0.02 | 125 | digital | Yes | Yes | Yes | Yes | No | No | No | No | No | 6.290 168 | 1.00 |
