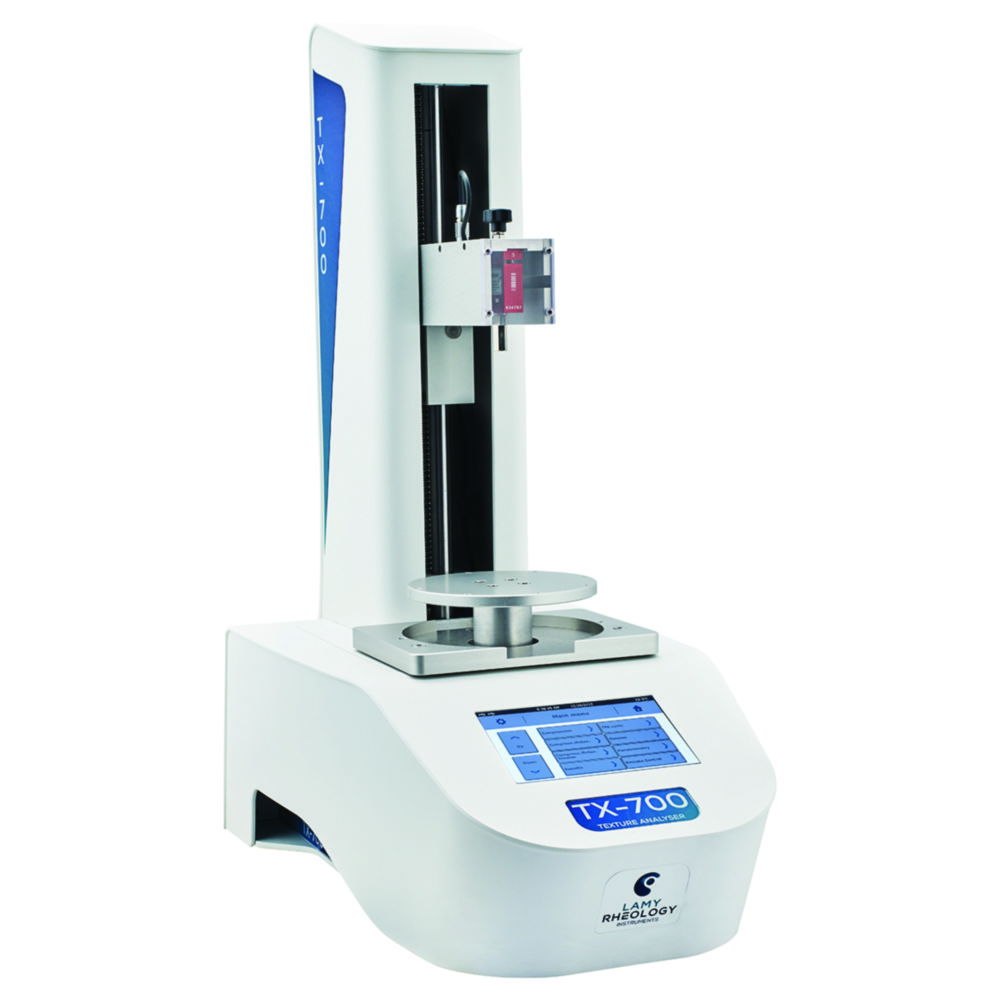

Texture analyser TX-700
The texture analyser TX-700 is a testing device for determining the physical properties of various substances and materials. E.g. the elasticity, the adhesiveness and the strength of substances can be measured. The TX-700 is ideal for your consistent, elastic and adhesive products.
- Wide selection of different test specimens
- Display settings: force, speed, distance, time, temperature, measuring sensor, force sensor
- Units: Gram or Newton
- Measurement modes: Penetration, compression, traction, relaxation, TPA cycle
- Includes PT100 probe for temperature measurement from -50 to 300 °C
- Speed adjustable from 0.1 to 10 mm/s
- RS232 and USB interface
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Display | Height | Max. voltage | Measured range | Min. voltage | Catalog number | Power supply | Travel path | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 610 mm | 340 x 610 x 710 mm | Digital | 710 mm | 240 V·AC | 50 N | 90 V·AC | 4.659 131 | 90 ... 240 V·AC, 50/60 Hz | 200 mm | TX-700 | 25 kg | 340 mm | 1.00 | ||
| 610 mm | 340 x 610 x 710 mm | Digital | 710 mm | 240 V·AC | 100 N | 90 V·AC | 6.324 778 | 90 ... 240 V·AC, 50/60 Hz | 200 mm | TX-700 | 25 kg | 340 mm | 1.00 | ||
| 610 mm | 340 x 610 x 710 mm | Digital | 710 mm | 240 V·AC | 10 N | 90 V·AC | 6.314 052 | 90 ... 240 V·AC, 50/60 Hz | 200 mm | TX-700 | 25 kg | 340 mm | 1.00 | ||
| 610 mm | 340 x 610 x 710 mm | Digital | 710 mm | 240 V·AC | 20 N | 90 V·AC | 6.314 053 | 90 ... 240 V·AC, 50/60 Hz | 200 mm | TX-700 | 25 kg | 340 mm | 1.00 | ||
| 610 mm | 340 x 610 x 710 mm | Digital | 710 mm | 240 V·AC | 500 N | 90 V·AC | 6.314 056 | 90 ... 240 V·AC, 50/60 Hz | 200 mm | TX-700 | 25 kg | 340 mm | 1.00 | ||
| 610 mm | 340 x 610 x 710 mm | Digital | 710 mm | 240 V·AC | 250 N | 90 V·AC | 6.314 055 | 90 ... 240 V·AC, 50/60 Hz | 200 mm | TX-700 | 25 kg | 340 mm | 1.00 |
