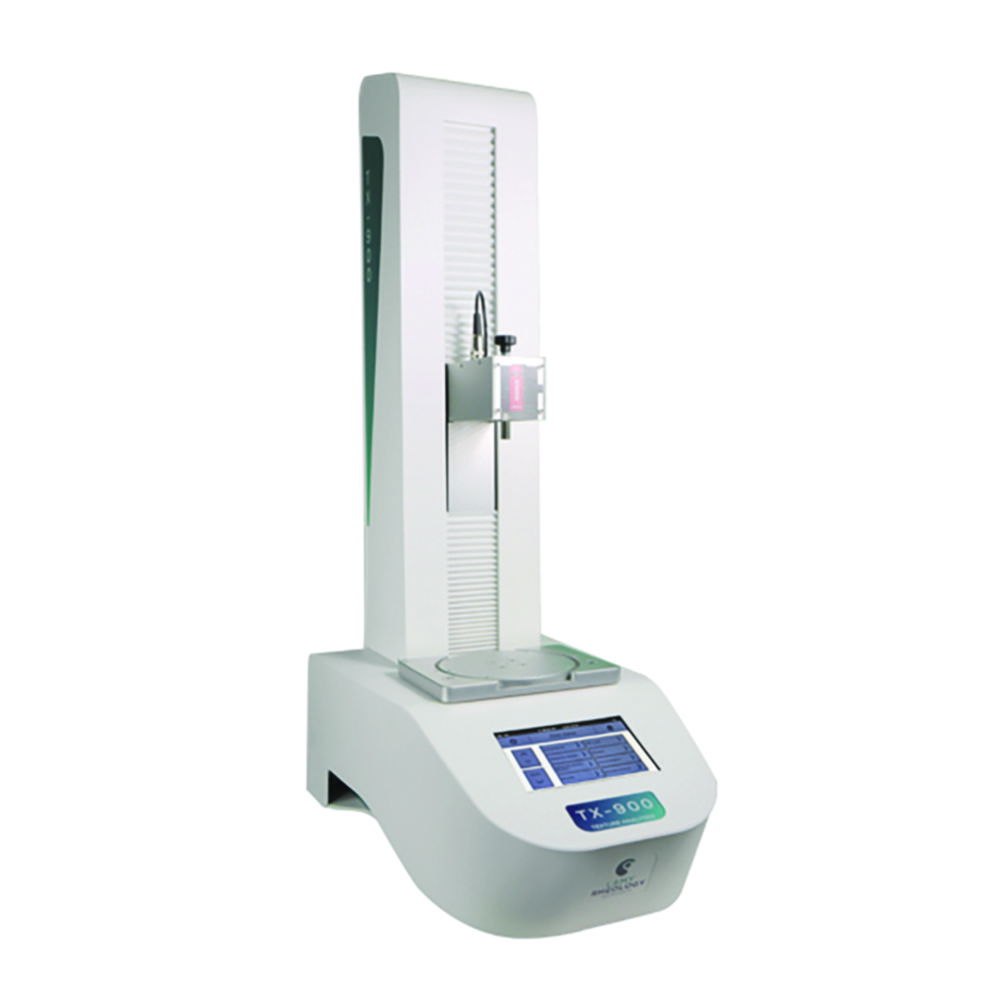

Texture analyser TX-900

The texture analyser is a testing device for determining the physical properties of a wide range of substances and materials. Among other things, the elasticity, adhesion, and strength of materials can be determined. Customised methods can be programmed and saved in the TX-900. Measurements are displayed directly as curves on the large colour touchscreen. Measurement results can be exported and saved on a USB stick.

Large selection of different test specimens

Display settings: Force, speed, distance, time, temperature, measuring sensor, force sensor

Units: Gram or Newton

Measurement modes: Penetration, compression, traction, relaxation, TPA cycle

PT100 probe for temperature measurement from -50 to 300 °C

Speed adjustable from 0.1 to 10 mm/s

RS232 and USB interface

Toote variatsioonid

Depth	Display	Height	Max. voltage	Min. voltage	Catalog number	Travel path	Type	Weight	Width	PK
610 mm	Digital	970 mm	240 V·AC	90 V·AC	6.522 610	400 mm	TX-900	27 kg	340 mm	1.00
610 mm	Digital	970 mm	240 V·AC	90 V·AC	6.522 611	400 mm	TX-900	27 kg	340 mm	1.00
610 mm	Digital	970 mm	240 V·AC	90 V·AC	6.522 614	400 mm	TX-900	27 kg	340 mm	1.00
610 mm	Digital	970 mm	240 V·AC	90 V·AC	6.522 615	400 mm	TX-900	27 kg	340 mm	1.00
610 mm	Digital	970 mm	240 V·AC	90 V·AC	6.522 613	400 mm	TX-900	27 kg	340 mm	1.00
610 mm	Digital	970 mm	240 V·AC	90 V·AC	6.522 612	400 mm	TX-900	27 kg	340 mm	1.00
